2

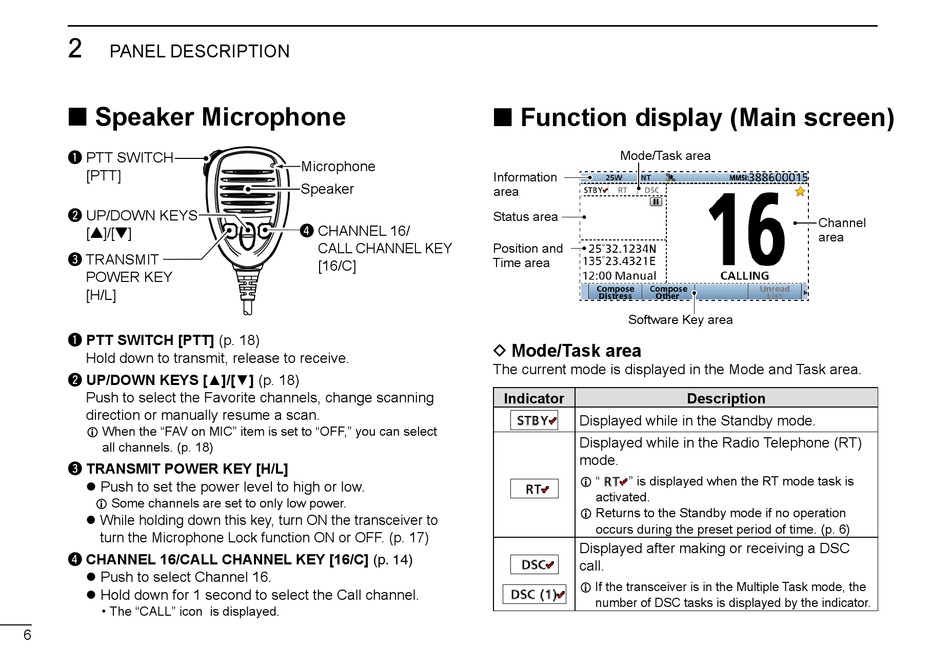

PANEL DESCRIPTION

■ Speaker Microphone

q PTT SWITCH
[PTT]
w UP/DOWN KEYS
[Y]/[Z]
e TRANSMIT
POWER KEY
[H/L]
q PTT SWITCH [PTT] (p. 18)
Hold down to transmit, release to receive.
w UP/DOWN KEYS [▲]/[▼] (p. 18)
Push to select the Favorite channels, change scanning
direction or manually resume a scan.
L When the "FAV on MIC" item is set to "OFF," you can select
all channels. (p. 18)
e TRANSMIT POWER KEY [H/L]
z Push to set the power level to high or low.
L Some channels are set to only low power.
z While holding down this key, turn ON the transceiver to
turn the Microphone Lock function ON or OFF. (p. 17)
r CHANNEL 16/CALL CHANNEL KEY [16/C] (p. 14)
z Push to select Channel 16.
z Hold down for 1 second to select the Call channel.
• The "CALL" icon is displayed.
6
Microphone
Speaker
r CHANNEL 16/
CALL CHANNEL KEY
[16/C]

■ Function display (Main screen)

Mode/Task area
Information
area
Status area
Position and
Time area
Software Key area
D Mode/Task area
The current mode is displayed in the Mode and Task area.
Indicator
Displayed while in the Standby mode.
Displayed while in the Radio Telephone (RT)
mode.
L " " is displayed when the RT mode task is
activated.
L Returns to the Standby mode if no operation
occurs during the preset period of time. (p. 6)
Displayed after making or receiving a DSC
call.
L If the transceiver is in the Multiple Task mode, the
number of DSC tasks is displayed by the indicator.
Channel
area
Description
