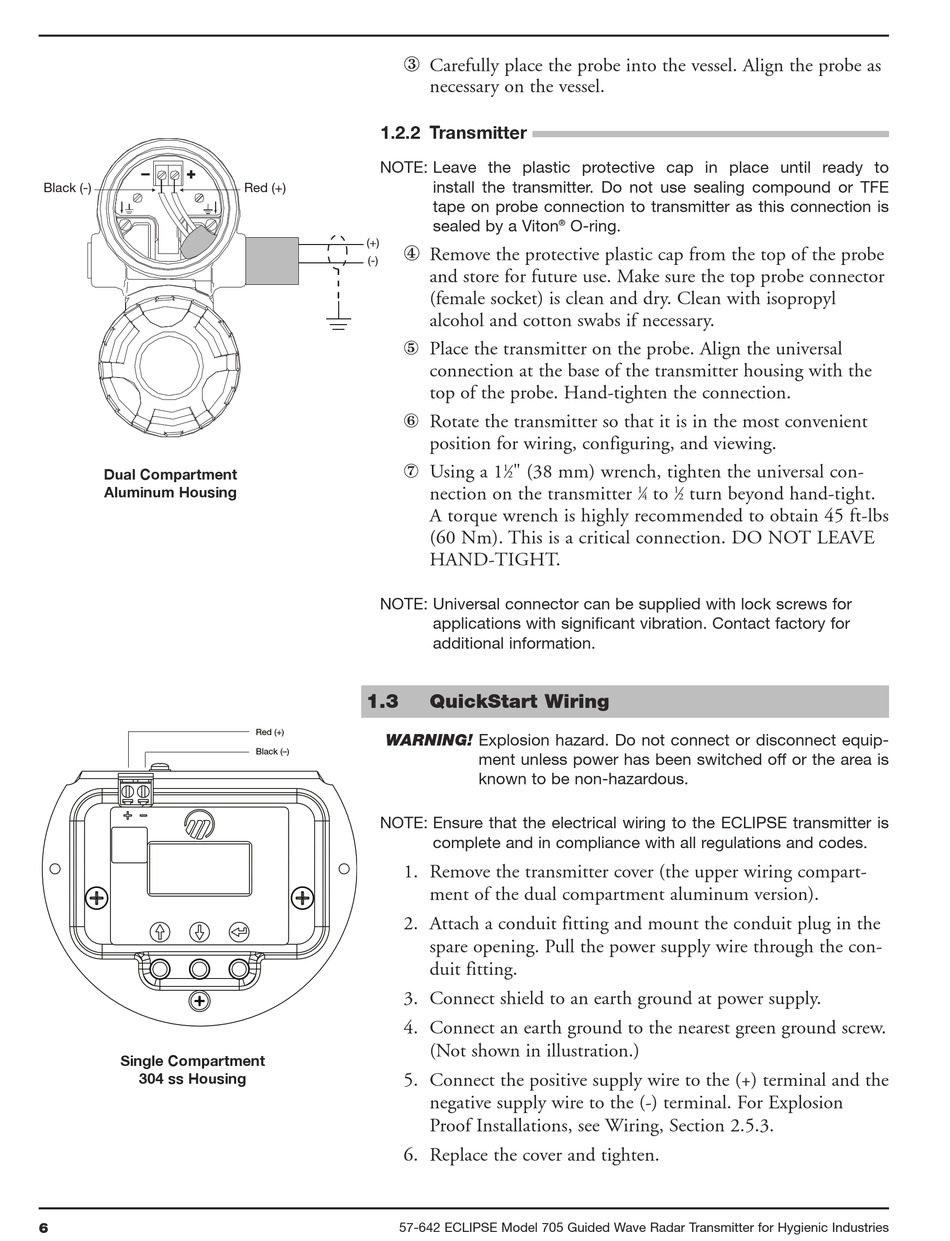

Transmitter; Quickstart Wiring - Magnetrol eclipse Enhanced Model 705 Installation And Operating Manual

Black (-)
Dual Compartment
Aluminum Housing
Single Compartment
304 ss Housing
6
Æ

1.2.2 Transmitter

NOTE: Leave the plastic protective cap in place until ready to
Red (+)
Ø
(+)
(-)
∞ Place the transmitter on the probe. Align the universal
± Rotate the transmitter so that it is in the most convenient
≤ Using a 1
NOTE: Universal connector can be supplied with lock screws for
1.3
Red (+)
W RNING! Explosion hazard. Do not connect or disconnect equip-
Black (–)
NOTE: Ensure that the electrical wiring to the ECLIPSE transmitter is
1. Remove the transmitter cover (the upper wiring compart-
2. Attach a conduit fitting and mount the conduit plug in the
3. Connect shield to an earth ground at power supply.
4. Connect an earth ground to the nearest green ground screw.
5. Connect the positive supply wire to the (+) terminal and the
6. Replace the cover and tighten.
57-642 ECLIPSE Model 705 Guided Wave Radar Transmitter for Hygienic Industries
Carefully place the probe into the vessel. Align the probe as
necessary on the vessel.
install the transmitter. Do not use sealing compound or TFE
tape on probe connection to transmitter as this connection is
sealed by a Viton ® O-ring.
Remove the protective plastic cap from the top of the probe
and store for future use. Make sure the top probe connector
(female socket) is clean and dry. Clean with isopropyl
alcohol and cotton swabs if necessary.
connection at the base of the transmitter housing with the
top of the probe. Hand-tighten the connection.
position for wiring, configuring, and viewing.
1 ⁄ " (38 mm) wrench, tighten the universal con-
2
nection on the transmitter
A torque wrench is highly recommended to obtain 45 ft-lbs
(60 Nm). This is a critical connection. DO NOT LEAVE
HAND-TIGHT.
applications with significant vibration. Contact factory for
additional information.

QuickStart Wiring

ment unless power has been switched off or the area is
known to be non-hazardous.
complete and in compliance with all regulations and codes.
ment of the dual compartment aluminum version).
spare opening. Pull the power supply wire through the con-
duit fitting.
(Not shown in illustration.)
negative supply wire to the (-) terminal. For Explosion
Proof Installations, see Wiring, Section 2.5.3.
1 ⁄ to 1 ⁄ turn beyond hand-tight.
