5.3

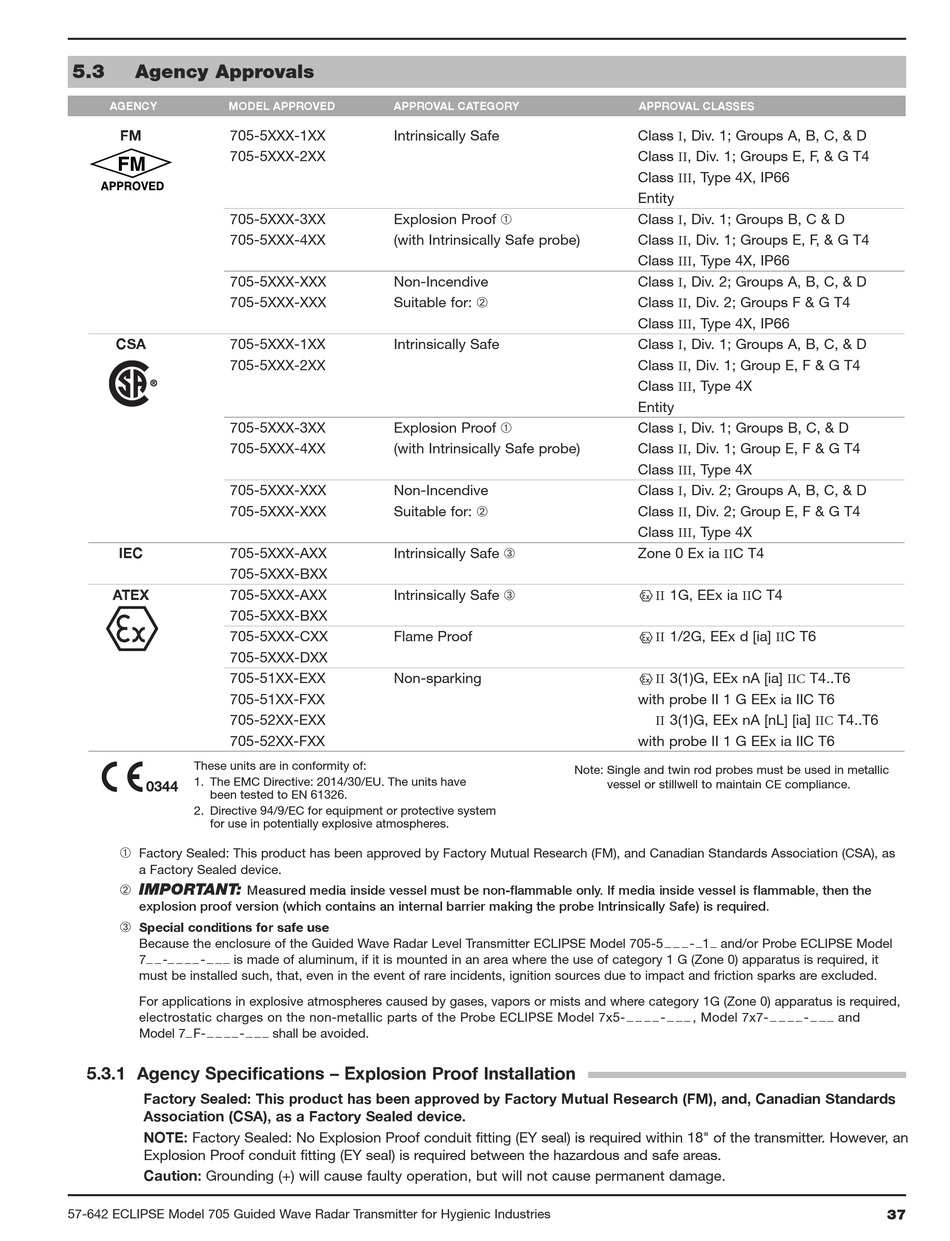

Agency Approvals

AGENCY MODEL APPROVED
FM
705-5XXX-1XX
705-5XXX-2XX
705-5XXX-3XX
705-5XXX-4XX
705-5XXX-XXX
705-5XXX-XXX
CSA
705-5XXX-1XX
705-5XXX-2XX
705-5XXX-3XX
705-5XXX-4XX
705-5XXX-XXX
705-5XXX-XXX
IEC
705-5XXX-AXX
705-5XXX-BXX
ATEX
705-5XXX-AXX
705-5XXX-BXX
705-5XXX-CXX
705-5XXX-DXX
705-51XX-EXX
705-51XX-FXX
705-52XX-EXX
705-52XX-FXX
These units are in conformity of:
1. The EMC Directive: 2014/30/EU. The units have
0344
been tested to EN 61326.
2. Directive 94/9/EC for equipment or protective system
for use in potentially explosive atmospheres.
➀
Factory Sealed: This product has been approved by Factory Mutual Research (FM), and Canadian Standards Association (CSA), as
a Factory Sealed device.
➁
IMPORT NT:
explosion proof version (which contains an internal barrier making the probe Intrinsically Safe) is required.
➂
Special conditions for safe use
Because the enclosure of the Guided Wave Radar Level Transmitter ECLIPSE Model 705-5 _ _ _ - _ 1 _ and/or Probe ECLIPSE Model
7 _ _ - _ _ _ _ - _ _ _ is made of aluminum, if it is mounted in an area where the use of category 1 G (Zone 0) apparatus is required, it
must be installed such, that, even in the event of rare incidents, ignition sources due to impact and friction sparks are excluded.
For applications in explosive atmospheres caused by gases, vapors or mists and where category 1G (Zone 0) apparatus is required,
electrostatic charges on the non-metallic parts of the Probe ECLIPSE Model 7x5- _ _ _ _ - _ _ _ , Model 7x7- _ _ _ _ - _ _ _ and
Model 7 _ F- _ _ _ _ - _ _ _ shall be avoided.
5.3.1 Agency Specifications – Explosion Proof Installation
Factory Sealed: This product has been approved by Factory Mutual Research (FM), and, Canadian Standards
Association (CSA), as a Factory Sealed device.
NOTE: Factory Sealed: No Explosion Proof conduit fitting (EY seal) is required within 18" of the transmitter. However, an
Explosion Proof conduit fitting (EY seal) is required between the hazardous and safe areas.
Caution: Grounding (+) will cause faulty operation, but will not cause permanent damage.
57-642 ECLIPSE Model 705 Guided Wave Radar Transmitter for Hygienic Industries
APPROVAL CATEGORY
Intrinsically Safe
Explosion Proof ➀
(with Intrinsically Safe probe)
Non-Incendive
Suitable for: ➁
Intrinsically Safe
Explosion Proof ➀
(with Intrinsically Safe probe)
Non-Incendive
Suitable for: ➁
Intrinsically Safe ➂
Intrinsically Safe ➂
Flame Proof
Non-sparking
Measured media inside vessel must be non-flammable only. If media inside vessel is flammable, then the
APPROVAL CLASSES
Class I, Div. 1; Groups A, B, C, & D
Class II, Div. 1; Groups E, F, & G T4
Class III, Type 4X, IP66
Entity
Class I, Div. 1; Groups B, C & D
Class II, Div. 1; Groups E, F, & G T4
Class III, Type 4X, IP66
Class I, Div. 2; Groups A, B, C, & D
Class II, Div. 2; Groups F & G T4
Class III, Type 4X, IP66
Class I, Div. 1; Groups A, B, C, & D
Class II, Div. 1; Group E, F & G T4
Class III, Type 4X
Entity
Class I, Div. 1; Groups B, C, & D
Class II, Div. 1; Group E, F & G T4
Class III, Type 4X
Class I, Div. 2; Groups A, B, C, & D
Class II, Div. 2; Group E, F & G T4
Class III, Type 4X
Zone 0 Ex ia IIC T4
II 1G, EEx ia IIC T4
II 1/2G, EEx d [ia] IIC T6
II 3(1)G, EEx nA [ia] IIC T4..T6
with probe II 1 G EEx ia IIC T6
II 3(1)G, EEx nA [nL] [ia] IIC T4..T6
with probe II 1 G EEx ia IIC T6
Note: Single and twin rod probes must be used in metallic
vessel or stillwell to maintain CE compliance.
