5.2

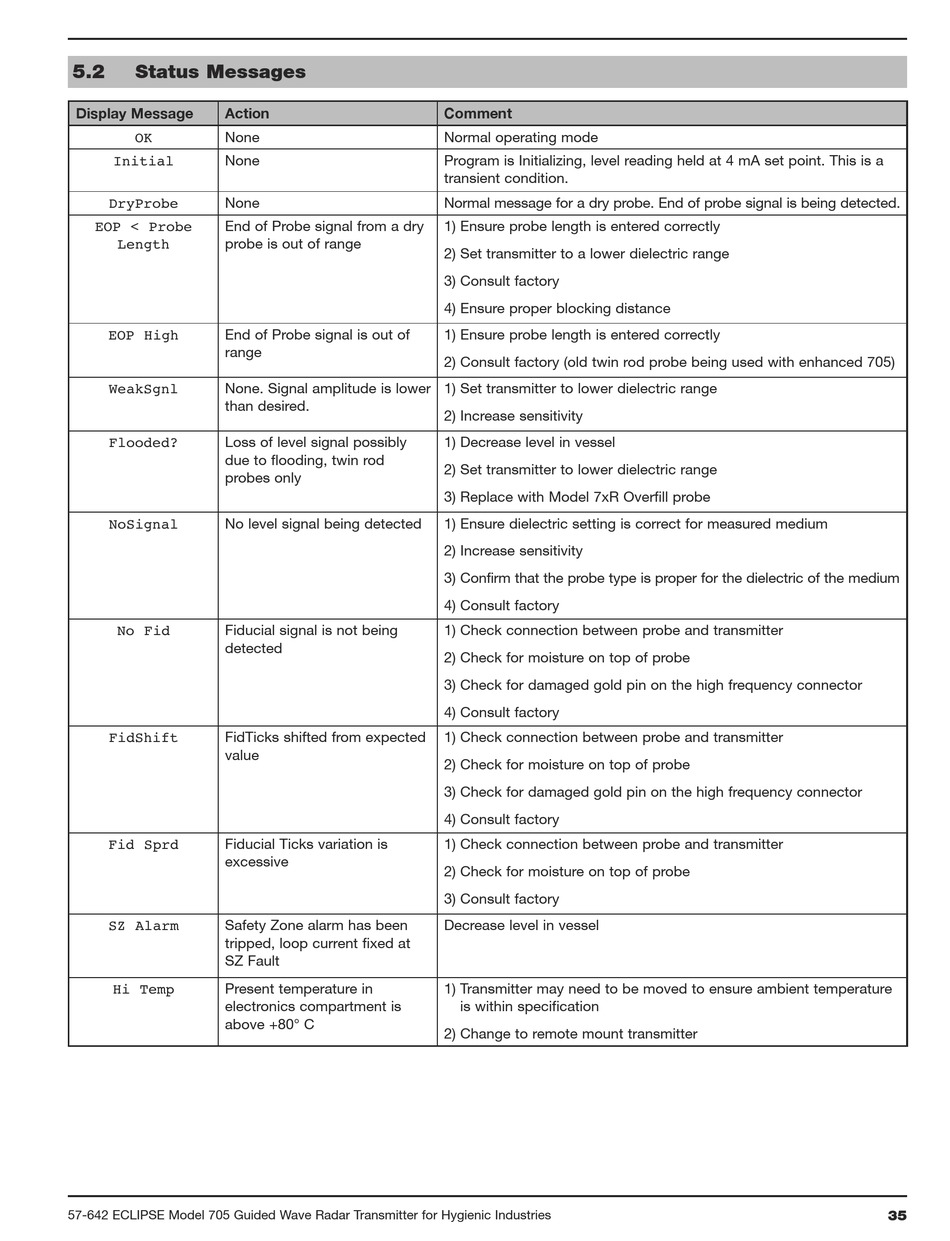

Status Messages

Display Message Action
OK
None
Initial
None
DryProbe
None
EOP < Probe
Length
End of Probe signal from a dry
probe is out of range
EOP High
End of Probe signal is out of
range
WeakSgnl
None. Signal amplitude is lower
than desired.
Flooded?
Loss of level signal possibly
due to flooding, twin rod
probes only
NoSignal
No level signal being detected
No Fid
Fiducial signal is not being
detected
FidShift
FidTicks shifted from expected
value
Fid Sprd
Fiducial Ticks variation is
excessive
SZ Alarm
Safety Zone alarm has been
tripped, loop current fixed at
SZ Fault
Hi Temp
Present temperature in
electronics compartment is
above +80° C
57-642 ECLIPSE Model 705 Guided Wave Radar Transmitter for Hygienic Industries
Comment
Normal operating mode
Program is Initializing, level reading held at 4 mA set point. This is a
transient condition.
Normal message for a dry probe. End of probe signal is being detected.
1) Ensure probe length is entered correctly
2) Set transmitter to a lower dielectric range
3) Consult factory
4) Ensure proper blocking distance
1) Ensure probe length is entered correctly
2) Consult factory (old twin rod probe being used with enhanced 705)
1) Set transmitter to lower dielectric range
2) Increase sensitivity
1) Decrease level in vessel
2) Set transmitter to lower dielectric range
3) Replace with Model 7xR Overfill probe
1) Ensure dielectric setting is correct for measured medium
2) Increase sensitivity
3) Confirm that the probe type is proper for the dielectric of the medium
4) Consult factory
1) Check connection between probe and transmitter
2) Check for moisture on top of probe
3) Check for damaged gold pin on the high frequency connector
4) Consult factory
1) Check connection between probe and transmitter
2) Check for moisture on top of probe
3) Check for damaged gold pin on the high frequency connector
4) Consult factory
1) Check connection between probe and transmitter
2) Check for moisture on top of probe
3) Consult factory
Decrease level in vessel
1) Transmitter may need to be moved to ensure ambient temperature
is within specification
2) Change to remote mount transmitter
35
