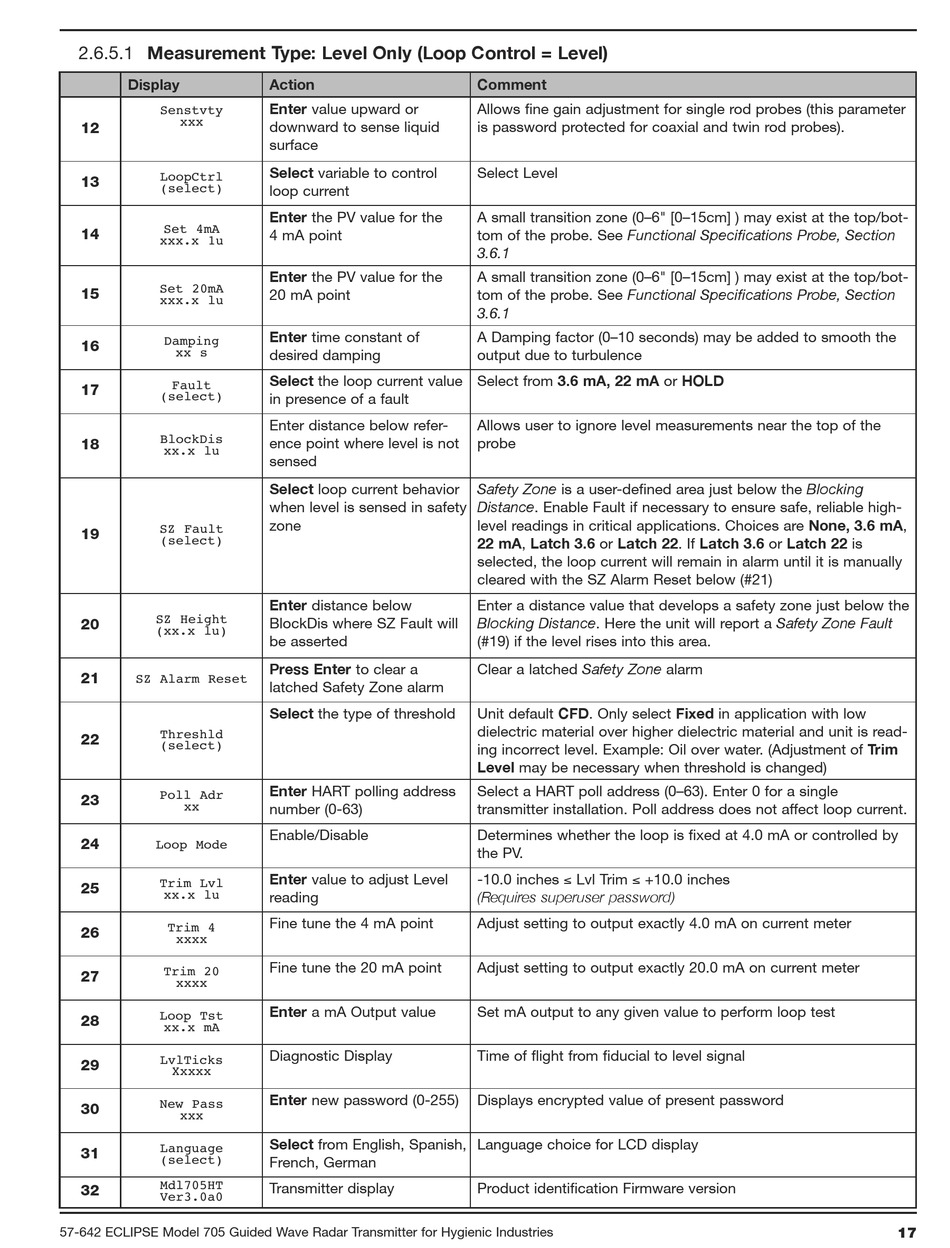

2.6.5.1 Measurement Type: Level Only (Loop Control = Level)
Display
Senstvty
xxx
12
LoopCtrl
(select)
13
Set 4mA
xxx.x 1u
14
Set 20mA
xxx.x lu
15
Damping
xx s
16
Fault
(select)
17
BlockDis
xx.x lu
1
SZ Fault
(select)
19
SZ Height
(xx.x lu)
20
SZ Alarm Reset
21
Threshld
(select)
22
Poll Adr
xx
23
Loop Mode
24
Trim Lvl
xx.x lu
25
Trim 4
xxxx
26
Trim 20
xxxx
27
Loop Tst
xx.x mA
2
LvlTicks
Xxxxx
29
New Pass
xxx
30
Language
(select)
31
Mdl705HT
Ver3.0a0
32
57-642 ECLIPSE Model 705 Guided Wave Radar Transmitter for Hygienic Industries
Action
Enter value upward or
downward to sense liquid
surface
Select variable to control
loop current
Enter the PV value for the
4 mA point
Enter the PV value for the
20 mA point
Enter time constant of
desired damping
Select the loop current value
in presence of a fault
Enter distance below refer-
ence point where level is not
sensed
Select loop current behavior
when level is sensed in safety
zone
Enter distance below
BlockDis where SZ Fault will
be asserted
Press Enter to clear a
latched Safety Zone alarm
Select the type of threshold
Enter HART polling address
number (0-63)
Enable/Disable
Enter value to adjust Level
reading
Fine tune the 4 mA point
Fine tune the 20 mA point
Enter a mA Output value
Diagnostic Display
Enter new password (0-255)
Select from English, Spanish,
French, German
Transmitter display
Comment
Allows fine gain adjustment for single rod probes (this parameter
is password protected for coaxial and twin rod probes).
Select Level
A small transition zone (0–6" [0–15cm] ) may exist at the top/bot-
tom of the probe. See Functional Specifications Probe, Section
3.6.1
A small transition zone (0–6" [0–15cm] ) may exist at the top/bot-
tom of the probe. See Functional Specifications Probe, Section
3.6.1
A Damping factor (0–10 seconds) may be added to smooth the
output due to turbulence
Select from 3.6 mA, 22 mA or HOLD
Allows user to ignore level measurements near the top of the
probe
Safety Zone is a user-defined area just below the Blocking
Distance. Enable Fault if necessary to ensure safe, reliable high-
level readings in critical applications. Choices are None, 3.6 mA,
22 mA, Latch 3.6 or Latch 22. If Latch 3.6 or Latch 22 is
selected, the loop current will remain in alarm until it is manually
cleared with the SZ Alarm Reset below (#21)
Enter a distance value that develops a safety zone just below the
Blocking Distance. Here the unit will report a Safety Zone Fault
(#19) if the level rises into this area.
Clear a latched Safety Zone alarm
Unit default CFD. Only select Fixed in application with low
dielectric material over higher dielectric material and unit is read-
ing incorrect level. Example: Oil over water. (Adjustment of Trim
Level may be necessary when threshold is changed)
Select a HART poll address (0–63). Enter 0 for a single
transmitter installation. Poll address does not affect loop current.
Determines whether the loop is fixed at 4.0 mA or controlled by
the PV.
-10.0 inches ≤ Lvl Trim ≤ +10.0 inches
(Requires superuser password)
Adjust setting to output exactly 4.0 mA on current meter
Adjust setting to output exactly 20.0 mA on current meter
Set mA output to any given value to perform loop test
Time of flight from fiducial to level signal
Displays encrypted value of present password
Language choice for LCD display
Product identification Firmware version
