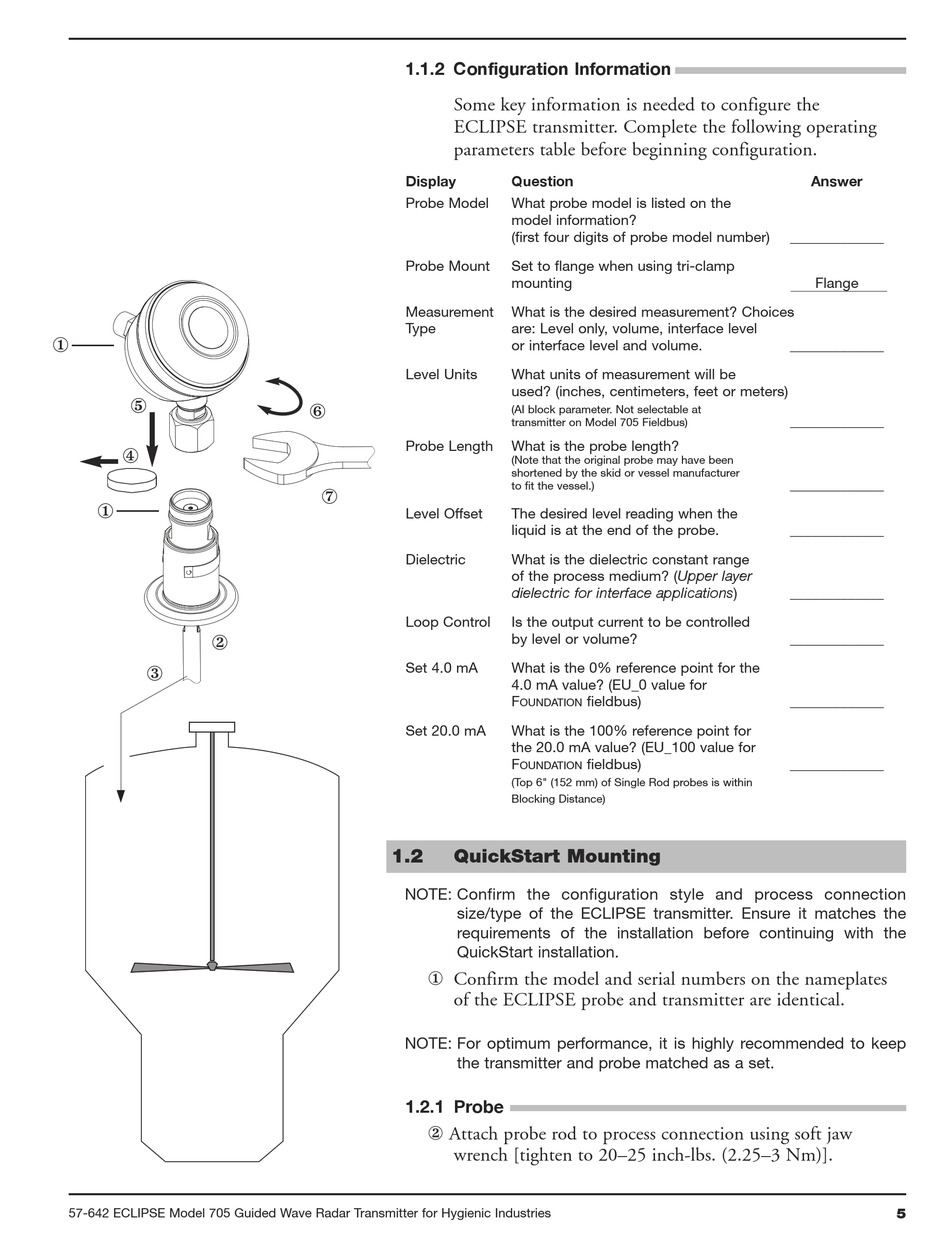

57-642 ECLIPSE Model 705 Guided Wave Radar Transmitter for Hygienic Industries

1.1.2 Configuration Information

Some key information is needed to configure the
ECLIPSE transmitter. Complete the following operating
parameters table before beginning configuration.
Display
Probe Model
Probe Mount
Measurement
Type
Level Units
±
Probe Length
Level Offset
Dielectric
Loop Control
Set 4.0 mA
Set 20.0 mA
1.2

QuickStart Mounting

NOTE: Confirm the configuration style and process connection
size/type of the ECLIPSE transmitter. Ensure it matches the
requirements of the installation before continuing with the
QuickStart installation.
① Confirm the model and serial numbers on the nameplates
of the ECLIPSE probe and transmitter are identical.
NOTE: For optimum performance, it is highly recommended to keep
the transmitter and probe matched as a set.

1.2.1 Probe

② Attach probe rod to process connection using soft jaw
wrench [tighten to 20–25 inch-lbs. (2.25–3 Nm)].
Question
What probe model is listed on the
model information?
(first four digits of probe model number)
Set to flange when using tri-clamp
mounting
What is the desired measurement? Choices
are: Level only, volume, interface level
or interface level and volume.
What units of measurement will be
used? (inches, centimeters, feet or meters)
(AI block parameter. Not selectable at
transmitter on Model 705 Fieldbus)
What is the probe length?
(Note that the original probe may have been
shortened by the skid or vessel manufacturer
to fit the vessel.)
The desired level reading when the
liquid is at the end of the probe.
What is the dielectric constant range
of the process medium? (Upper layer
dielectric for interface applications)
Is the output current to be controlled
by level or volume?
What is the 0% reference point for the
4.0 mA value? (EU_0 value for
F
fieldbus)
OUNDATION
What is the 100% reference point for
the 20.0 mA value? (EU_100 value for
F
fieldbus)
OUNDATION
(Top 6" (152 mm) of Single Rod probes is within
Blocking Distance)
Answer
_____________
Flange
_____________
_____________
_____________
_____________
_____________
_____________
_____________
_____________
5
