Model 705 Menu: Step-By-Step Procedure; Measurement Type: Level Only - Magnetrol eclipse Enhanced Model 705 Installation And Operating Manual

2.6.5.1 Measurement Type: Level Only (Loop Control = Level)
Display
*Status*
*Level *
*% Out *
* Loop *
1
Level
xxx.x
2
% Output
xx.x%
3
Loop
xx.xx mA
4
PrbModel
(select)
5
PrbMount
(select)
6
MeasType
(select)
7
LvlUnits
(select)
Probe Ln
xxx.x
9
Lvl Ofst
xxx.x
10
Dielctrc
(select)
11
16

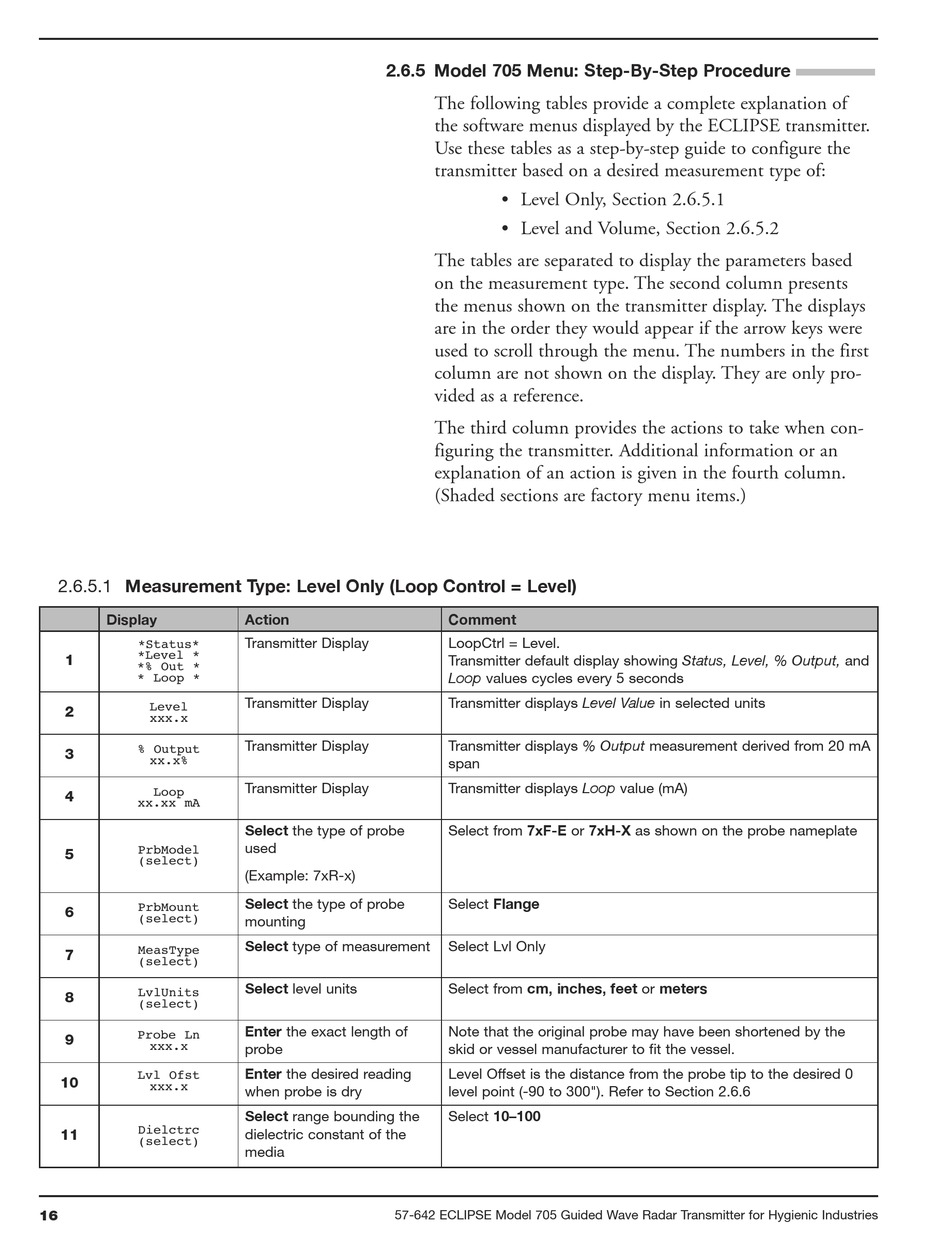

2.6.5 Model 705 Menu: Step-By-Step Procedure

Action
Transmitter Display
Transmitter Display
Transmitter Display
Transmitter Display
Select the type of probe
used
(Example: 7xR-x)
Select the type of probe
mounting
Select type of measurement
Select level units
Enter the exact length of
probe
Enter the desired reading
when probe is dry
Select range bounding the
dielectric constant of the
media
57-642 ECLIPSE Model 705 Guided Wave Radar Transmitter for Hygienic Industries
The following tables provide a complete explanation of
the software menus displayed by the ECLIPSE transmitter.
Use these tables as a step-by-step guide to configure the
transmitter based on a desired measurement type of:
• Level Only, Section 2.6.5.1
• Level and Volume, Section 2.6.5.2
The tables are separated to display the parameters based
on the measurement type. The second column presents
the menus shown on the transmitter display. The displays
are in the order they would appear if the arrow keys were
used to scroll through the menu. The numbers in the first
column are not shown on the display. They are only pro-
vided as a reference.
The third column provides the actions to take when con-
figuring the transmitter. Additional information or an
explanation of an action is given in the fourth column.
(Shaded sections are factory menu items.)
Comment
LoopCtrl = Level.
Transmitter default display showing Status, Level, % Output, and
Loop values cycles every 5 seconds
Transmitter displays Level Value in selected units
Transmitter displays % Output measurement derived from 20 mA
span
Transmitter displays Loop value (mA)
Select from 7xF-E or 7xH-X as shown on the probe nameplate
Select Flange
Select Lvl Only
Select from cm, inches, feet or meters
Note that the original probe may have been shortened by the
skid or vessel manufacturer to fit the vessel.
Level Offset is the distance from the probe tip to the desired 0
level point (-90 to 300"). Refer to Section 2.6.6
Select 10–100
