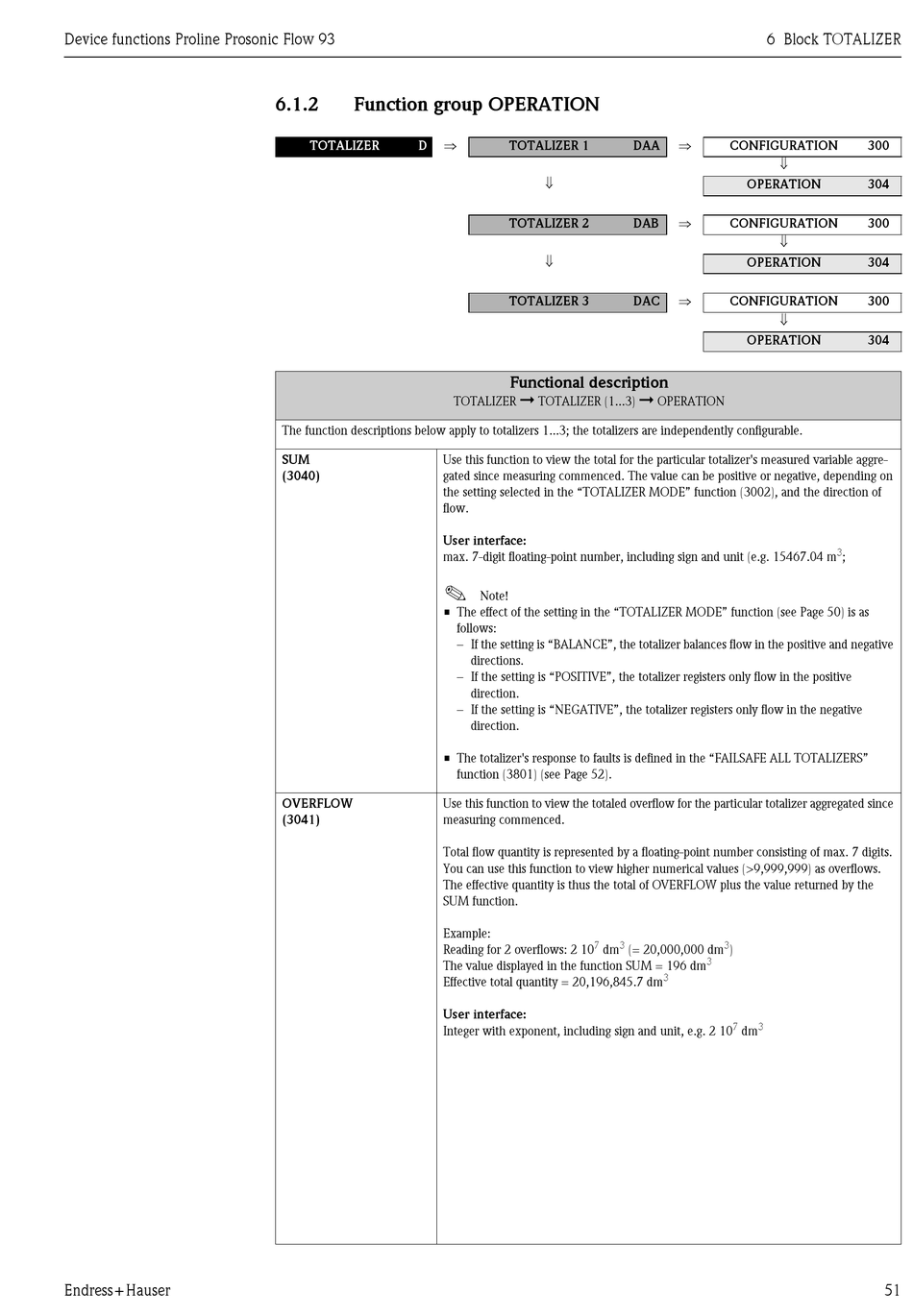

Function group OPERATION

⇒
TOTALIZER D
The function descriptions below apply to totalizers 1...3; the totalizers are independently configurable.
SUM Use this function to view the total for the particular totalizer's measured variable aggre-
(3040) gated since measuring commenced. The value can be positive or negative, depending on
the setting selected in the "TOTALIZER MODE" function (3002), and the direction of
flow.
User interface:
max. 7-digit floating-point number, including sign and unit (e.g. 15467.04 m
!
• The effect of the setting in the "TOTALIZER MODE" function (see Page 50) is as
• The totalizer's response to faults is defined in the "FAILSAFE ALL TOTALIZERS"
OVERFLOW Use this function to view the totaled overflow for the particular totalizer aggregated since
(3041) measuring commenced.
Total flow quantity is represented by a floating-point number consisting of max. 7 digits.
You can use this function to view higher numerical values (>9,999,999) as overflows.
The effective quantity is thus the total of OVERFLOW plus the value returned by the
SUM function.
Example:
Reading for 2 overflows: 2 10
The value displayed in the function SUM = 196 dm
Effective total quantity = 20,196,845.7 dm
User interface:
Integer with exponent, including sign and unit, e.g. 2 10
TOTALIZER 1
⇓
TOTALIZER 2
⇓
TOTALIZER 3
Functional description
➞
TOTALIZER TOTALIZER (1...3)
Note!
follows:
– If the setting is "BALANCE", the totalizer balances flow in the positive and negative
directions.
– If the setting is "POSITIVE", the totalizer registers only flow in the positive
direction.
– If the setting is "NEGATIVE", the totalizer registers only flow in the negative
direction.
function (3801) (see Page 52).
7 3
dm
6 Block TOTALIZER
⇒
DAA CONFIGURATION
⇓
OPERATION
⇒
DAB CONFIGURATION
⇓
OPERATION
⇒
DAC CONFIGURATION
⇓
OPERATION
➞
OPERATION
3
(= 20,000,000 dm )
3
3
7 3
dm
300
304
300
304
300
304
3
;
