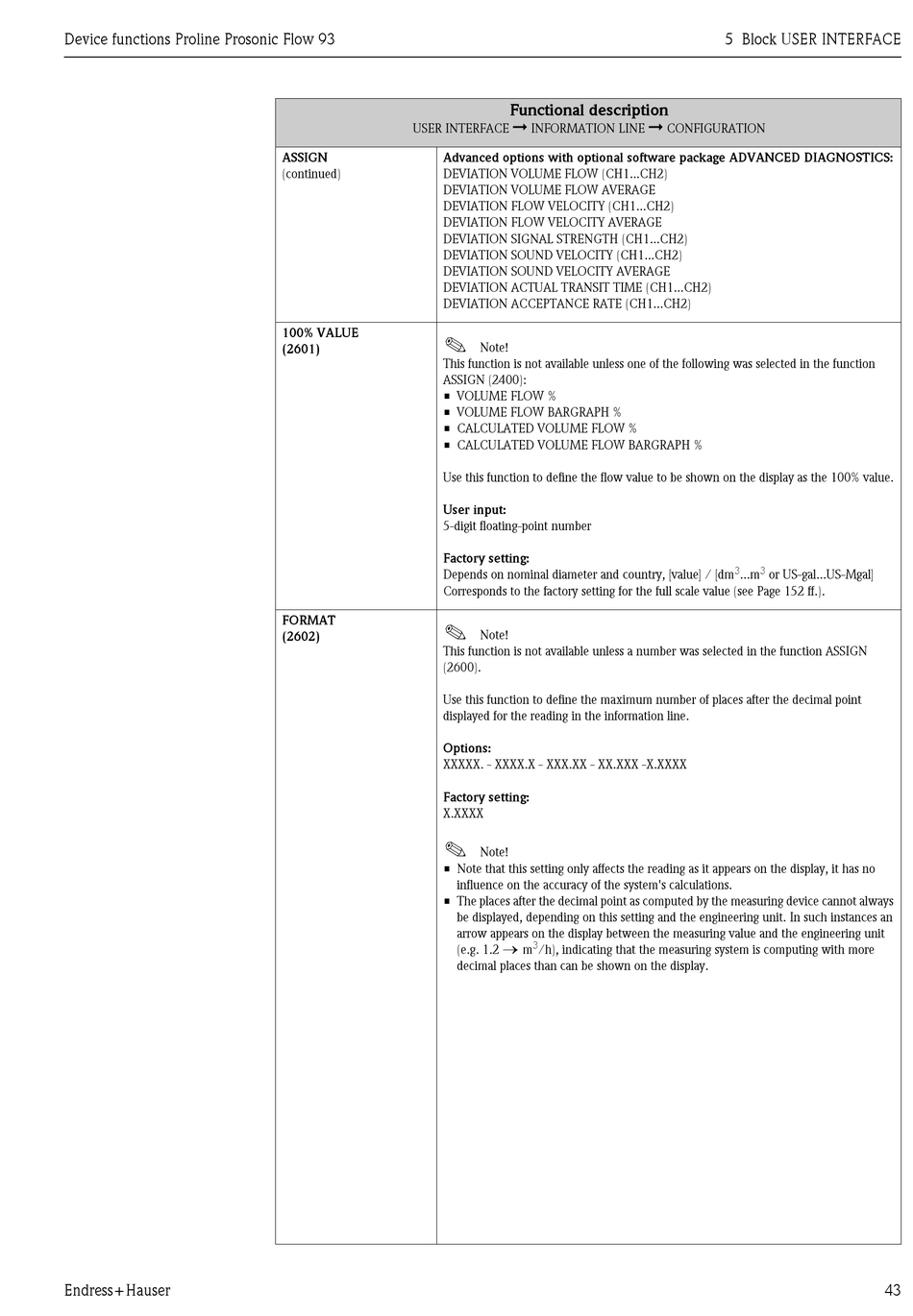

Device functions Proline Prosonic Flow 93
Endress+Hauser
USER INTERFACE
ASSIGN Advanced options with optional software package ADVANCED DIAGNOSTICS:
(continued) DEVIATION VOLUME FLOW (CH1...CH2)
DEVIATION VOLUME FLOW AVERAGE
DEVIATION FLOW VELOCITY (CH1...CH2)
DEVIATION FLOW VELOCITY AVERAGE
DEVIATION SIGNAL STRENGTH (CH1...CH2)
DEVIATION SOUND VELOCITY (CH1...CH2)
DEVIATION SOUND VELOCITY AVERAGE
DEVIATION ACTUAL TRANSIT TIME (CH1...CH2)
DEVIATION ACCEPTANCE RATE (CH1...CH2)
100% VALUE
!
(2601)
This function is not available unless one of the following was selected in the function
ASSIGN (2400):
• VOLUME FLOW %
• VOLUME FLOW BARGRAPH %
• CALCULATED VOLUME FLOW %
• CALCULATED VOLUME FLOW BARGRAPH %
Use this function to define the flow value to be shown on the display as the 100% value.
User input:
5-digit floating-point number
Factory setting:
Depends on nominal diameter and country, [value] / [dm
Corresponds to the factory setting for the full scale value (see Page 152 ff.).
FORMAT
!
(2602)
This function is not available unless a number was selected in the function ASSIGN
(2600).
Use this function to define the maximum number of places after the decimal point
displayed for the reading in the information line.
Options:
XXXXX. - XXXX.X - XXX.XX - XX.XXX -X.XXXX
Factory setting:
X.XXXX
!
• Note that this setting only affects the reading as it appears on the display, it has no
• The places after the decimal point as computed by the measuring device cannot always
Functional description
➞
INFORMATION LINE
Note!
Note!
Note!
influence on the accuracy of the system's calculations.
be displayed, depending on this setting and the engineering unit. In such instances an
arrow appears on the display between the measuring value and the engineering unit
→
3
(e.g. 1.2 m /h), indicating that the measuring system is computing with more
decimal places than can be shown on the display.
5 Block USER INTERFACE
➞
CONFIGURATION
3 3
...m or US-gal...US-Mgal]
