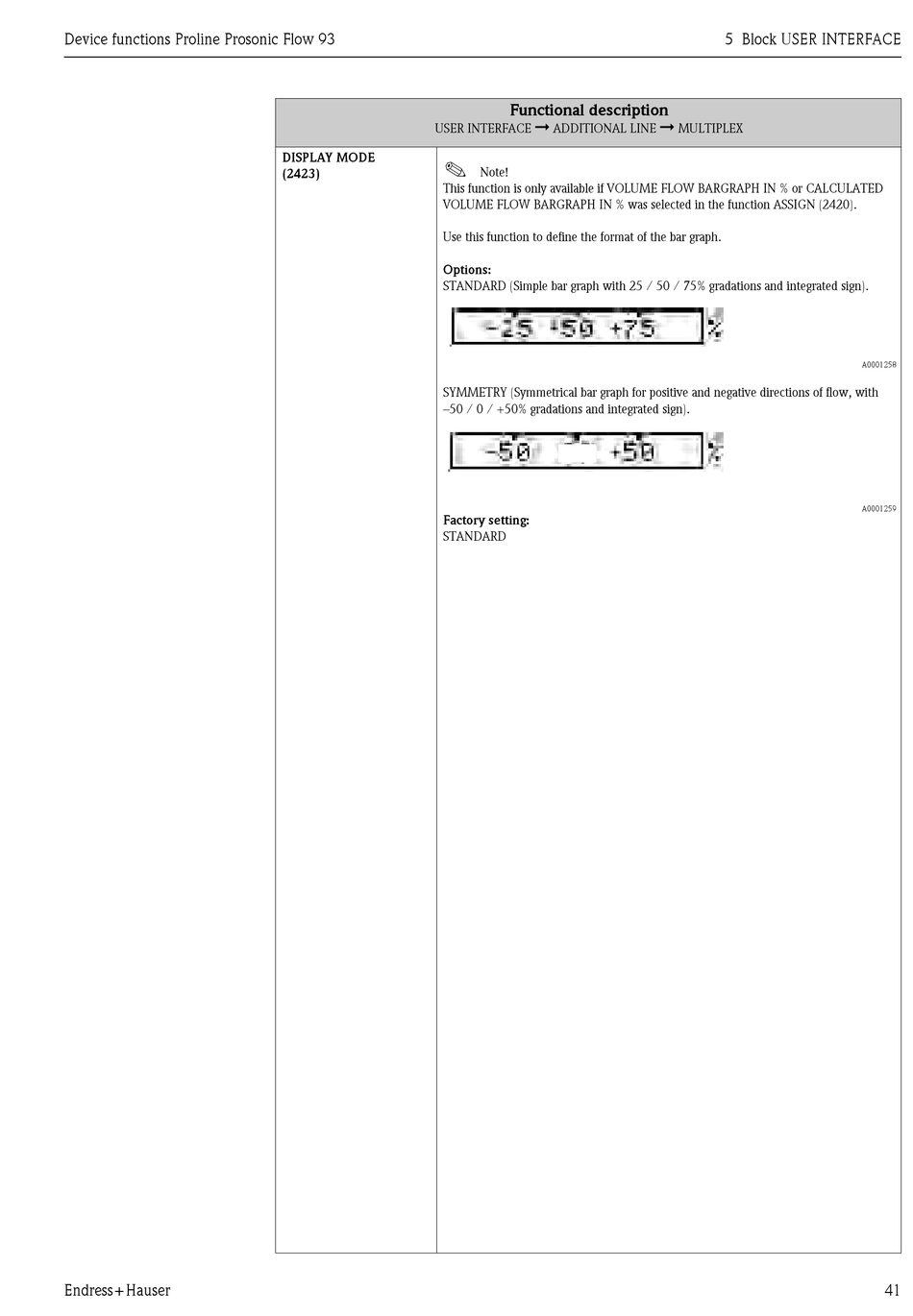

Endress+Hauser Proline Prosonic Flow 93 Function Manual page 41

Device functions Proline Prosonic Flow 93
Endress+Hauser
USER INTERFACE
DISPLAY MODE
!
(2423)
This function is only available if VOLUME FLOW BARGRAPH IN % or CALCULATED
VOLUME FLOW BARGRAPH IN % was selected in the function ASSIGN (2420).
Use this function to define the format of the bar graph.
Options:
STANDARD (Simple bar graph with 25 / 50 / 75% gradations and integrated sign).
SYMMETRY (Symmetrical bar graph for positive and negative directions of flow, with
–50 / 0 / +50% gradations and integrated sign).
Factory setting:
STANDARD
Functional description
➞
ADDITIONAL LINE
Note!
5 Block USER INTERFACE
➞
MULTIPLEX
A0001258
A0001259
41
