5.3.2

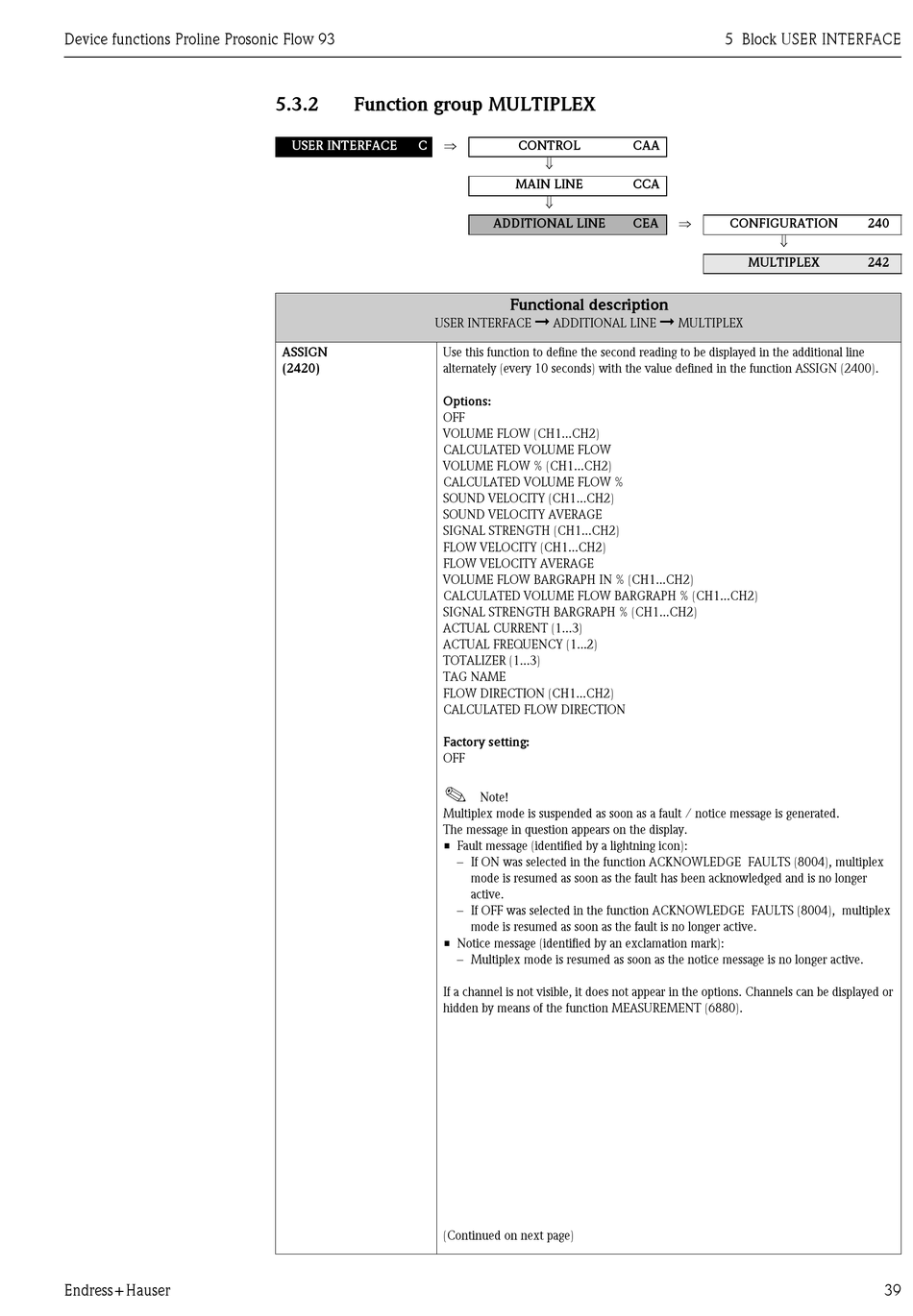

Function group MULTIPLEX

⇒
USER INTERFACE C
USER INTERFACE
ASSIGN Use this function to define the second reading to be displayed in the additional line
(2420) alternately (every 10 seconds) with the value defined in the function ASSIGN (2400).
Options:
OFF
VOLUME FLOW (CH1...CH2)
CALCULATED VOLUME FLOW
VOLUME FLOW % (CH1...CH2)
CALCULATED VOLUME FLOW %
SOUND VELOCITY (CH1...CH2)
SOUND VELOCITY AVERAGE
SIGNAL STRENGTH (CH1...CH2)
FLOW VELOCITY (CH1...CH2)
FLOW VELOCITY AVERAGE
VOLUME FLOW BARGRAPH IN % (CH1...CH2)
CALCULATED VOLUME FLOW BARGRAPH % (CH1...CH2)
SIGNAL STRENGTH BARGRAPH % (CH1...CH2)
ACTUAL CURRENT (1...3)
ACTUAL FREQUENCY (1...2)
TOTALIZER (1...3)
TAG NAME
FLOW DIRECTION (CH1...CH2)
CALCULATED FLOW DIRECTION
Factory setting:
OFF
!
Multiplex mode is suspended as soon as a fault / notice message is generated.
The message in question appears on the display.
• Fault message (identified by a lightning icon):
• Notice message (identified by an exclamation mark):
If a channel is not visible, it does not appear in the options. Channels can be displayed or
hidden by means of the function MEASUREMENT (6880).
(Continued on next page)
CONTROL
⇓
MAIN LINE
⇓
ADDITIONAL LINE
Functional description
➞
ADDITIONAL LINE
Note!
– If ON was selected in the function ACKNOWLEDGE FAULTS (8004), multiplex
mode is resumed as soon as the fault has been acknowledged and is no longer
active.
– If OFF was selected in the function ACKNOWLEDGE FAULTS (8004), multiplex
mode is resumed as soon as the fault is no longer active.
– Multiplex mode is resumed as soon as the notice message is no longer active.
5 Block USER INTERFACE
CAA
CCA
⇒
CEA CONFIGURATION
⇓
MULTIPLEX
➞
MULTIPLEX
240
242
39
