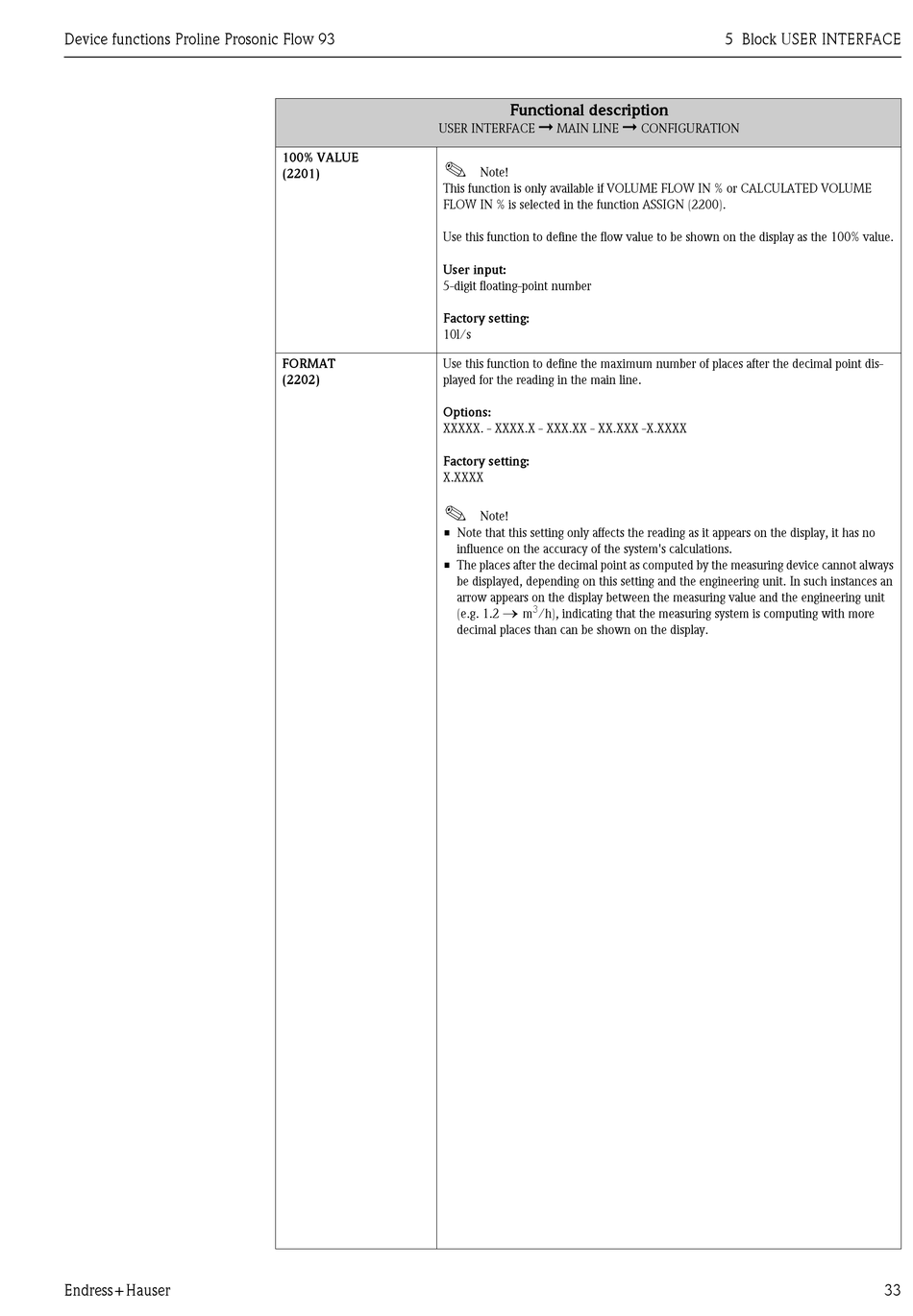

Device functions Proline Prosonic Flow 93
Endress+Hauser
USER INTERFACE
100% VALUE
!
(2201)
This function is only available if VOLUME FLOW IN % or CALCULATED VOLUME
FLOW IN % is selected in the function ASSIGN (2200).
Use this function to define the flow value to be shown on the display as the 100% value.
User input:
5-digit floating-point number
Factory setting:
10l/s
FORMAT Use this function to define the maximum number of places after the decimal point dis-
(2202) played for the reading in the main line.
Options:
XXXXX. - XXXX.X - XXX.XX - XX.XXX -X.XXXX
Factory setting:
X.XXXX
!
• Note that this setting only affects the reading as it appears on the display, it has no
• The places after the decimal point as computed by the measuring device cannot always
Functional description
➞ ➞
MAIN LINE
Note!
Note!
influence on the accuracy of the system's calculations.
be displayed, depending on this setting and the engineering unit. In such instances an
arrow appears on the display between the measuring value and the engineering unit
→
3
(e.g. 1.2 m /h), indicating that the measuring system is computing with more
decimal places than can be shown on the display.
5 Block USER INTERFACE
CONFIGURATION
