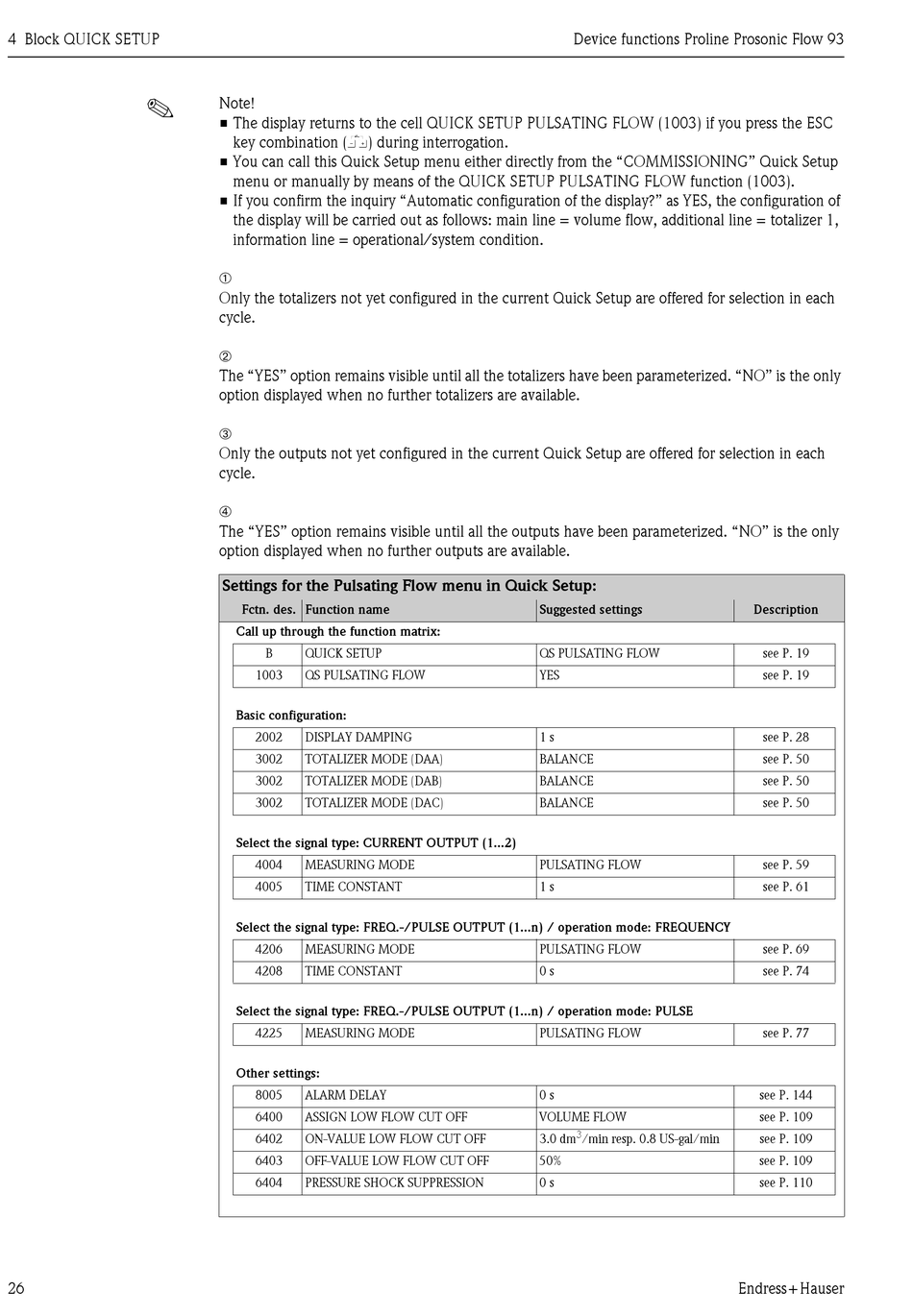

4 Block QUICK SETUP
!
26
Note!
• The display returns to the cell QUICK SETUP PULSATING FLOW (1003) if you press the ESC
key combination (X) during interrogation.
• You can call this Quick Setup menu either directly from the "COMMISSIONING" Quick Setup
menu or manually by means of the QUICK SETUP PULSATING FLOW function (1003).
• If you confirm the inquiry "Automatic configuration of the display?" as YES, the configuration of
the display will be carried out as follows: main line = volume flow, additional line = totalizer 1,
information line = operational/system condition.
➀
Only the totalizers not yet configured in the current Quick Setup are offered for selection in each
cycle.
➁
The "YES" option remains visible until all the totalizers have been parameterized. "NO" is the only
option displayed when no further totalizers are available.
➂
Only the outputs not yet configured in the current Quick Setup are offered for selection in each
cycle.
➃
The "YES" option remains visible until all the outputs have been parameterized. "NO" is the only
option displayed when no further outputs are available.
Settings for the Pulsating Flow menu in Quick Setup:
Fctn. des. Function name
Call up through the function matrix:
B QUICK SETUP
1003 QS PULSATING FLOW
Basic configuration:
2002 DISPLAY DAMPING
3002 TOTALIZER MODE (DAA)
3002 TOTALIZER MODE (DAB)
3002 TOTALIZER MODE (DAC)
Select the signal type: CURRENT OUTPUT (1...2)
4004 MEASURING MODE
4005 TIME CONSTANT
Select the signal type: FREQ.-/PULSE OUTPUT (1...n) / operation mode: FREQUENCY
4206 MEASURING MODE
4208 TIME CONSTANT
Select the signal type: FREQ.-/PULSE OUTPUT (1...n) / operation mode: PULSE
4225 MEASURING MODE
Other settings:
8005 ALARM DELAY
6400 ASSIGN LOW FLOW CUT OFF
6402 ON-VALUE LOW FLOW CUT OFF
6403 OFF-VALUE LOW FLOW CUT OFF
6404 PRESSURE SHOCK SUPPRESSION
Device functions Proline Prosonic Flow 93
Suggested settings
QS PULSATING FLOW
YES
1 s
BALANCE
BALANCE
BALANCE
PULSATING FLOW
1 s
PULSATING FLOW
0 s
PULSATING FLOW
0 s
VOLUME FLOW
3
3.0 dm /min resp. 0.8 US-gal/min
50%
0 s
Description
see P. 19
see P. 19
see P. 28
see P. 50
see P. 50
see P. 50
see P. 59
see P. 61
see P. 69
see P. 74
see P. 77
see P. 144
see P. 109
see P. 109
see P. 109
see P. 110
