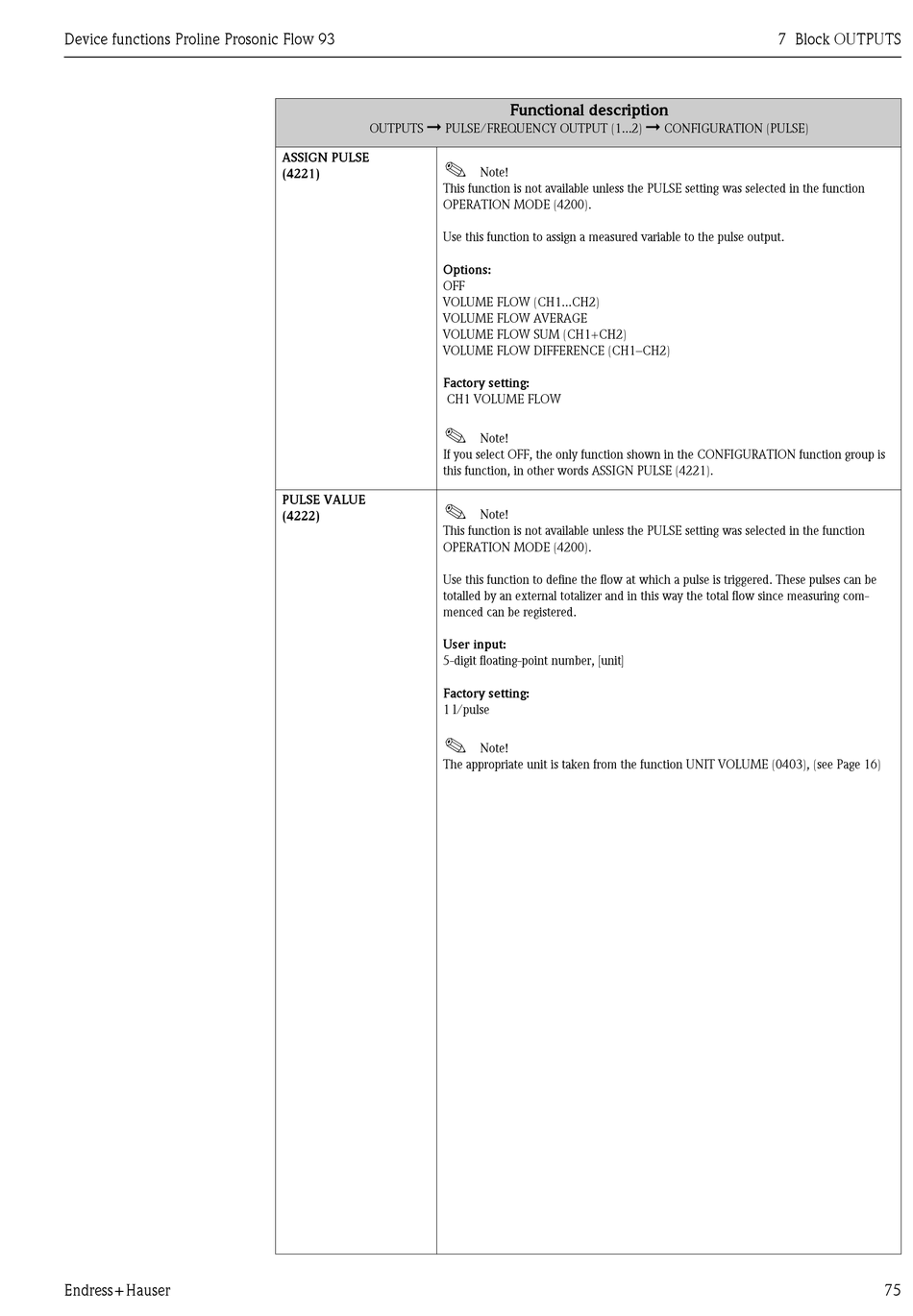

Endress+Hauser Proline Prosonic Flow 93 Function Manual page 75

Device functions Proline Prosonic Flow 93
Endress+Hauser
➞
OUTPUTS PULSE/FREQUENCY OUTPUT (1...2)
ASSIGN PULSE
!
(4221)
This function is not available unless the PULSE setting was selected in the function
OPERATION MODE (4200).
Use this function to assign a measured variable to the pulse output.
Options:
OFF
VOLUME FLOW (CH1...CH2)
VOLUME FLOW AVERAGE
VOLUME FLOW SUM (CH1+CH2)
VOLUME FLOW DIFFERENCE (CH1–CH2)
Factory setting:
CH1 VOLUME FLOW
!
If you select OFF, the only function shown in the CONFIGURATION function group is
this function, in other words ASSIGN PULSE (4221).
PULSE VALUE
!
(4222)
This function is not available unless the PULSE setting was selected in the function
OPERATION MODE (4200).
Use this function to define the flow at which a pulse is triggered. These pulses can be
totalled by an external totalizer and in this way the total flow since measuring com-
menced can be registered.
User input:
5-digit floating-point number, [unit]
Factory setting:
1 l/pulse
!
The appropriate unit is taken from the function UNIT VOLUME (0403), (see Page 16)
Functional description
➞
Note!
Note!
Note!
Note!
7 Block OUTPUTS
CONFIGURATION (PULSE)
75
