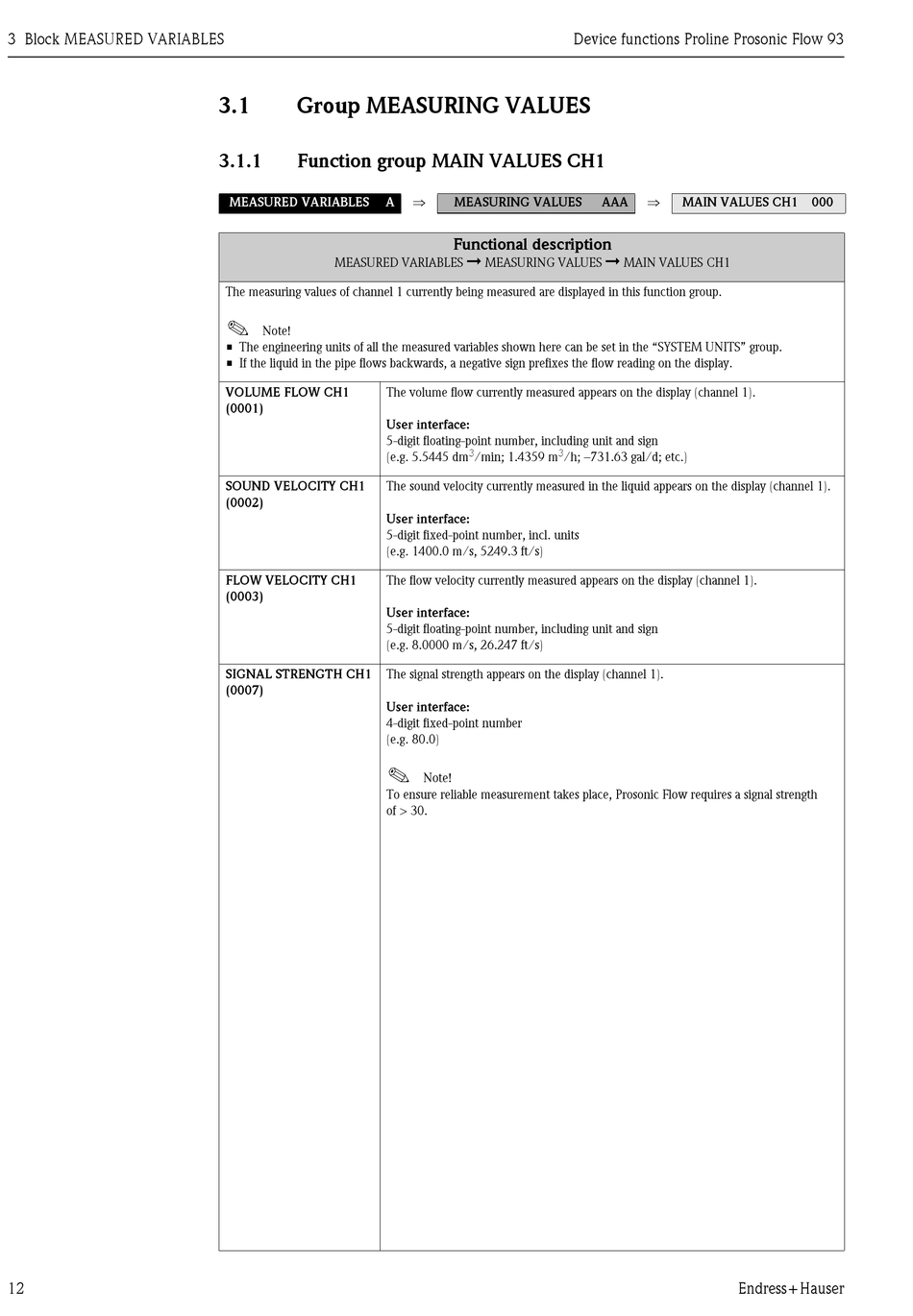

3 Block MEASURED VARIABLES
12
3.1

Group MEASURING VALUES

3.1.1

Function group MAIN VALUES CH1

MEASURED VARIABLES A
MEASURED VARIABLES
The measuring values of channel 1 currently being measured are displayed in this function group.
!
Note!
• The engineering units of all the measured variables shown here can be set in the "SYSTEM UNITS" group.
• If the liquid in the pipe flows backwards, a negative sign prefixes the flow reading on the display.
VOLUME FLOW CH1 The volume flow currently measured appears on the display (channel 1).
(0001)
User interface:
5-digit floating-point number, including unit and sign
(e.g. 5.5445 dm
SOUND VELOCITY CH1 The sound velocity currently measured in the liquid appears on the display (channel 1).
(0002)
User interface:
5-digit fixed-point number, incl. units
(e.g. 1400.0 m/s, 5249.3 ft/s)
FLOW VELOCITY CH1 The flow velocity currently measured appears on the display (channel 1).
(0003)
User interface:
5-digit floating-point number, including unit and sign
(e.g. 8.0000 m/s, 26.247 ft/s)
SIGNAL STRENGTH CH1 The signal strength appears on the display (channel 1).
(0007)
User interface:
4-digit fixed-point number
(e.g. 80.0)
!
To ensure reliable measurement takes place, Prosonic Flow requires a signal strength
of > 30.
Device functions Proline Prosonic Flow 93
⇒
MEASURING VALUES
Functional description
➞
MEASURING VALUES
3 3
/min; 1.4359 m /h; –731.63 gal/d; etc.)
Note!
⇒
AAA MAIN VALUES CH1 000
➞
MAIN VALUES CH1
Endress+Hauser
