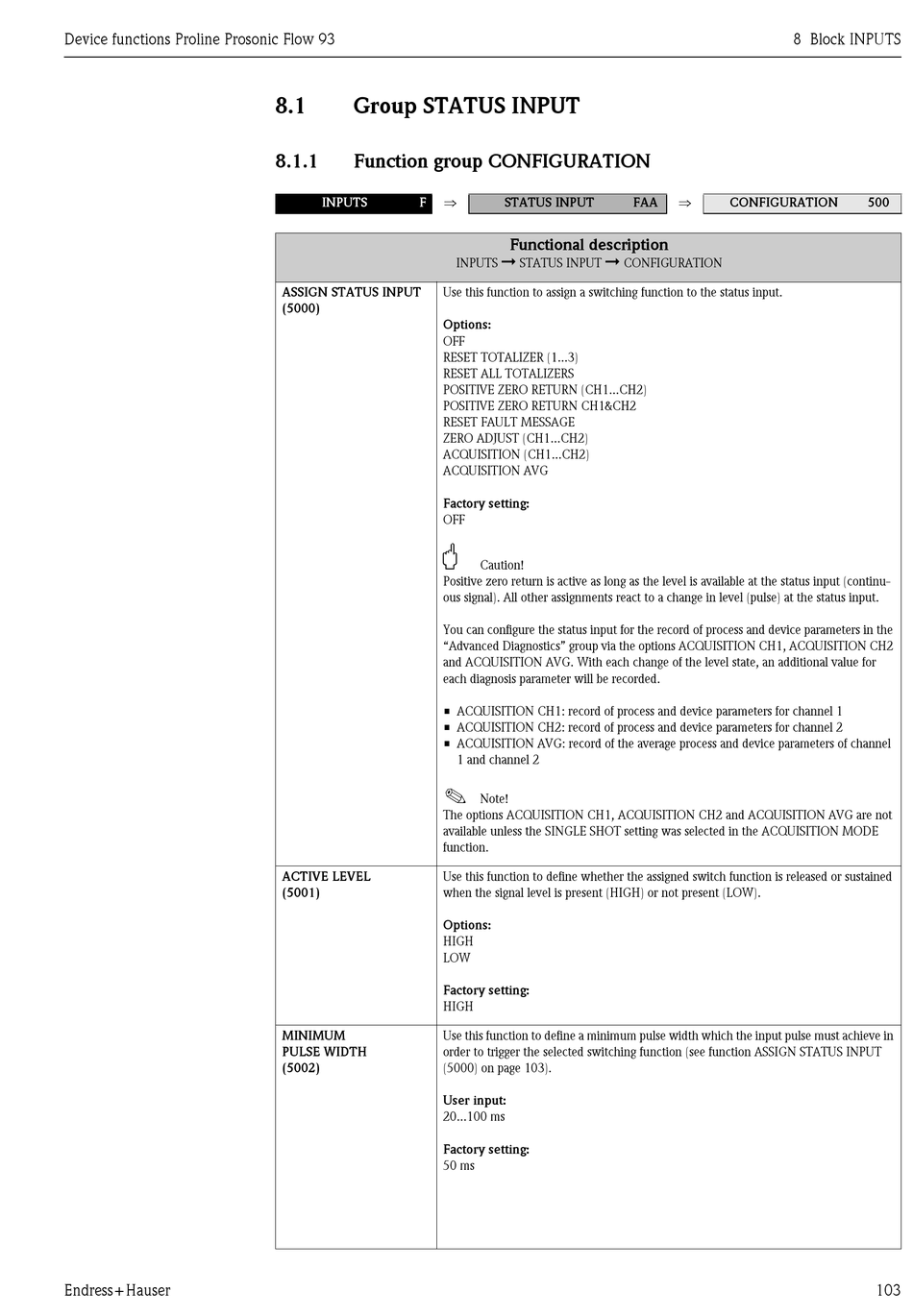

Device functions Proline Prosonic Flow 93
Endress+Hauser
8.1

Group STATUS INPUT

8.1.1

Function group CONFIGURATION

⇒
INPUTS F
ASSIGN STATUS INPUT Use this function to assign a switching function to the status input.
(5000)
Options:
OFF
RESET TOTALIZER (1...3)
RESET ALL TOTALIZERS
POSITIVE ZERO RETURN (CH1...CH2)
POSITIVE ZERO RETURN CH1&CH2
RESET FAULT MESSAGE
ZERO ADJUST (CH1...CH2)
ACQUISITION (CH1...CH2)
ACQUISITION AVG
Factory setting:
OFF
"
Positive zero return is active as long as the level is available at the status input (continu-
ous signal). All other assignments react to a change in level (pulse) at the status input.
You can configure the status input for the record of process and device parameters in the
"Advanced Diagnostics" group via the options ACQUISITION CH1, ACQUISITION CH2
and ACQUISITION AVG. With each change of the level state, an additional value for
each diagnosis parameter will be recorded.
• ACQUISITION CH1: record of process and device parameters for channel 1
• ACQUISITION CH2: record of process and device parameters for channel 2
• ACQUISITION AVG: record of the average process and device parameters of channel
!
The options ACQUISITION CH1, ACQUISITION CH2 and ACQUISITION AVG are not
available unless the SINGLE SHOT setting was selected in the ACQUISITION MODE
function.
ACTIVE LEVEL Use this function to define whether the assigned switch function is released or sustained
(5001) when the signal level is present (HIGH) or not present (LOW).
Options:
HIGH
LOW
Factory setting:
HIGH
MINIMUM Use this function to define a minimum pulse width which the input pulse must achieve in
PULSE WIDTH order to trigger the selected switching function (see function ASSIGN STATUS INPUT
(5002) (5000) on page 103).
User input:
20...100 ms
Factory setting:
50 ms
STATUS INPUT
Functional description
➞ ➞
INPUTS STATUS INPUT CONFIGURATION
Caution!
1 and channel 2
Note!
8 Block INPUTS
⇒
FAA CONFIGURATION 500
103
