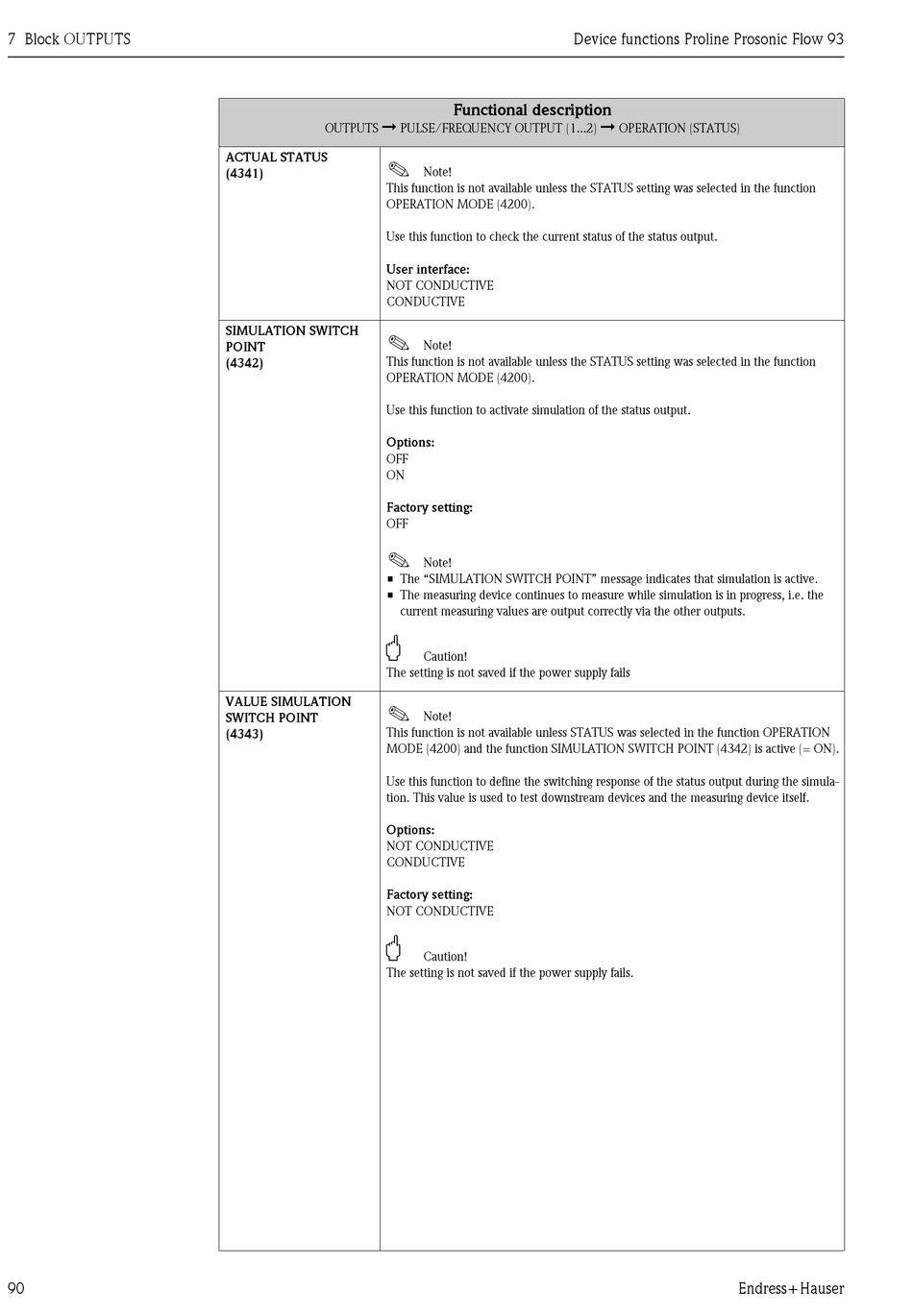

Endress+Hauser Proline Prosonic Flow 93 Function Manual page 90

7 Block OUTPUTS
90
➞
OUTPUTS
ACTUAL STATUS
!
(4341)
This function is not available unless the STATUS setting was selected in the function
OPERATION MODE (4200).
Use this function to check the current status of the status output.
User interface:
NOT CONDUCTIVE
CONDUCTIVE
SIMULATION SWITCH
!
POINT
This function is not available unless the STATUS setting was selected in the function
(4342)
OPERATION MODE (4200).
Use this function to activate simulation of the status output.
Options:
OFF
ON
Factory setting:
OFF
!
• The "SIMULATION SWITCH POINT" message indicates that simulation is active.
• The measuring device continues to measure while simulation is in progress, i.e. the
"
The setting is not saved if the power supply fails
VALUE SIMULATION
!
SWITCH POINT
This function is not available unless STATUS was selected in the function OPERATION
(4343)
MODE (4200) and the function SIMULATION SWITCH POINT (4342) is active (= ON).
Use this function to define the switching response of the status output during the simula-
tion. This value is used to test downstream devices and the measuring device itself.
Options:
NOT CONDUCTIVE
CONDUCTIVE
Factory setting:
NOT CONDUCTIVE
"
The setting is not saved if the power supply fails.
Functional description
PULSE/FREQUENCY OUTPUT (1...2)
Note!
Note!
Note!
current measuring values are output correctly via the other outputs.
Caution!
Note!
Caution!
Device functions Proline Prosonic Flow 93
➞
OPERATION (STATUS)
