5

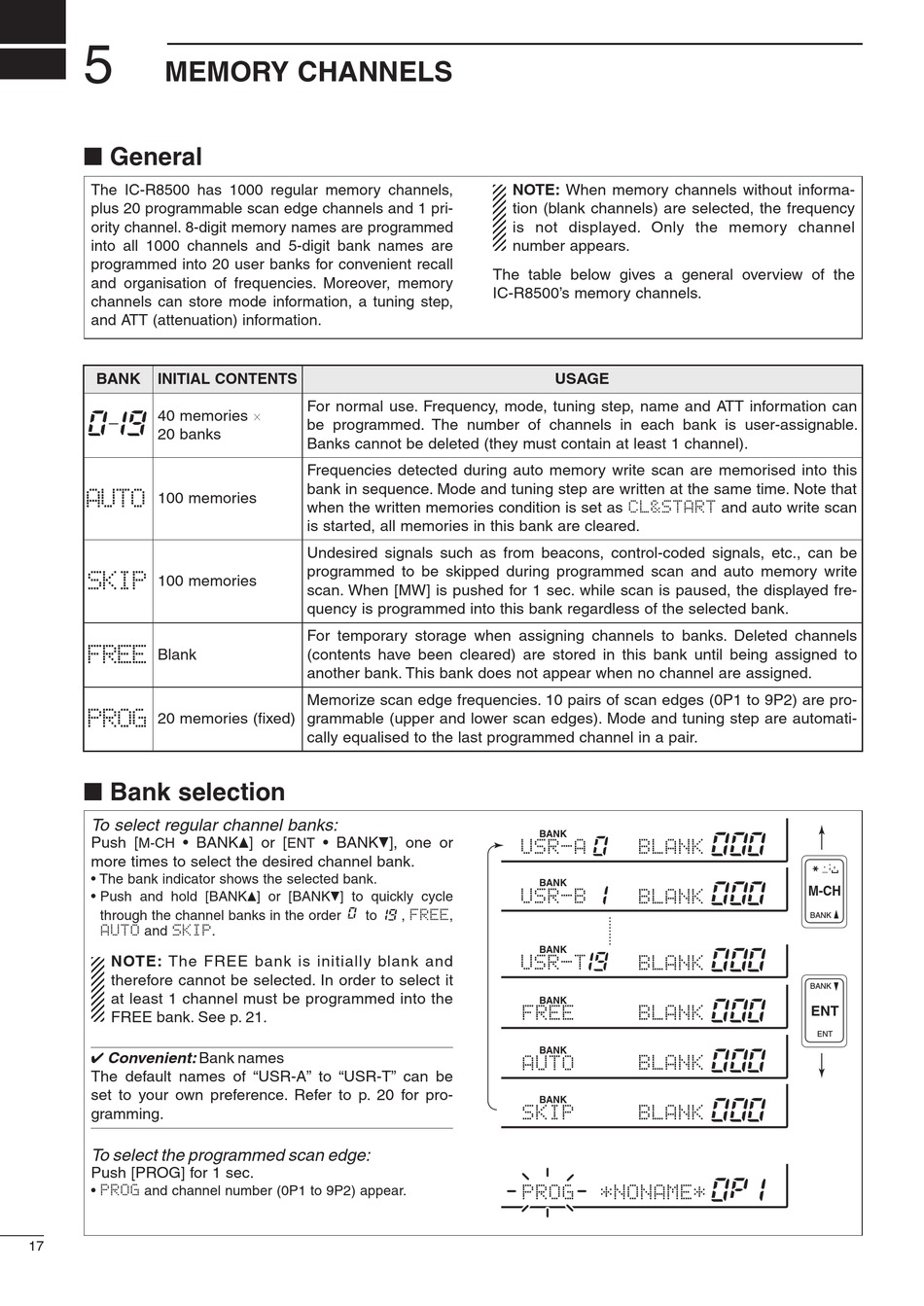

MEMORY CHANNELS

■ General

The IC-R8500 has 1000 regular memory channels,
plus 20 programmable scan edge channels and 1 pri-
ority channel. 8-digit memory names are programmed
into all 1000 channels and 5-digit bank names are
programmed into 20 user banks for convenient recall
and organisation of frequencies. Moreover, memory
channels can store mode information, a tuning step,
and ATT (attenuation) information.
BANK INITIAL CONTENTS
40 memories ×
20 banks
AUTO
100 memories
SKIP
100 memories
FREE Blank
PROG 20 memories (fixed)

■ Bank selection

To select regular channel banks:
Push [ • BANK▲] or [
M-CH
more times to select the desired channel bank.
• The bank indicator shows the selected bank.
• Push and hold [BANK▲] or [BANK▼] to quickly cycle
through the channel banks in the order
AUTO and SKIP.
NOTE: The FREE bank is initially blank and
therefore cannot be selected. In order to select it
at least 1 channel must be programmed into the
FREE bank. See p. 21.
✔ Convenient: Bank names
The default names of "USR-A" to "USR-T" can be
set to your own preference. Refer to p. 20 for pro-
gramming.
To select the programmed scan edge:
Push [PROG] for 1 sec.
• PROG and channel number (0P1 to 9P2) appear.
17
For normal use. Frequency, mode, tuning step, name and ATT information can
be programmed. The number of channels in each bank is user-assignable.
Banks cannot be deleted (they must contain at least 1 channel).
Frequencies detected during auto memory write scan are memorised into this
bank in sequence. Mode and tuning step are written at the same time. Note that
when the written memories condition is set as CL&START and auto write scan
is started, all memories in this bank are cleared.
Undesired signals such as from beacons, control-coded signals, etc., can be
programmed to be skipped during programmed scan and auto memory write
scan. When [MW] is pushed for 1 sec. while scan is paused, the displayed fre-
quency is programmed into this bank regardless of the selected bank.
For temporary storage when assigning channels to banks. Deleted channels
(contents have been cleared) are stored in this bank until being assigned to
another bank. This bank does not appear when no channel are assigned.
Memorize scan edge frequencies. 10 pairs of scan edges (0P1 to 9P2) are pro-
grammable (upper and lower scan edges). Mode and tuning step are automati-
cally equalised to the last programmed channel in a pair.
• BANK▼], one or
ENT
to , FREE,
NOTE: When memory channels without informa-
tion (blank channels) are selected, the frequency
is not displayed. Only the memory channel
number appears.
The table below gives a general overview of the
IC-R8500's memory channels.
USAGE
BANK
USR-A BLANK
BANK
USR-B
BLANK
BANK
USR-T BLANK
BANK
FREE BLANK
BANK
AUTO BLANK
BANK
SKIP BLANK
PROG *NONAME*
. ; ,
M-CH
BANK
BANK
ENT
ENT
