3

FREQUENCY AND CHANNEL SETTING

I VFO and memory channels

The IC-R5 has 2 normal operating modes: VFO mode and
memory mode.
VFO mode is used for the desired frequency setting within
the frequency coverage.
➥ Push [V/M•S.MW•~] to select VFO mode.
Memory mode is used for the desired frequency setting
within the frequency coverage.
➥ Push [V/M•S.MW•~] to select memory mode.
• See p. 16 for memory programming details.
[DIAL]
[V/M•S.MW•~]
What is VFO?
VFO is an abbreviation of Variable Frequency Oscillator. Fre-
quencies for receiving are generated and controlled by the
VFO.
7
• VFO mode indication
FM P SKIP
• Memory mode indication
FM
" " and memory channel
number appear.

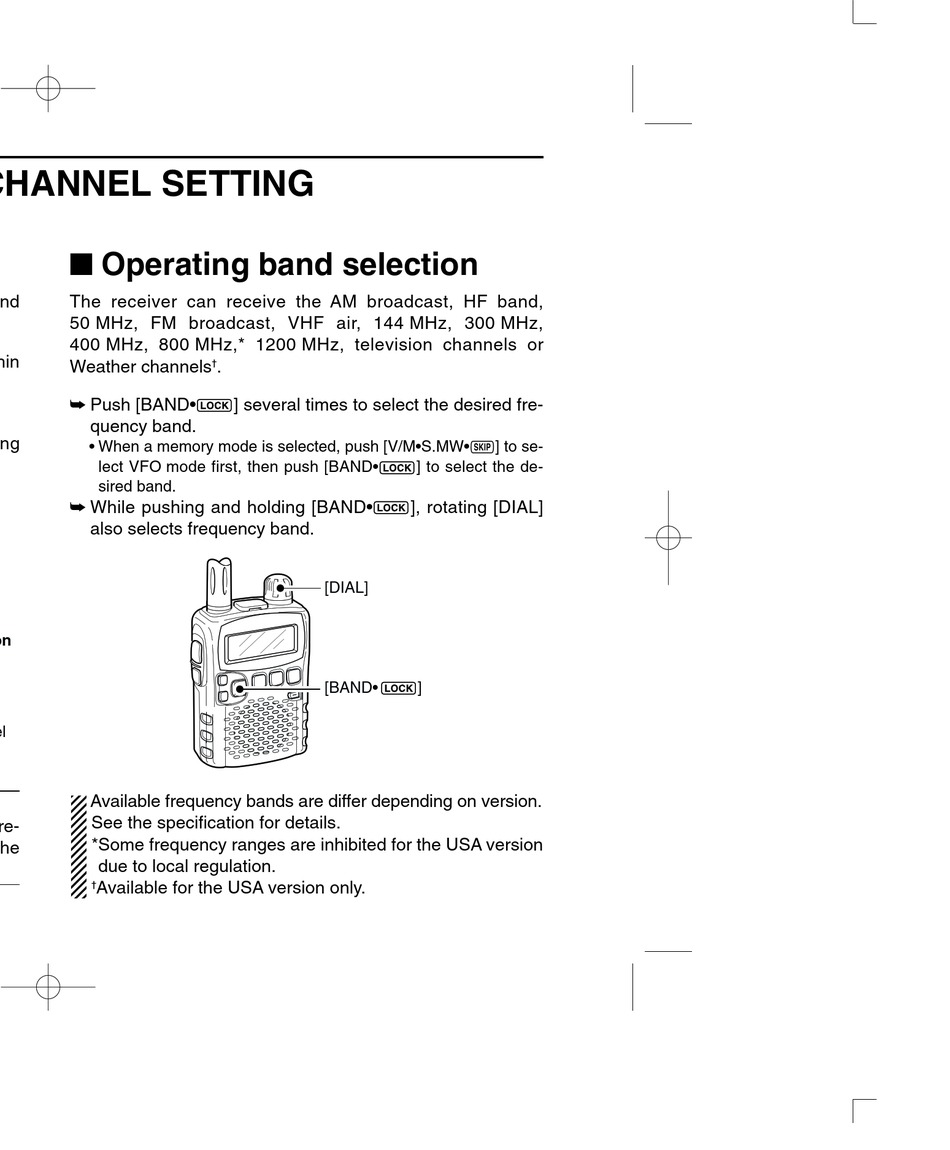

I Operating band selection

The receiver can receive the AM broadcast, HF band,
50 MHz, FM broadcast, VHF air, 144 MHz, 300 MHz,
400 MHz, 800 MHz,* 1200 MHz, television channels or
Weather channels † .
➥ Push [BAND•
] several times to select the desired fre-
quency band.
• When a memory mode is selected, push [V/M•S.MW•~] to se-
lect VFO mode first, then push [BAND•
sired band.
➥ While pushing and holding [BAND•
also selects frequency band.
Available frequency bands are differ depending on version.
See the specification for details.
*Some frequency ranges are inhibited for the USA version
due to local regulation.
† Available for the USA version only.
] to select the de-
], rotating [DIAL]
[DIAL]
[BAND• ]
