3.) With the windscreen off, note the taper from the microphone wire to the microphone element.
4.) When putting on the wind screen, slightly twirl the foam in your fingers while threading it onto the
microphone element. Once the element has entered the foam, you must push further to fit the
plastic cap that is inside the foam onto the microphone element. This takes a little force and rocking
motion.
Taper still visible – windscreen
not fully installed!!
5.) When fitted correctly, the taper should be totally covered by the windscreen. If you see the taper
as in the above picture, the cap inside the foam is not pushed on all the way and the wind screen
will easily fall off during use.
PROPRIETARY TO GE
3
EVISION

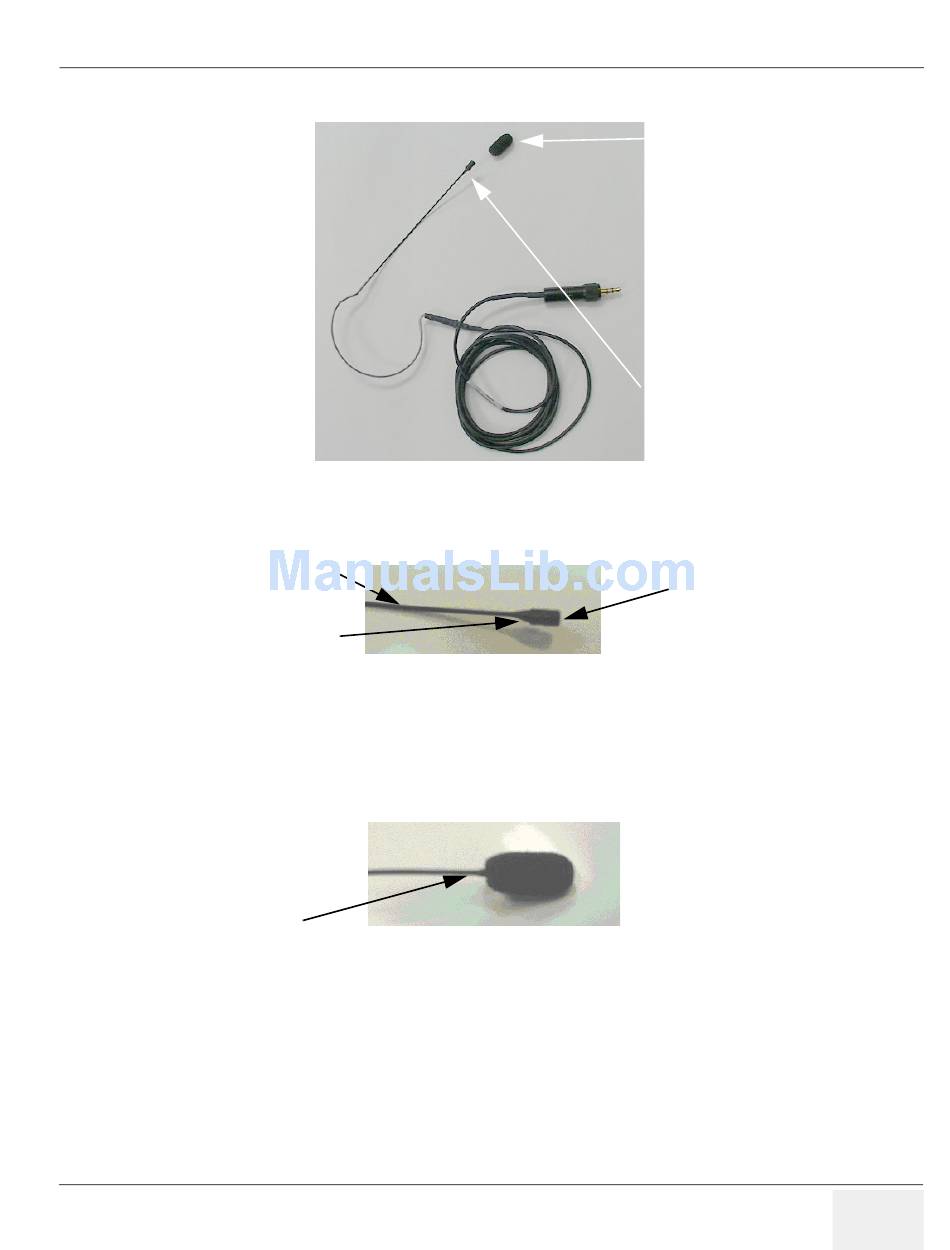

Figure 8-188 Microphone with Wind Screen
Wire
Taper
Figure 8-189 Tarnsmitter Microphone
Figure 8-190 Improper Wind Screen Placement
Chapter 8 Replacement Procedures
LOGIQ™ 9 P
ROPRIETARY
Wind Screen
(May already be installed)
Microphone
Microphone Element
