IRECTION
5.) Disconnect the connector to the UPS Battery.
NOTE: Reconnecting the UPS Battery will cause a spark at the connector.
6.) Remove the two nuts holding the angle bracket, shown in
Side Screw
7.) Remove the screw holding the angle bracket to the side of the power supply, as shown in
13 on page 8-21
8.) Remove the angle bracket and set it aside with the hardware.
PROPRIETARY TO GE
3
EVISION

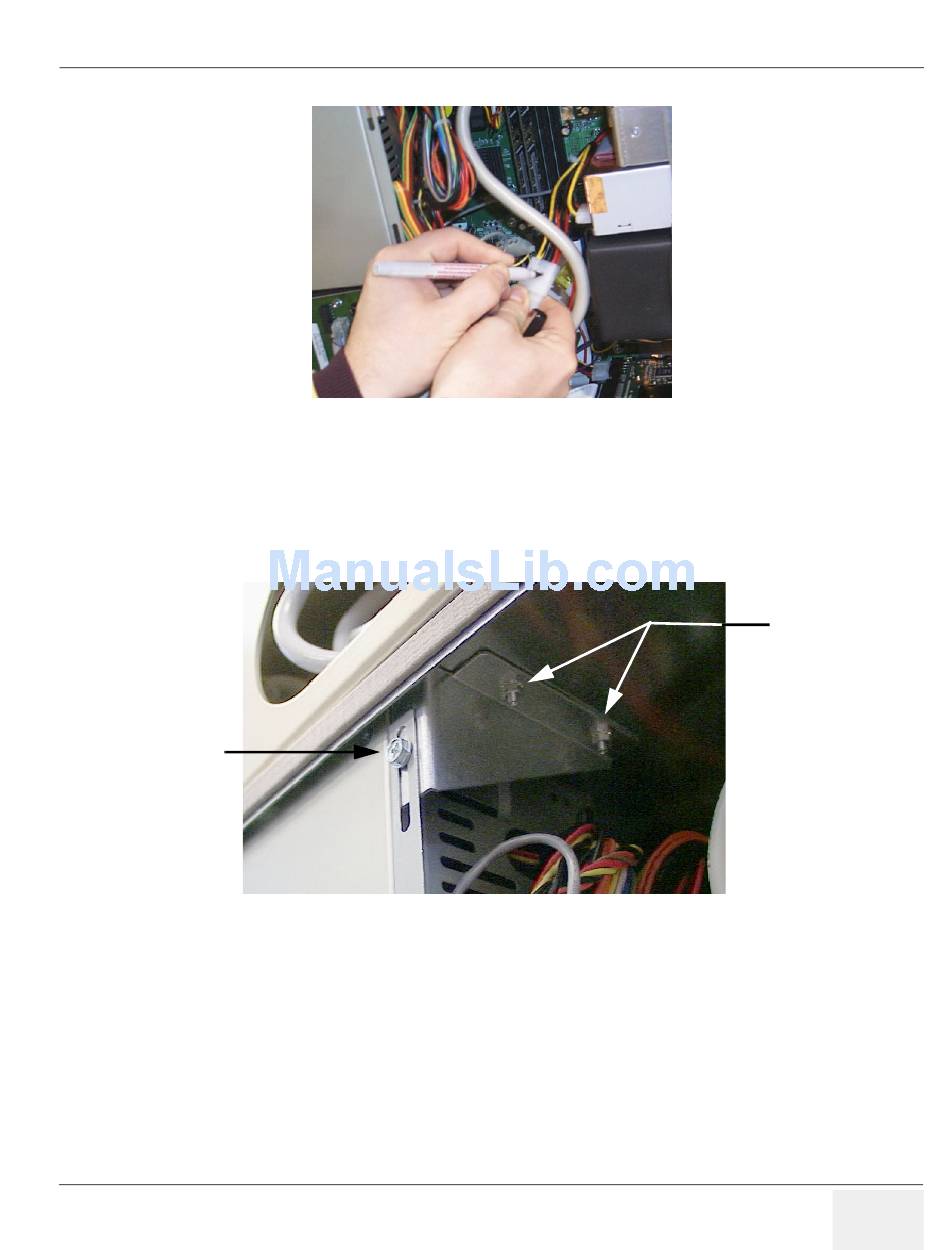

Figure 8-12 Mark Power Supply Connectors
Figure 8-13 Remove Two Nuts
.
Chapter 8 Replacement Procedures
LOGIQ™ 9 P
ROPRIETARY
Figure 8-13 on page 8-21
Angle
Bracket
Nuts
M
ANUAL
.
Figure 8-
8-21
