Section 8-38

Brake/Direction Lock Assembly Replacement Procedure

8-38-1 Manpower
One person, 1 hour.
8-38-2 Tools
-
-
-
-
8-38-3 Preparations
1.) Remove Front Bumper.
2.) Remove footrests on both pedals by unscrewing 4 Torx screws on each.
8-156 Section 8-38 - Brake/Direction Lock Assembly Replacement Procedure
PROPRIETARY TO GE
3
EVISION
Phillips screwdriver size 2
Hexagon key 5 mm
Torx screwdriver T-20
Wrench 11 and 13 mm
(click here to view the cover removal video)

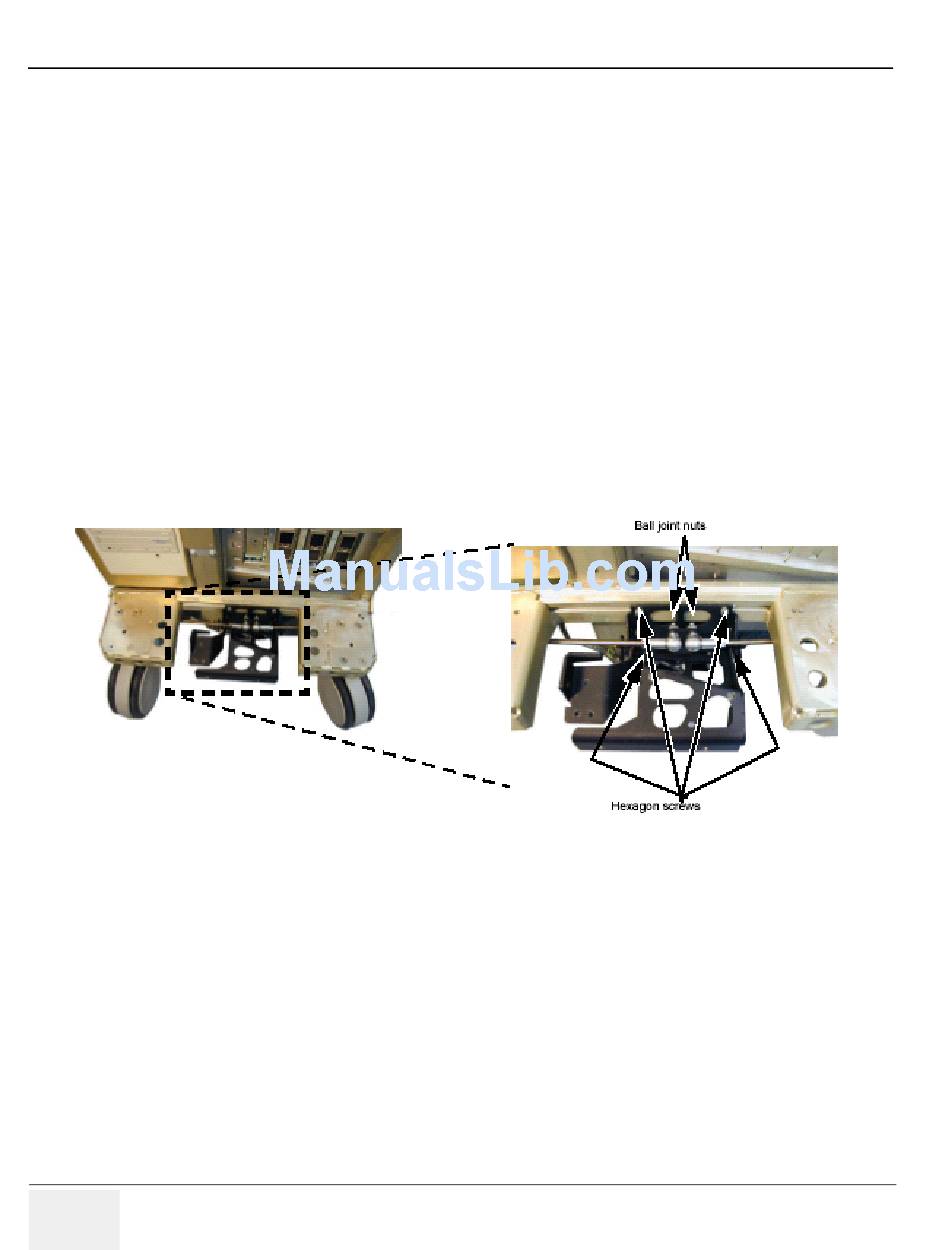

Figure 8-164 Brake Assembly
