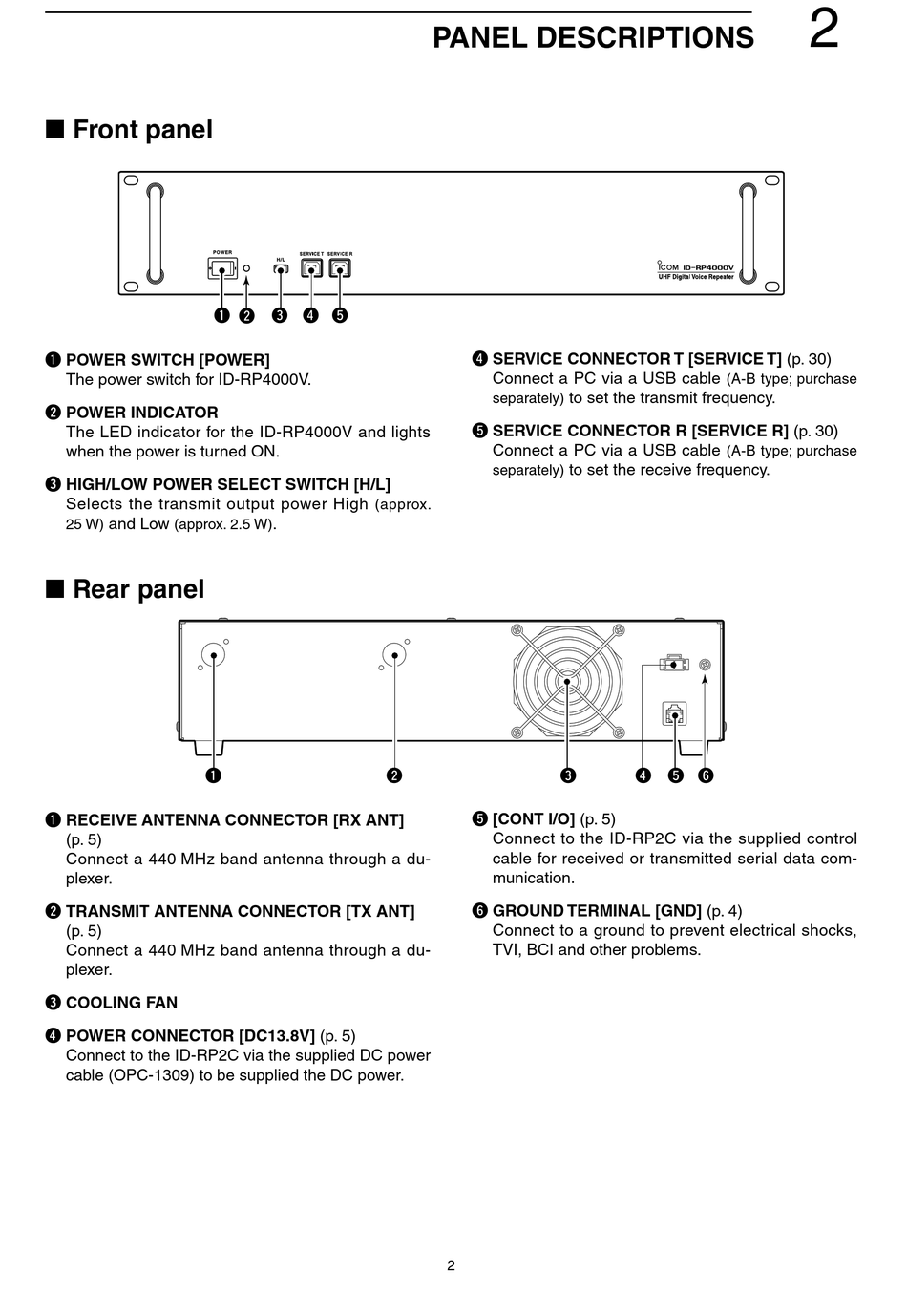

n Front panel
q POWER SWITCH [POWER]
The power switch for ID-RP4000V.
w POWER INDICATOR
The LED indicator for the ID-RP4000V and lights
when the power is turned ON.
e HIGH/LOW POWER SELECT SWITCH [H/L]
Selects the transmit output power High
and Low
25 W) (approx. 2.5 W)
n Rear panel
q
q RECEIVE ANTENNA CONNECTOR [RX ANT]
(p. 5)
Connect a 440 MHz band antenna through a du-
plexer.
w TRANSMIT ANTENNA CONNECTOR [TX ANT]
(p. 5)
Connect a 440 MHz band antenna through a du-
plexer.
e COOLING FAN
r POWER CONNECTOR [DC13.8V] (p. 5)
Connect to the ID-RP2C via the supplied DC power
cable (OPC-1309) to be supplied the DC power.
q w e r t
(approx.
.

PANEL DESCRIPTIONS

r SERVICE CONNECTOR T [SERVICE T] (p. 30)
Connect a PC via a USB cable
separately)
t SERVICE CONNECTOR R [SERVICE R] (p. 30)
Connect a PC via a USB cable
separately)
w
t [CONT I/O] (p. 5)
Connect to the ID-RP2C via the supplied control
cable for received or transmitted serial data com-
munication.
y GROUND TERMINAL [GND] (p. 4)
Connect to a ground to prevent electrical shocks,
TVI, BCI and other problems.
2
(A-B type; purchase
to set the transmit frequency.
(A-B type; purchase
to set the receive frequency.
e r t y
