Every 500 Hours; Engine Oil And Filter - New Holland T4.75F Operator's Manual

EVERY 500 HOURS

Engine oil and filter

T4.75F — T4.85F
NOTE: This operation describes the process of draining oil from the engine sump and changing the relevant oil filter.
The frequency of 500 hours can anyhow be affected by other factors:
Cold temperature operation
Engines operating in temperatures below -12 °C (10.4 °F)
or in arduous conditions should have the oil changed every
300 hours of operation. The filter must be changed regu-
larly as prescribed.
Diesel fuel sulphur content
In some countries, locally available diesel may have a high
sulphur content, in which case the oil and filter should be
changed sooner, as follows:
Sulphur content between 0,5 - 1,0 % change oil every 300
hours;
Sulphur content between 1,0 - 1,3 % change oil every 150
hours;
If in doubt, or if it is not possible to check the instructions
given, keep to the interval recommended in the Operator's
Manual.
Drain oil and renew filter
• place a container under the engine sump;

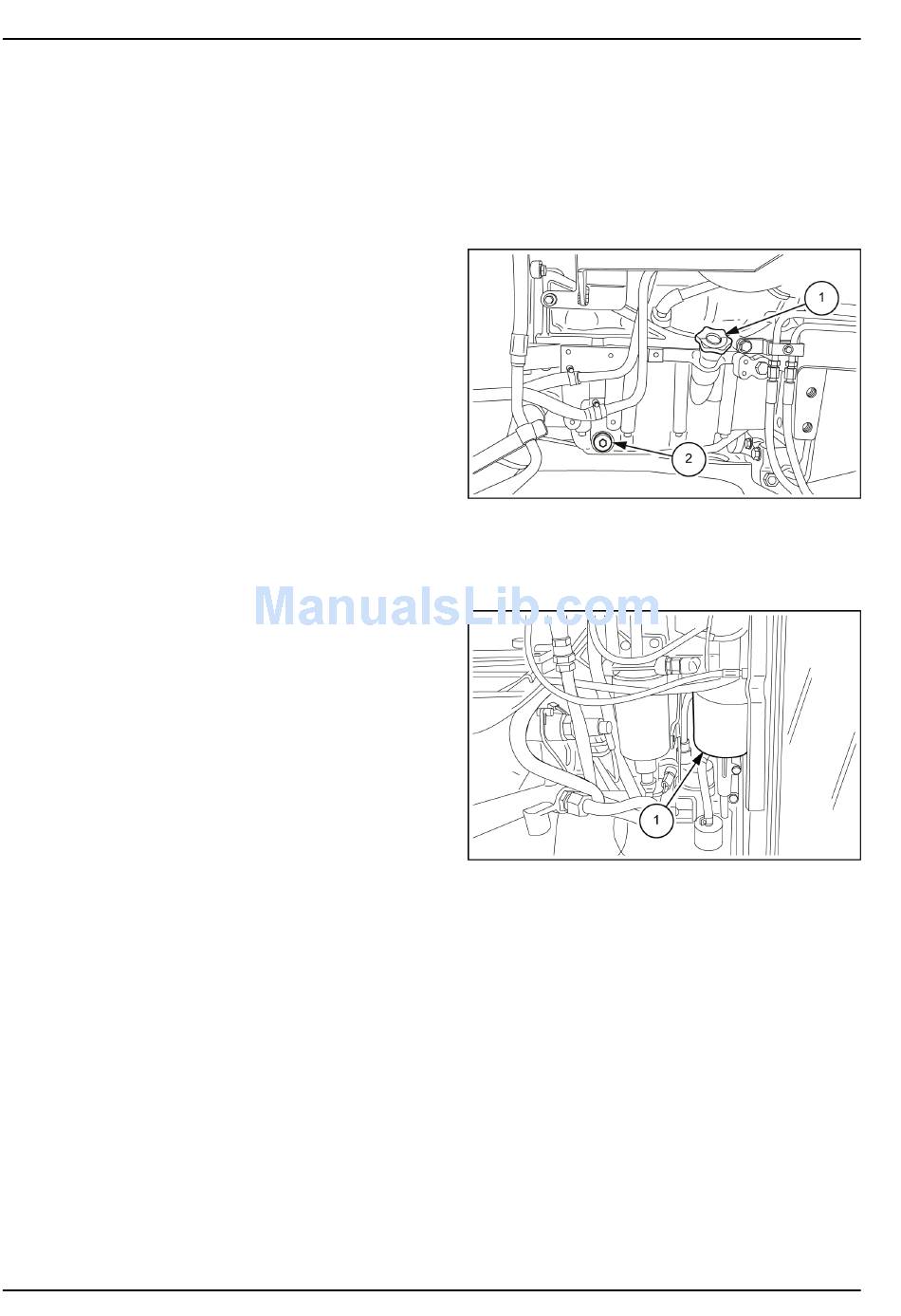

• remove the drain plugs (2) figure 1 from the sump
(one on each side) and drain off the oil;
• screw the plugs back on;
• unscrew the filter (1) figure 2, drain it of the remaining
oil and discard it as required by the current regula-
tions in your country;
• clean the surface of the filter seat;
• lightly oil the seal of the new filter, screw it down into
contact with the support and tighten it by hand by 3/4
of a turn, or a full turn at most;
fill up with new oil through the fill point (1) figure 1
• start the engine, leave it idling for at least 3 minutes;
switch it off and check that the oil level is between the
MIN and MAX marks on the dipstick. If necessary,
top up with oil.
7 - MAINTENANCE
7-32
1
MOIL13TR00833AA
2
MOIL13TR00666AA
