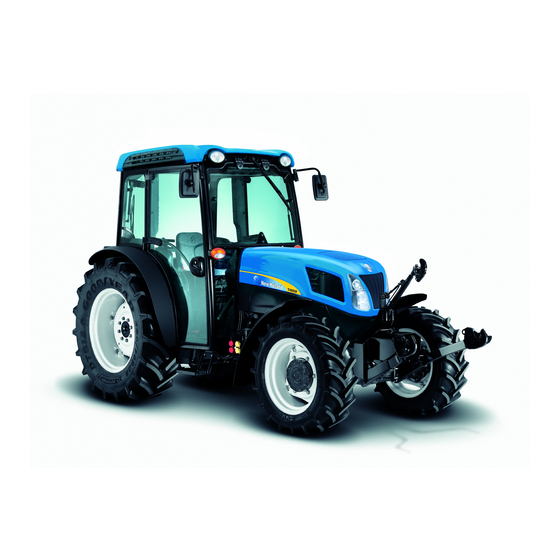

New Holland T4030F Service Manual
Hide thumbs
Also See for T4030F:
- Service manual (21 pages) ,
- Specifications (2 pages) ,
- Service manual (21 pages)
Subscribe to Our Youtube Channel
Related Manuals for New Holland T4030F
Summary of Contents for New Holland T4030F
- Page 1 SERVICE MANUAL T4030F / T4040F / T4050F / T4060F Tractor Part number 47888339 English July 2016 © 2016 CNH Industrial Italia S.p.A. All Rights Reserved.
- Page 2 SERVICE MANUAL T4030F With cab - Model Year 2012 [ZCJD09263 - ZDJD10118], T4030F With cab [Z8JD05996 - ZCJD10540], T4030F Without cab - Model Year 2012 [ZCJD10424 - ZDJD10174], T4030F Without cab [Z8JD07917 - ZCJD10183], T4040F With cab - Model Year 2012 [ZCJD10607 - ZDJD10900], T4040F...
- Page 3 T4030F Without cab [Z8JD07917 - Middle East Africa F5AE9484B ZCJD10183] T4030F Without cab [Z8JD07917 - Europe F5AE9484B ZCJD10183] T4030F With cab - Model Year Middle East Africa F5AE9484B 2012 [ZCJD09263 - ZDJD10118] T4030F With cab - Model Year Europe F5AE9484B 2012 [ZCJD09263 - ZDJD10118]...
- Page 4 Product Market Product Engine T4040F With cab - Model Year Europe F5AE9484G 2012 [ZCJD10607 - ZDJD10900] T4040F With cab - Model Year Australia New Zealand F5AE9484G 2012 [ZCJD10607 - ZDJD10900] T4040F With cab - Model Year Asia Pacific F5AE9484G 2012 [ZCJD10607 - ZDJD10900] T4040F With cab - Model Year Middle East Africa F5AE9484G...
- Page 5 Product Market Product Engine T4060F With cab [ZBJD14608 - Australia New Zealand F4CE9484 ZDJD11085] T4060F With cab [ZBJD14608 - Europe F4CE9484 ZDJD11085] T4060F Without cab [ZCJD06222 - Australia New Zealand F4CE9484 ZDJD11528] T4060F Without cab [ZCJD06222 - Middle East Africa F4CE9484 ZDJD11528] T4060F Without cab [ZCJD06222 -...
- Page 6 Contents INTRODUCTION Engine..................10 [10.001] Engine and crankcase ............. 10.1 Clutch ..................
- Page 7 [25.310] Final drives ............... . . 25.5 Rear axle system................
- Page 8 [41.101] Steering control ..............41.1 [41.200] Hydraulic control components.
- Page 9 [90.150] Cab ................. 90.1 [90.151] Cab interior .
- Page 10 INTRODUCTION 47888339 15/07/2016...
-
Page 11: Table Of Contents
Contents INTRODUCTION Note to the Owner WARNINGS FOR AIR CONDITIONING SYSTEM REPAIR OPERATIONS (*) ....................3 Advice Important notice . - Page 12 INTRODUCTION Note to the Owner WARNINGS FOR AIR CONDITIONING SYSTEM REPAIR OPERATIONS T4030F With cab - Model Year 2012 [ZCJD09263 - ZDJD10118] ANZ --- APAC --- MEA --- WE T4030F With cab [Z8JD05996 - ZCJD10540] ANZ --- APAC --- MEA --- WE...
-
Page 13: Advice Important Notice
INTRODUCTION Advice Important notice All maintenance and repair work described in this manual must be performed exclusively by NEW HOLLAND service technicians, in strict accordance with the instructions given and using any specific tools necessary. Anyone performing the operations described herein without strictly following the instructions is personally responsible for any eventual injury or damage to property. -
Page 14: Safety Rules Safety Regulations
INTRODUCTION Safety rules SAFETY REGULATIONS TO PREVENT ACCIDENTS Most accidents or injuries that occur in workshops are the result of non--observance of simple and fundamental safety regulations. For this reason, IN MOST CASES THESE ACCIDENTS CAN BE AVOIDED: by foreseeing possible causes and con- sequently acting with the necessary caution and care. - Page 15 INTRODUCTION • Do not run the engine in confined spaces without suitable ventilation. • Do not smoke, use naked flames, or cause sparks in the area when fuel filling or handling highly inflammable liquids. • Never use naked flames for lighting when working on the machine or checking for leaks. •...
- Page 16 INTRODUCTION • Never lubricate the vehicle when the engine is running. ELECTRICAL SYSTEMS • If it is necessary to use auxiliary batteries, remember that both ends of the cables must be connected as follows: (+) with (+) and (-) with (-). •...
-
Page 17: Personal Safety Cab Air Conditioning System
INTRODUCTION Personal safety CAB AIR CONDITIONING SYSTEM T4030F With cab - Model Year 2012 [ZCJD09263 - ZDJD10118] ANZ --- APAC --- MEA --- WE T4030F With cab [Z8JD05996 - ZCJD10540] ANZ --- APAC --- MEA --- WE T4040F With cab - Model Year 2012 [ZCJD10607 - ZDJD10900]... -
Page 18: Basic Instructions
INTRODUCTION Basic instructions Battery Before carrying out any kind of service operation disconnect and isolate the battery negative lead, unless otherwise requested for specific operations (e.g: operations that require the engine running). Once the specific operation has been completed, disconnect the lead in order to complete the operation. Shimming For each adjustment operation, select adjusting shims and measure individually using a micrometer, then add up the recorder values: Do not rely on measuring the entire shimming set, which may be incorrect, or the rated value... - Page 19 − Part number of the ordered part, which can be found in the “Spare Parts Catalogue” used for order processing. Notes for equipment The tools that NEW HOLLAND propose and illustrate in this manual are: − Specifically researched and designed for use with NEW HOLLAND vehicles.
-
Page 20: Consumables
− − diesel fuel Reduced tank 67 l (17.7 US gal) Engine oil sump: NEW HOLLAND NH 330H SAE T4030F and T4040F 8.5 l (2.25 US gal) AMBRA SUPER 15W-40 API CH-4 GOLD 15W-40 ACEA E7/E5 NEW HOLLAND NH 324H SAE T4050F and T4060F 9.5 l (2.51 US gal)
