Pivot Shaft Removal

If for any reason you need to remove a pivot
shaft, then perform the following steps:
NOTE: It is important that you do not pound on
the flat surface of the shaft. Doing so will dam-
age the shaft and will make the task of remov-
ing or reinstalling the pivot shaft much more dif-
ficult or impossible.

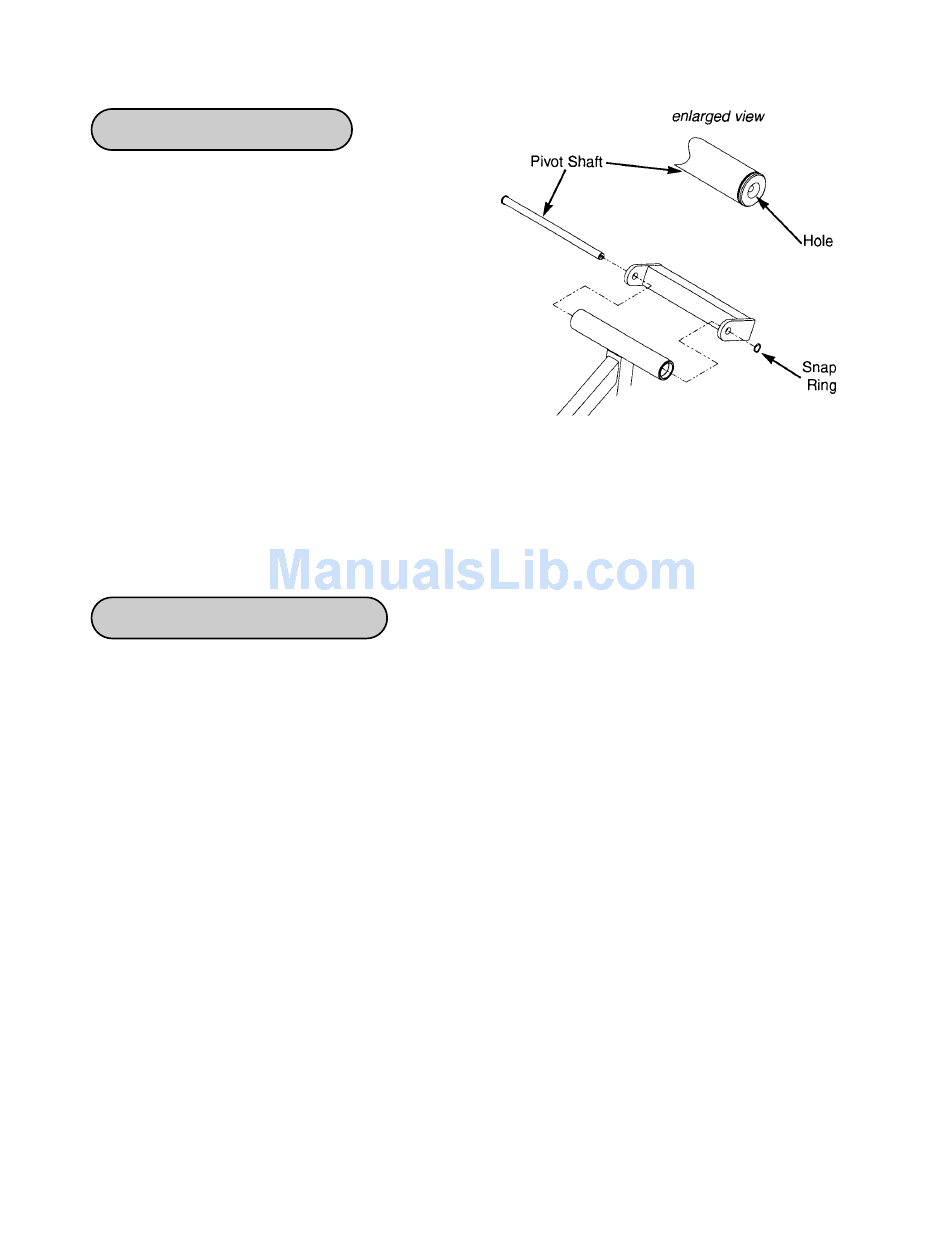

1. Remove snap ring from pivot shaft.
NOTE: If pivot shaft contains a hole at
one end, then remove snap ring from end of pivot shaft containing the hole. Otherwise,
remove snap ring from either end (of shorter pivot shafts that do not contain a hole).
2. Using your thumb, push pivot shaft out. If pivot shaft does not slide out, then place a
punch in the hole end of the pivot shaft and tap the shaft out using a rubber mallet.

Pivot Shaft Installation

1. Slide pivot shaft (end with the hole) into the pivot shaft hole.
2. Slide pivot shaft into position. If needed, use an alignment tool, such as a punch or screw
driver, place alignment tool into the hole of the pivot shaft, and slide pivot shaft into
position.
3. Replace snap ring.
