D. Slide belt through slot in belt clamp.

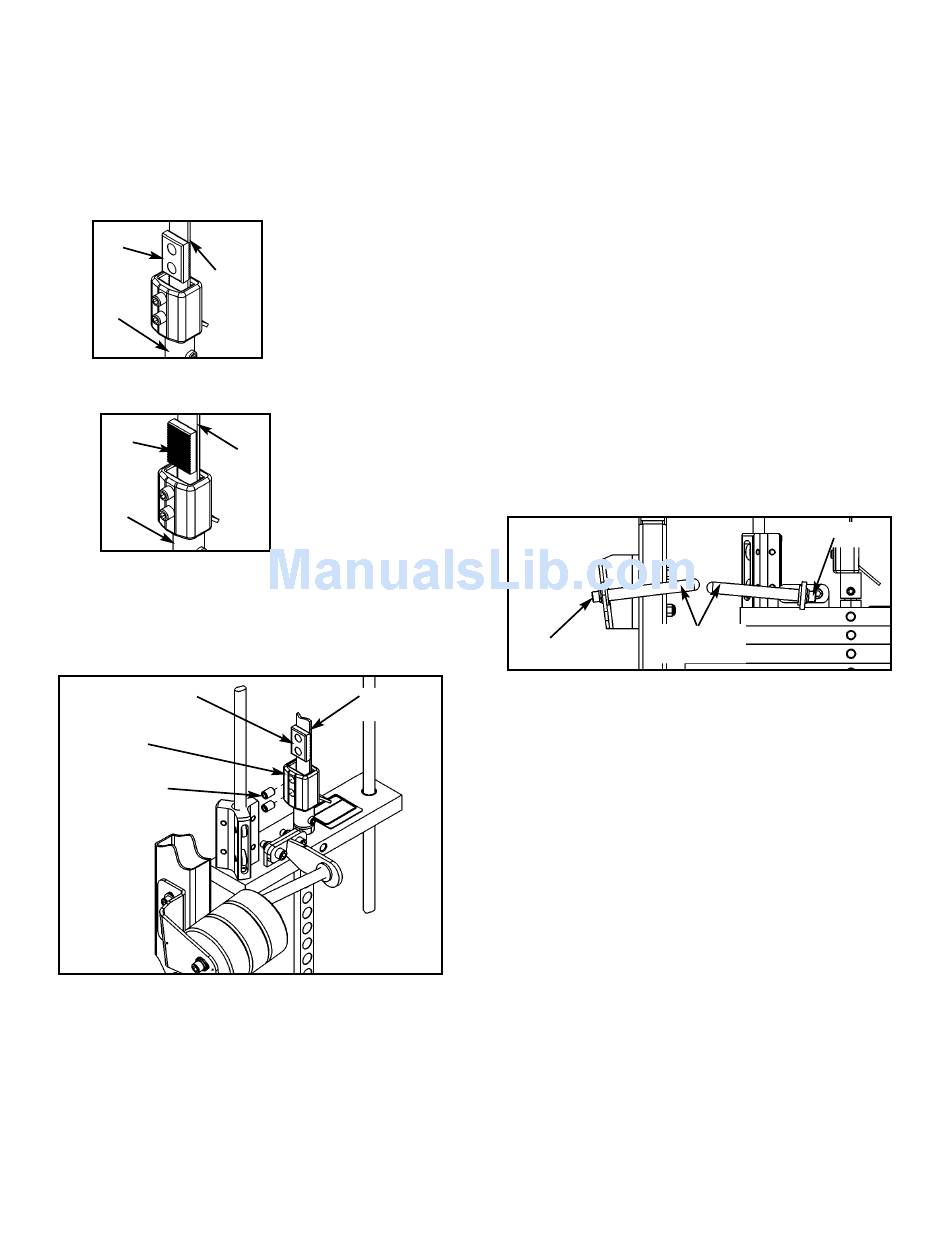

E. Verify belt and insert are installed properly,
as shown in Figure 6. NOTE: Do not install
the insert backwards as shown in Figure 7.
Insert
Belt
Stem
Figure 6
Insert
Belt
Stem
Figure 7
F. Pull belt tight and secure belt to clamp with
the two set screws. See Figure 8.
Belt clamp insert
Belt clamp
Set screw
Figure 8
Cybex VR2 Owner's Manual
Correct belt routing
Wrong
belt routing
Belt
G. Place weight stack pin in each plate to
verify proper installation.
H. Lift top weight up and down and verify that
the belt lies flat and that it is not riding up
on the pulley flange. See Figure 6.
I. Verify belt is rounted straight from the top
pulley bracket to the top weight belt clamp.
4. Aligning increment weight rods.
A. Securely tighten the SHCS securing the
increment weight rod (located on the
weight stack). See Figure 9.
B. Securely tighten the SHCS securing the
other increment weight rod. See Figure 9.
Increment
SHCS
Weight Rod
Figure 9
C. Adjust the height of the increment weight
rod (on the frame) to match the height of
the increment weight rod on the top
weight. Tighten each SHCS securely. See
Figure 10.
SHCS
Delivery
& Installation
Page 5-5
