2-1-3 Optical section

The optical section consists of the scanner, mirror frame and image scanning unit for scanning and the laser scanner unit
for printing.

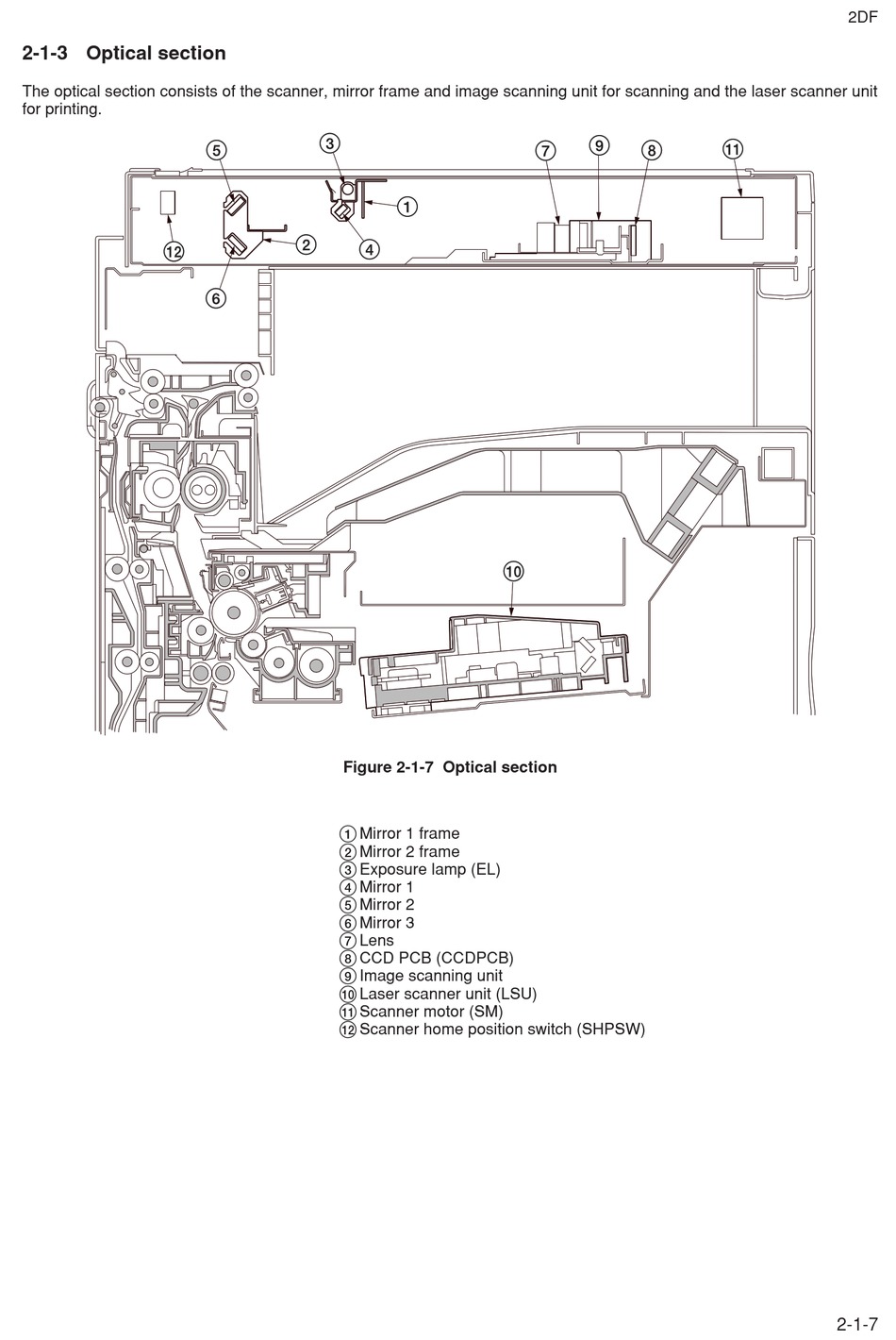

Figure 2-1-7 Optical section
1 Mirror 1 frame
2 Mirror 2 frame
3 Exposure lamp (EL)
4 Mirror 1
5 Mirror 2
6 Mirror 3
7 Lens
8 CCD PCB (CCDPCB)
9 Image scanning unit
0 Laser scanner unit (LSU)
! Scanner motor (SM)
@ Scanner home position switch (SHPSW)
2DF
2-1-7
