5.2 Electrical Data

L1
L2
3 Phase
L3
power
input
50 (+10 V OUT)
+10 V DC
0-10 V DC-
53 (A IN)
0/4-20 mA
54 (A IN)
0-10 V DC-
0/4-20 mA
55 (COM A IN/OUT)
42 0/4-20 mA A OUT / DIG OUT
45 0/4-20 mA A OUT / DIG OUT
12 (+24 V OUT)
18 (DIGI IN)
19 (DIGI IN)
20 (COM D IN)
27 (DIGI IN)
29 (DIGI IN)

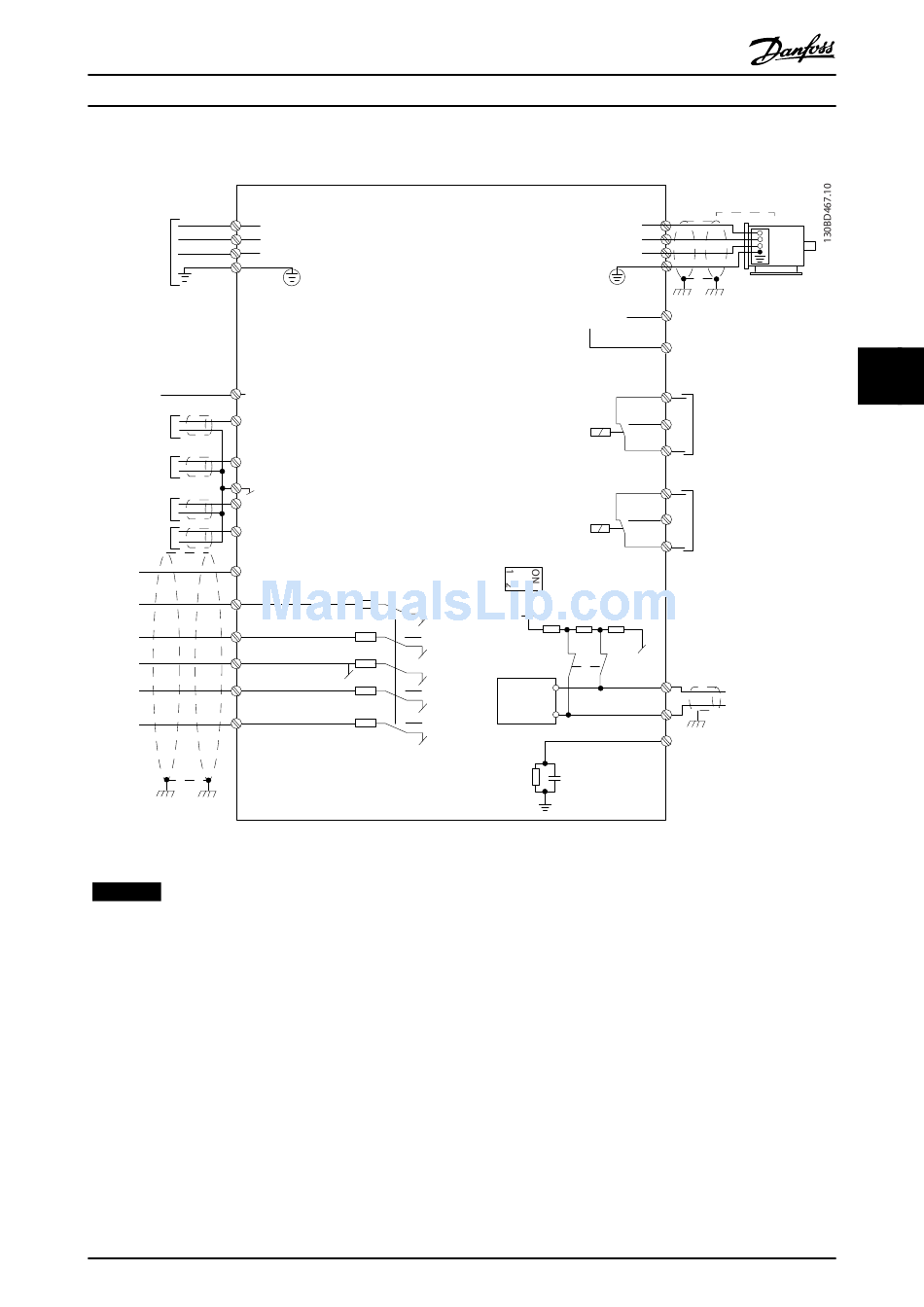

Illustration 5.1 Basic Wiring Schematic Drawing
NOTICE
There is no access to UDC- and
UDC+ on the following units:
IP20 380-480 V 30-90 kW
IP20 200-240 V 15-45 kW
IP20 525-600 V 2.2-90 kW
IP54 380-480 V 22-90 kW
®
VLT HVAC Basic Drive FC 101 Design Guide
PE
24 V (NPN)
O V (PNP)
24 V (NPN)
O V (PNP)
24 V (NPN)
O V (PNP)
24 V (NPN)
O V (PNP)
MG18C502 - Rev. 2013-09-06
U
V
W
PE
UDC-
UDC+
relay2
06
05
04
relay1
03
02
01
Bus ter.
ON=Terminated
OFF=Unterminated
Bus ter.
RS-485
(N PS-485) 69
Interface
(P RS-485) 68
(Com RS-485 ) 61
Motor
Not present on all power sizes
240 V AC 3 A
240 V AC 3 A
RS-485
Do not connect shield to 61
(PNP)-Source
(NPN)-Sink
53
5 5
