How to Install
5
5
Mains-supply
L1
L2
L3
PE
Reinforced protective earth

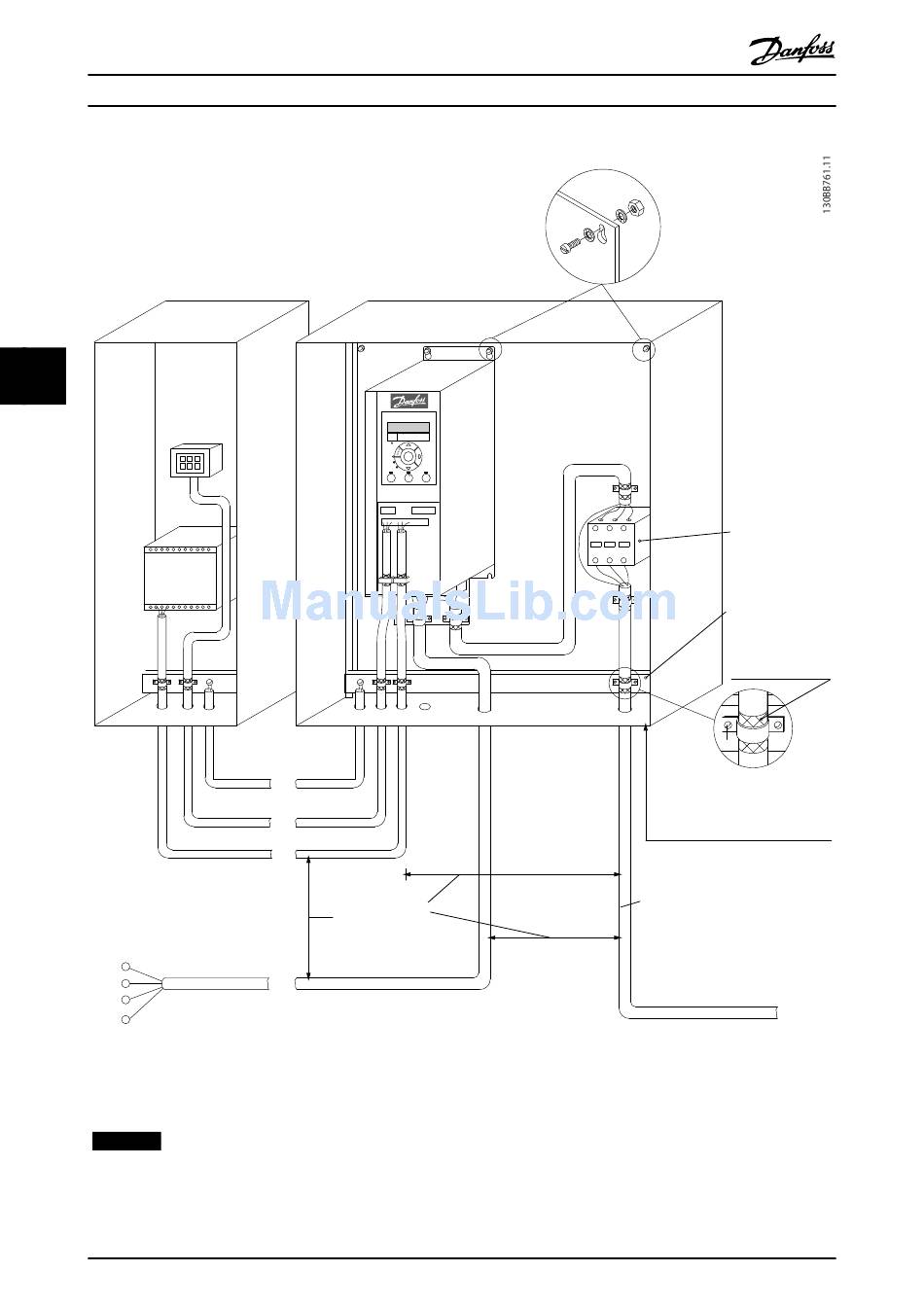

Illustration 5.20 EMC-correct Electrical Installation
NOTICE
For North America use metal conduits instead of shielded cables.
66
PLC etc.
PLC
Min. 16 mm
2
Equalizing cable
Control cables
Min. 200mm
between control
cable, mains cable
and between mains
motor cable
®
VLT
HVAC Basic Drive FC 101 Design Guide
Panel
Status
Quick
Main
Menu
Menu
Menu
Com.
OK
On
Warn.
Alarm
O
Auto
Hand
Reset
On
On
MG18C502 - Rev. 2013-09-06
Output con-
tactor etc.
Earthing rail
Cable insula-
tion stripped
All cable entries in
one side of panel
Motor cable
Motor, 3 phases and
Protective earth
