Product Overview
Using an analog input and 10 V as power supply:
Example: The frequency converter trips when the motor
temperature is too high.
2 2
Parameter set-up:
Set 1-90 Motor Thermal Protection to [2] Thermistor Trip
Set 1-93 Thermistor Source to [2] Analog Input 54
NOTICE
Do not set Analog Input 54 as reference source.
BUS TER.
OFF ON
61 68 69
0/4-20mA A OUT / DIG OUT

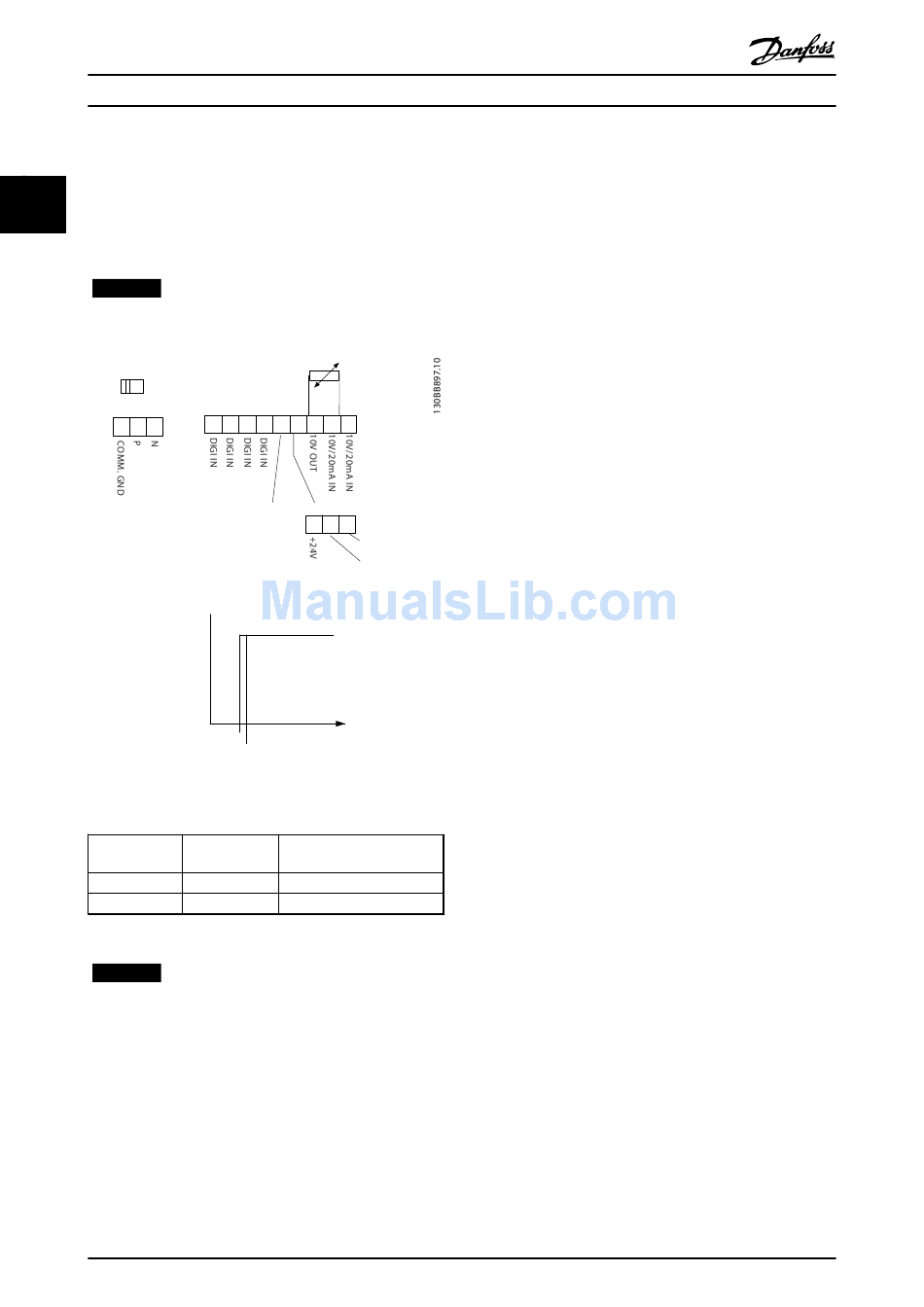

Illustration 2.30 Analog Input/10 V Power Supply
Input
Digital
Analog
Table 2.25 Supply Voltage
NOTICE
Check that the selected supply voltage follows the
specification of the used thermistor element.
40
VLT
18 19 27 29 42 45 50 53 54
0/4-20mA A OUT / DIG OUT
12 20 55
OFF
ON
<3.0 k Ω R
>2.9k Ω
Supply Voltage Threshold
[V] Cut-out Values [Ω]
<800 ⇒ 2.9 k
10
<800 ⇒ 2.9 k
10
®
HVAC Basic Drive FC 101 Design Guide
Summary
With the ETR, the motor is protected for being over-heated
and there is no need for any further motor protection.
That means when the motor is heated up, the ETR timer
controls for how long time the motor can run at the high
temperature before it is stopped to prevent over heating.
If the motor is overloaded without reaching the
temperature, the ETR shuts of the motor.
ETR is activated in 1-90 Motor Thermal Protection.
COM A IN
COM DIG IN
