How to Programme

6.3 Menus

6.3.1 Status Menu

In the Status menu the selection options are:
•
Motor Frequency [Hz], 16-13 Frequency
•
Motor Current [A], 16-14 Motor current
•
Motor Speed Reference in Percentage [%],
16-02 Reference [%]
•
Feedback, 16-52 Feedback[Unit]
•
Motor Power [kW] (if 0-03 Regional Settings is set
to [1] North America, Motor Power is shown in the
unit of hp instead of kW), 16-10 Power [kW] for
kW, 16-11 Power [hp] for hp
•
Custom Readout 16-09 Custom Readout

6.3.2 Quick Menu

Use the Quick Menu to programme the most common
®
VLT HVAC Basic Drive functions. The Quick Menu consists
of:
•
Wizard for open loop applications
•
Closed loop set-up wizard
•
Motor set-up
•
Changes made
®
VLT HVAC Basic Drive FC 101 Design Guide
6.3.3 Start-up Wizard for Open Loop
Applications
The built-in wizard menu guides the installer through the
set-up of the frequency converter to an open loop
application. An open loop application is here an
application with a start signal, analog reference (voltage or
current) and optionally also relay signals (but no feed back
signal from the process applied).

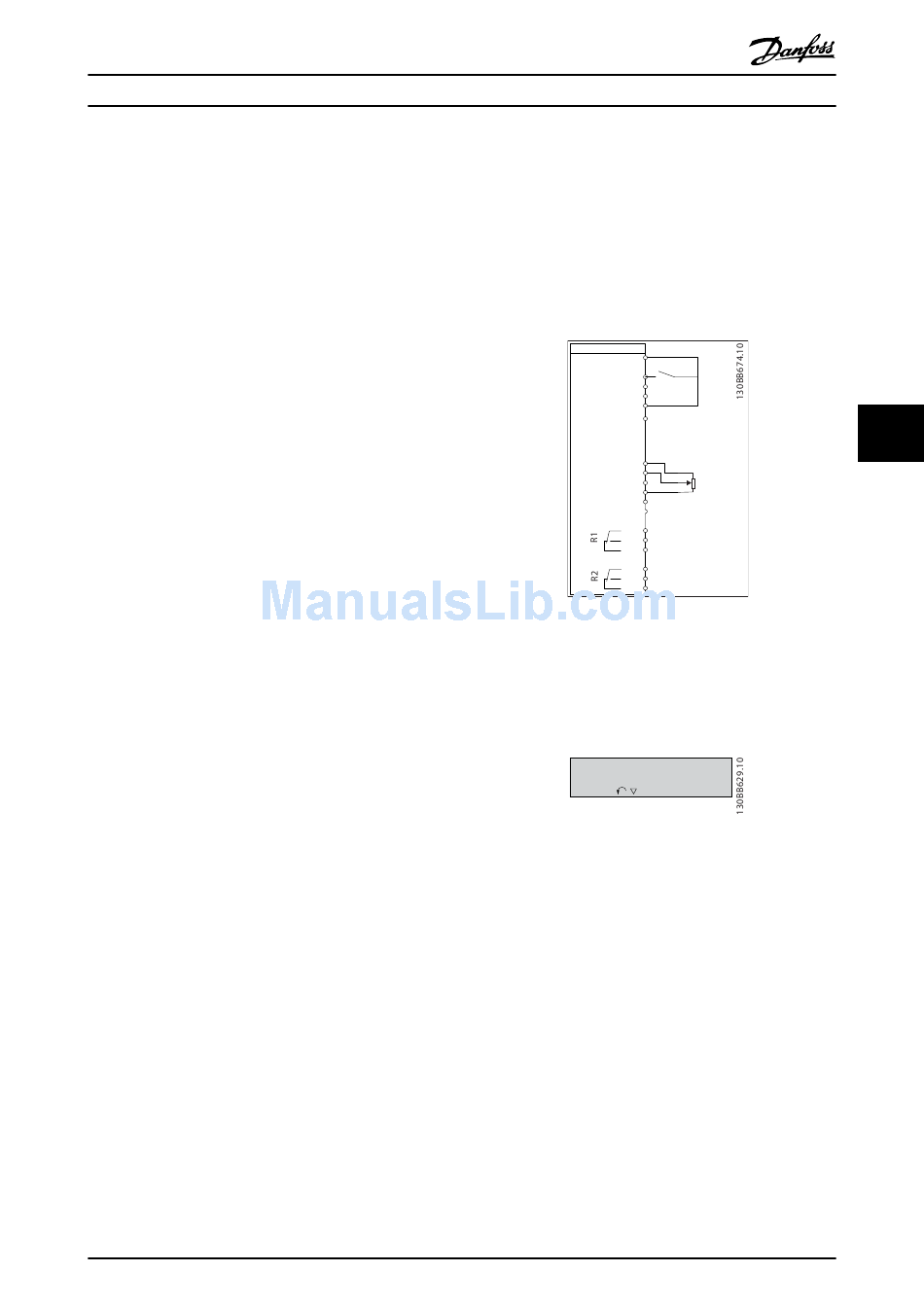

Illustration 6.2 Set-up of the Frequency Converter
The wizard is initially shown after power up until any
parameter has been changed. The wizard can always be
accessed again through the Quick Menu. Press [OK] to start
the wizard. Press [Back] to return to the status screen.
Illustration 6.3 Wizard
MG18C502 - Rev. 2013-09-06
FC
12
+24V
DIG IN
18
Start
19
DIG IN
20
COM DIG IN
27
DIG IN
29
DIG IN
+10V
50
+
A IN
53
Reference
A IN
54
COM
55
-
42
0-10V
A OUT / D OUT
45
A OUT / D OUT
01
02
03
04
05
06
Press OK to start Wizard
Push Back to skip it
Setup 1
6 6
