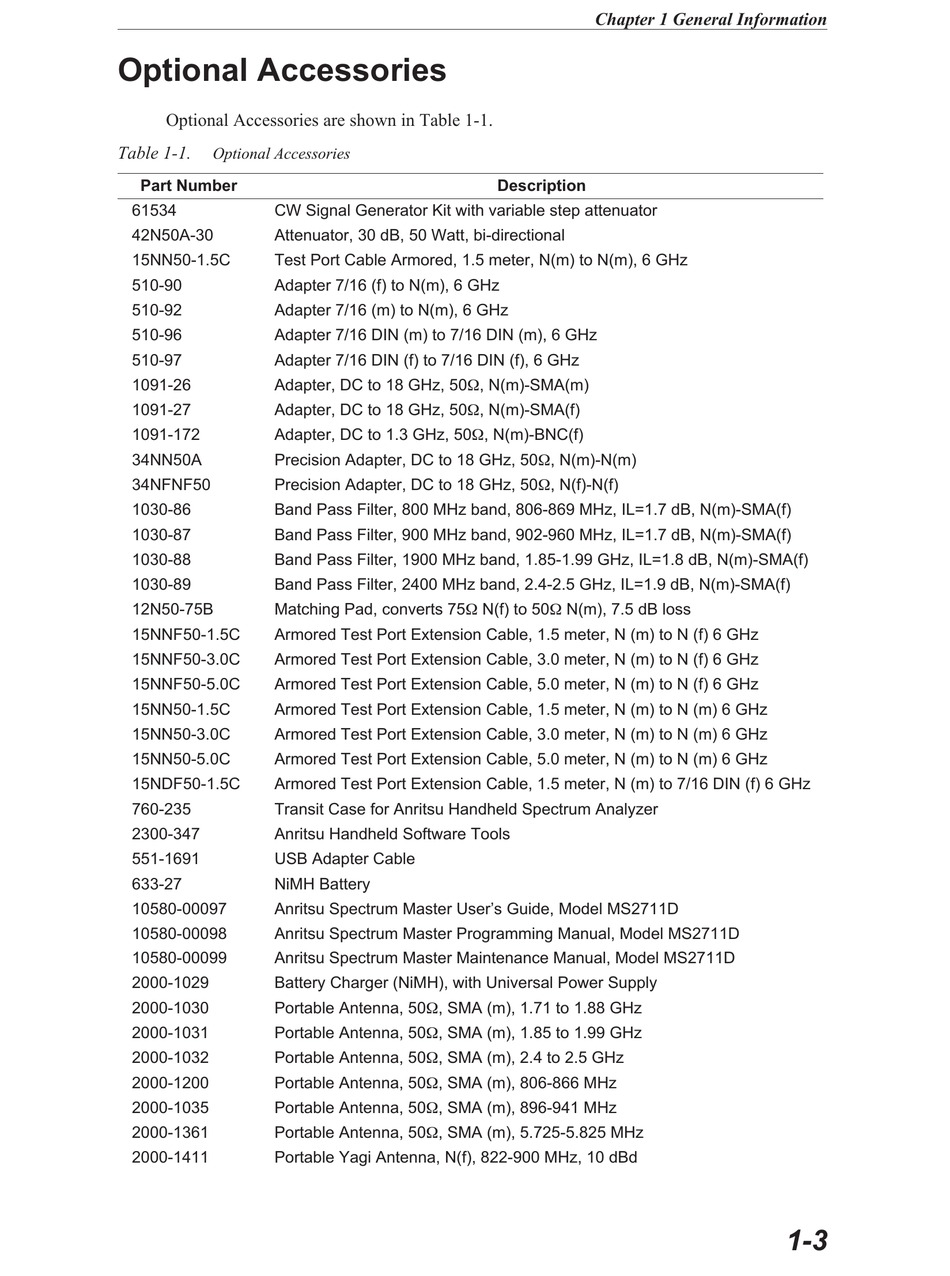

Optional Accessories

Optional Accessories are shown in Table 1-1.
Table 1-1.
Optional Accessories
Part Number
61534 CW Signal Generator Kit with variable step attenuator
42N50A-30 Attenuator, 30 dB, 50 Watt, bi-directional
15NN50-1.5C Test Port Cable Armored, 1.5 meter, N(m) to N(m), 6 GHz
510-90 Adapter 7/16 (f) to N(m), 6 GHz
510-92 Adapter 7/16 (m) to N(m), 6 GHz
510-96 Adapter 7/16 DIN (m) to 7/16 DIN (m), 6 GHz
510-97 Adapter 7/16 DIN (f) to 7/16 DIN (f), 6 GHz
1091-26 Adapter, DC to 18 GHz, 50W, N(m)-SMA(m)
1091-27 Adapter, DC to 18 GHz, 50W, N(m)-SMA(f)
1091-172 Adapter, DC to 1.3 GHz, 50W, N(m)-BNC(f)
34NN50A Precision Adapter, DC to 18 GHz, 50W, N(m)-N(m)
34NFNF50 Precision Adapter, DC to 18 GHz, 50W, N(f)-N(f)
1030-86 Band Pass Filter, 800 MHz band, 806-869 MHz, IL=1.7 dB, N(m)-SMA(f)
1030-87 Band Pass Filter, 900 MHz band, 902-960 MHz, IL=1.7 dB, N(m)-SMA(f)
1030-88 Band Pass Filter, 1900 MHz band, 1.85-1.99 GHz, IL=1.8 dB, N(m)-SMA(f)
1030-89 Band Pass Filter, 2400 MHz band, 2.4-2.5 GHz, IL=1.9 dB, N(m)-SMA(f)
12N50-75B Matching Pad, converts 75W N(f) to 50W N(m), 7.5 dB loss
15NNF50-1.5C Armored Test Port Extension Cable, 1.5 meter, N (m) to N (f) 6 GHz
15NNF50-3.0C Armored Test Port Extension Cable, 3.0 meter, N (m) to N (f) 6 GHz
15NNF50-5.0C Armored Test Port Extension Cable, 5.0 meter, N (m) to N (f) 6 GHz
15NN50-1.5C Armored Test Port Extension Cable, 1.5 meter, N (m) to N (m) 6 GHz
15NN50-3.0C Armored Test Port Extension Cable, 3.0 meter, N (m) to N (m) 6 GHz
15NN50-5.0C Armored Test Port Extension Cable, 5.0 meter, N (m) to N (m) 6 GHz
15NDF50-1.5C Armored Test Port Extension Cable, 1.5 meter, N (m) to 7/16 DIN (f) 6 GHz
760-235 Transit Case for Anritsu Handheld Spectrum Analyzer
2300-347 Anritsu Handheld Software Tools
551-1691 USB Adapter Cable
633-27 NiMH Battery
10580-00097 Anritsu Spectrum Master User's Guide, Model MS2711D
10580-00098 Anritsu Spectrum Master Programming Manual, Model MS2711D
10580-00099 Anritsu Spectrum Master Maintenance Manual, Model MS2711D
2000-1029 Battery Charger (NiMH), with Universal Power Supply
2000-1030 Portable Antenna, 50W, SMA (m), 1.71 to 1.88 GHz
2000-1031 Portable Antenna, 50W, SMA (m), 1.85 to 1.99 GHz
2000-1032 Portable Antenna, 50W, SMA (m), 2.4 to 2.5 GHz
2000-1200 Portable Antenna, 50W, SMA (m), 806-866 MHz
2000-1035 Portable Antenna, 50W, SMA (m), 896-941 MHz
2000-1361 Portable Antenna, 50W, SMA (m), 5.725-5.825 MHz
2000-1411 Portable Yagi Antenna, N(f), 822-900 MHz, 10 dBd
Chapter 1 General Information
Description
1-3
