Chapter 1 General Information

Performance Specifications

Performance specifications are provided in Table 1-2. Unless otherwise noted, specified
values are obtained after a five minute warmup period at a constant ambient temperature.
The typical values are provided for reference, and are not guaranteed.

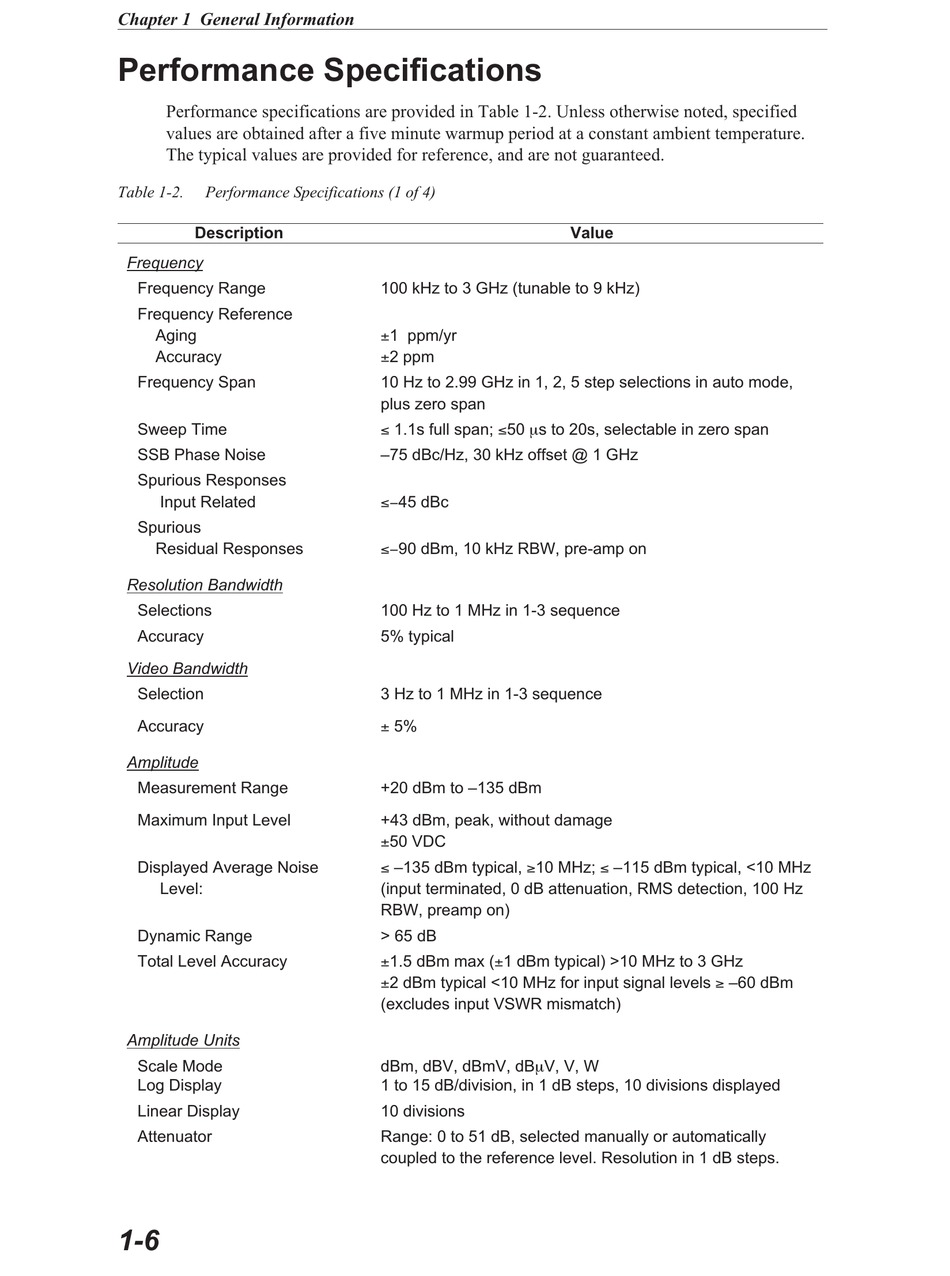

Table 1-2. Performance Specifications (1 of 4)
Description
Frequency
Frequency Range
Frequency Reference
Aging
Accuracy
Frequency Span
Sweep Time
SSB Phase Noise
Spurious Responses
Input Related
Spurious
Residual Responses
Resolution Bandwidth
Selections
Accuracy
Video Bandwidth
Selection
Accuracy
Amplitude
Measurement Range
Maximum Input Level
Displayed Average Noise
Level:
Dynamic Range
Total Level Accuracy
Amplitude Units
Scale Mode
Log Display
Linear Display
Attenuator
1-6
100 kHz to 3 GHz (tunable to 9 kHz)
±1 ppm/yr
±2 ppm
10 Hz to 2.99 GHz in 1, 2, 5 step selections in auto mode,
plus zero span
£ 1.1s full span; £50 ms to 20s, selectable in zero span
–75 dBc/Hz, 30 kHz offset @ 1 GHz
£-45 dBc
£-90 dBm, 10 kHz RBW, pre-amp on
100 Hz to 1 MHz in 1-3 sequence
5% typical
3 Hz to 1 MHz in 1-3 sequence
± 5%
+20 dBm to –135 dBm
+43 dBm, peak, without damage
±50 VDC
£ –135 dBm typical, ³10 MHz; £ –115 dBm typical, <10 MHz
(input terminated, 0 dB attenuation, RMS detection, 100 Hz
RBW, preamp on)
> 65 dB
±1.5 dBm max (±1 dBm typical) >10 MHz to 3 GHz
±2 dBm typical <10 MHz for input signal levels ³ –60 dBm
(excludes input VSWR mismatch)
dBm, dBV, dBmV, dBmV, V, W
1 to 15 dB/division, in 1 dB steps, 10 divisions displayed
10 divisions
Range: 0 to 51 dB, selected manually or automatically
coupled to the reference level. Resolution in 1 dB steps.
Value
