Chapter 5 Field Measurements

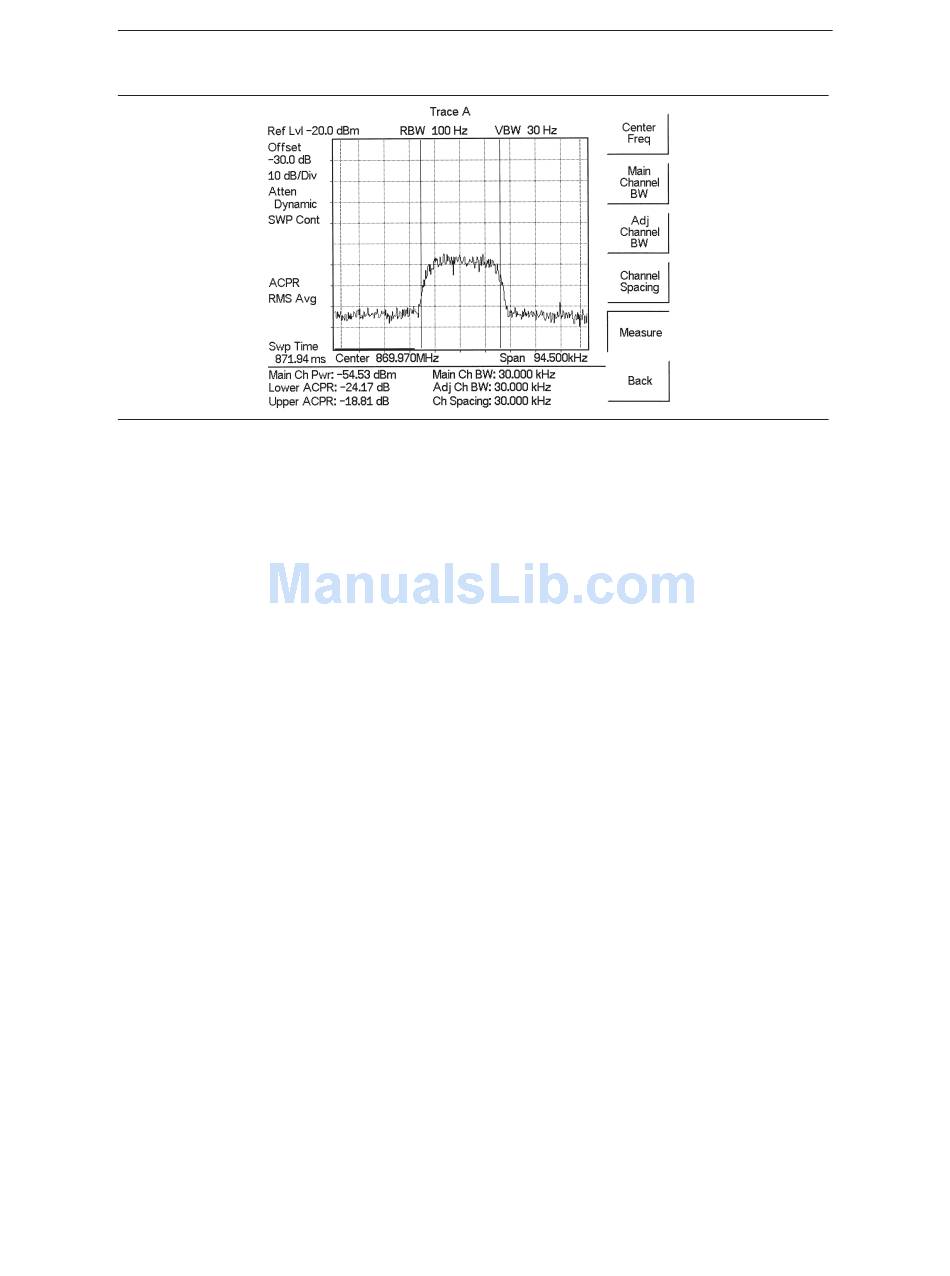

Figure 5-7.
AMPS Adjacent Channel Power Measurement
Adjacent Channel Power Ratio is a constant measurement. Once it is turned on, it will re-
main on until it is turned off by pressing the Measure key again. When the ACPR mea-
surement is on, an ACPR icon appears to the left of the display. ACPR is calculated at the
end of a sweep. An hourglass is displayed as the calculations are performed.
5-14
