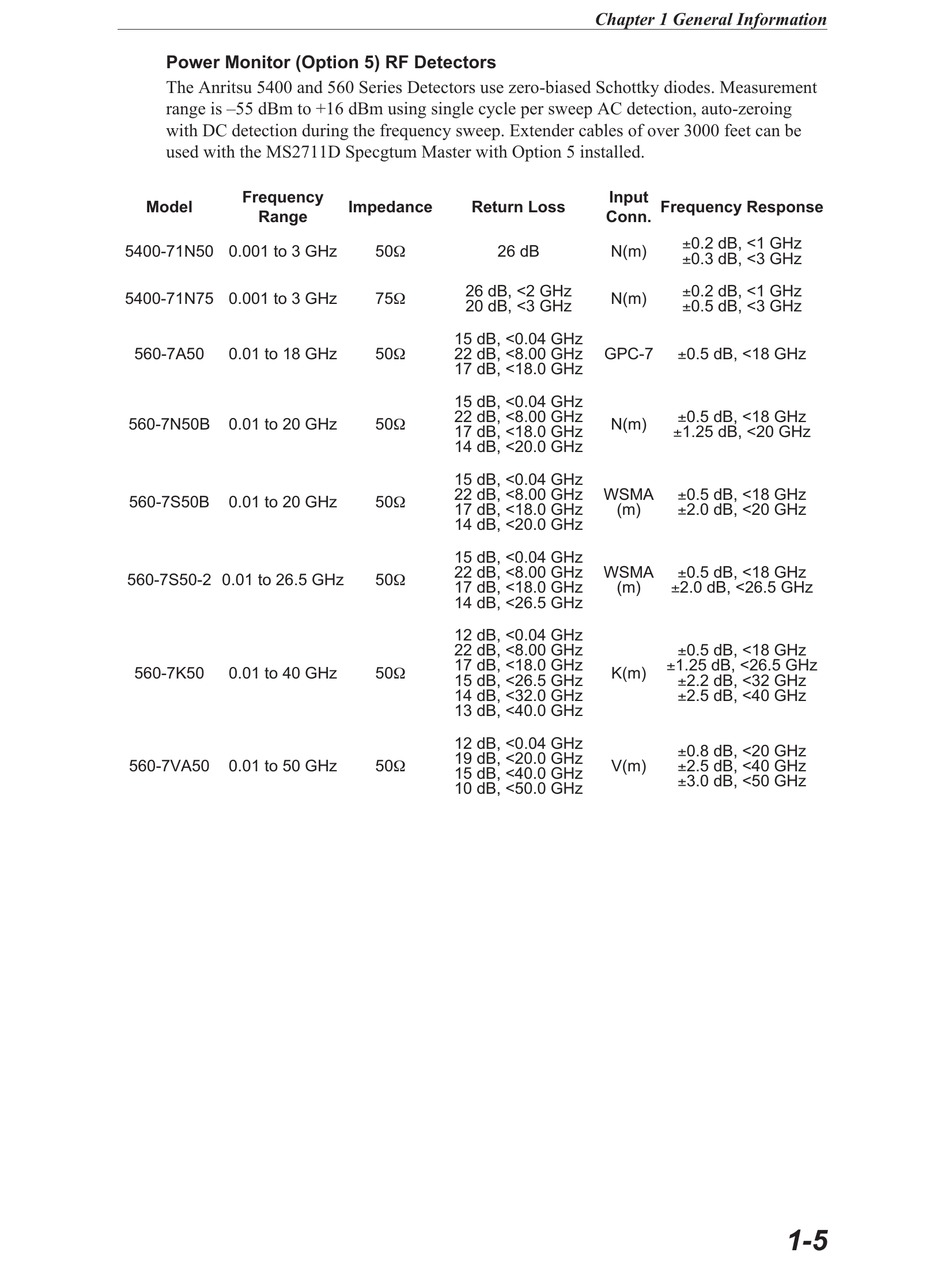

Power Monitor (Option 5) RF Detectors
The Anritsu 5400 and 560 Series Detectors use zero-biased Schottky diodes. Measurement
range is –55 dBm to +16 dBm using single cycle per sweep AC detection, auto-zeroing
with DC detection during the frequency sweep. Extender cables of over 3000 feet can be
used with the MS2711D Specgtum Master with Option 5 installed.
Frequency
Model
Range
5400-71N50 0.001 to 3 GHz
5400-71N75 0.001 to 3 GHz
560-7A50 0.01 to 18 GHz
560-7N50B 0.01 to 20 GHz
560-7S50B 0.01 to 20 GHz
560-7S50-2 0.01 to 26.5 GHz
560-7K50 0.01 to 40 GHz
560-7VA50 0.01 to 50 GHz
Impedance Return Loss
50W 26 dB
26 dB, <2 GHz
75W
20 dB, <3 GHz
15 dB, <0.04 GHz
50W 22 dB, <8.00 GHz
17 dB, <18.0 GHz
15 dB, <0.04 GHz
22 dB, <8.00 GHz
50W
17 dB, <18.0 GHz
14 dB, <20.0 GHz
15 dB, <0.04 GHz
22 dB, <8.00 GHz
50W
17 dB, <18.0 GHz
14 dB, <20.0 GHz
15 dB, <0.04 GHz
22 dB, <8.00 GHz
50W
17 dB, <18.0 GHz
14 dB, <26.5 GHz
12 dB, <0.04 GHz
22 dB, <8.00 GHz
17 dB, <18.0 GHz
50W
15 dB, <26.5 GHz
14 dB, <32.0 GHz
13 dB, <40.0 GHz
12 dB, <0.04 GHz
19 dB, <20.0 GHz
50W
15 dB, <40.0 GHz
10 dB, <50.0 GHz
Chapter 1 General Information
Input
Frequency Response
Conn.
±0.2 dB, <1 GHz
N(m)
±0.3 dB, <3 GHz
±0.2 dB, <1 GHz
N(m)
±0.5 dB, <3 GHz
GPC-7 ±0.5 dB, <18 GHz
±0.5 dB, <18 GHz
N(m)
±1.25 dB, <20 GHz
WSMA ±0.5 dB, <18 GHz
(m) ±2.0 dB, <20 GHz
WSMA ±0.5 dB, <18 GHz
(m) ±2.0 dB, <26.5 GHz
±0.5 dB, <18 GHz
±1.25 dB, <26.5 GHz
K(m)
±2.2 dB, <32 GHz
±2.5 dB, <40 GHz
±0.8 dB, <20 GHz
V(m) ±2.5 dB, <40 GHz
±3.0 dB, <50 GHz
