Chapter 1 General Information

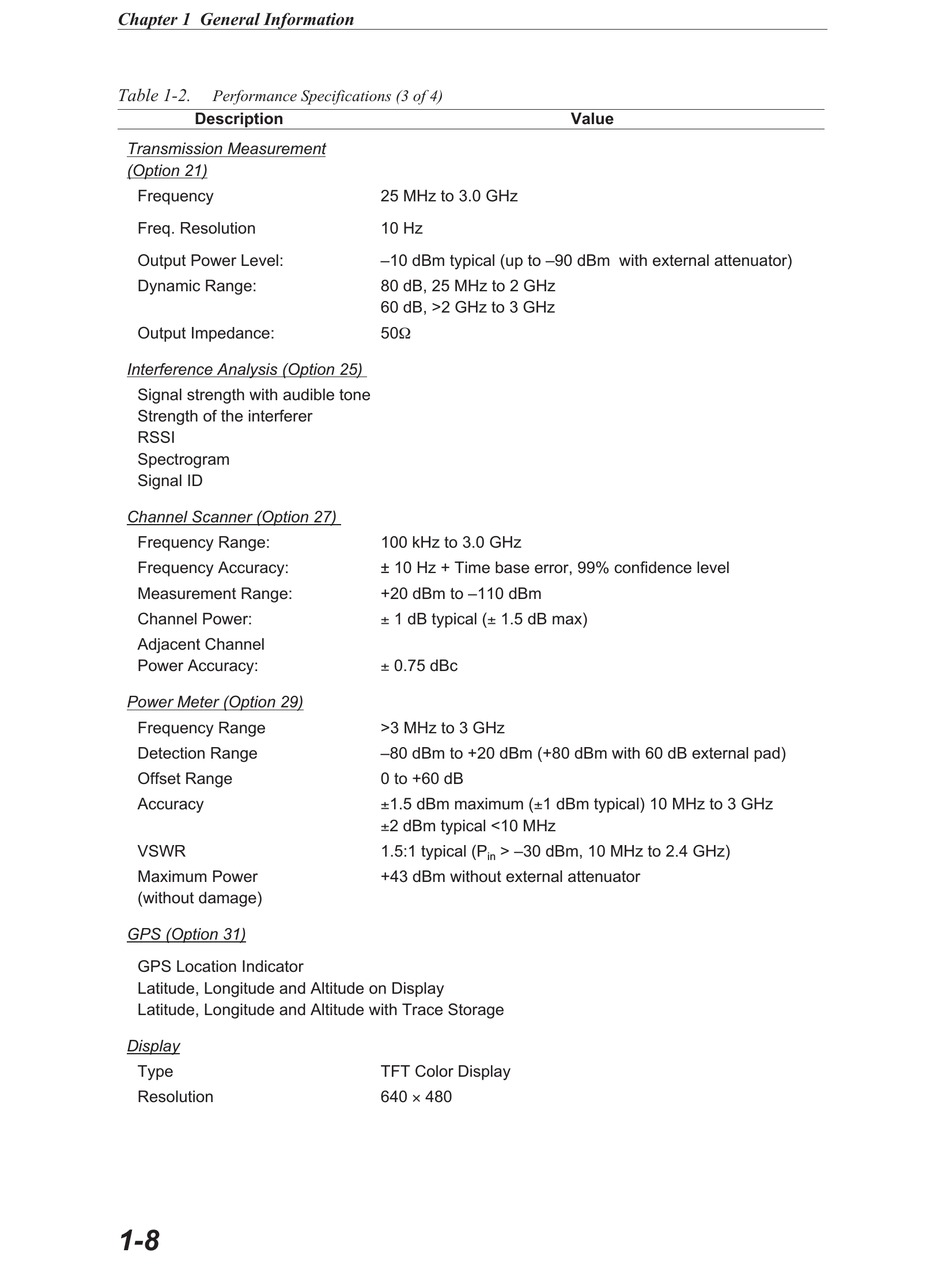

Table 1-2.
Performance Specifications (3 of 4)
Description
Transmission Measurement
(Option 21)
Frequency
Freq. Resolution
Output Power Level:
Dynamic Range:
Output Impedance:
Interference Analysis (Option 25)
Signal strength with audible tone
Strength of the interferer
RSSI
Spectrogram
Signal ID
Channel Scanner (Option 27)
Frequency Range:
Frequency Accuracy:
Measurement Range:
Channel Power:
Adjacent Channel
Power Accuracy:
Power Meter (Option 29)
Frequency Range
Detection Range
Offset Range
Accuracy
VSWR
Maximum Power
(without damage)
GPS (Option 31)
GPS Location Indicator
Latitude, Longitude and Altitude on Display
Latitude, Longitude and Altitude with Trace Storage
Display
Type
Resolution
1-8
25 MHz to 3.0 GHz
10 Hz
–10 dBm typical (up to –90 dBm with external attenuator)
80 dB, 25 MHz to 2 GHz
60 dB, >2 GHz to 3 GHz
50W
100 kHz to 3.0 GHz
± 10 Hz + Time base error, 99% confidence level
+20 dBm to –110 dBm
± 1 dB typical (± 1.5 dB max)
± 0.75 dBc
>3 MHz to 3 GHz
–80 dBm to +20 dBm (+80 dBm with 60 dB external pad)
0 to +60 dB
±1.5 dBm maximum (±1 dBm typical) 10 MHz to 3 GHz
±2 dBm typical <10 MHz
1.5:1 typical (P > –30 dBm, 10 MHz to 2.4 GHz)
in
+43 dBm without external attenuator
TFT Color Display
640 ´ 480
Value
