Chapter 6 Power Measurement
DUT
RF
OUT

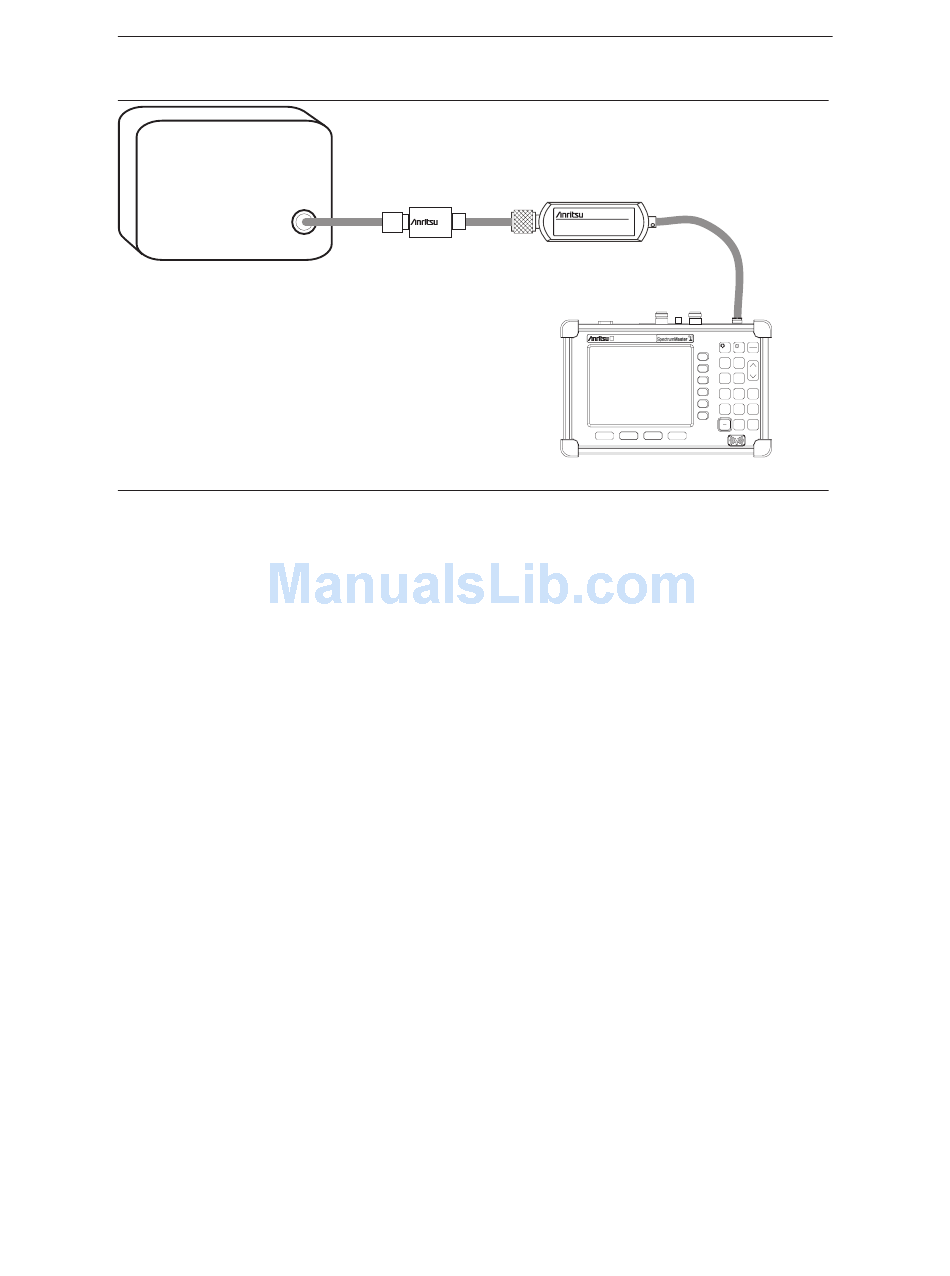

Figure 6-4. Power Monitor Measurement Setup, External Detector
Detectors
The following detectors can be used with the MS2711D Spectrum Master equipped with
Power Monitor Option 5. The 5400 and 560 Series Detectors use zero-biased Schottky di-
odes. Measurements use a single cycle per sweep AC detection, and auto-zeroing with DC
detection during the frequency sweep. Optional extender cables of over 3000 feet can be
used. Contact a local sales representative for special cables.
Table 6-1. Anritsu Detectors
Part Number
560-7A50 10 MHz to 18 GHz, GPC-7, 50 Ohm
560-7N50B 10 MHz to 20 GHz, N(m), 50 Ohm
560-7S50B 10 MHz to 20 GHz, WSMA(m), 50 Ohm
560-7S50-2 10 MHz to 26.5 GHz, WSMA(m), 50 Ohm
560-7K50 10 MHz to 40 GHz, K(m), 50 Ohm
560-7VA50 10 MHz to 50 GHz, V(m), 50 Ohm
5400-71N50 1 MHz to 3 GHz, N(m), 50 Ohm
5400-71N75 1 MHz to 3 GHz, N(m), 75 Ohm
6-8
ATTENUATOR RF DETECTOR
Description
RF DET
PORT
(Option 5)
MS2711D
Spectrum Master
ESCAPE
1 2 CLEAR
TRACE MEAS
3 4
SAVE RECALL
SETUP SETUP
5 6
LIMIT MARKER
ENTER
7 8
SAVE RECALL SINGLE
CONT
DISPLAY DISPLAY
9
0 + /
-
PRINT
ON
SYS
OFF .
MODE FREQ / SPAN AMPLITUDE BW/SWEEP
MS2711D
