Kyocera TASKalfa 420i Service Manual page 237

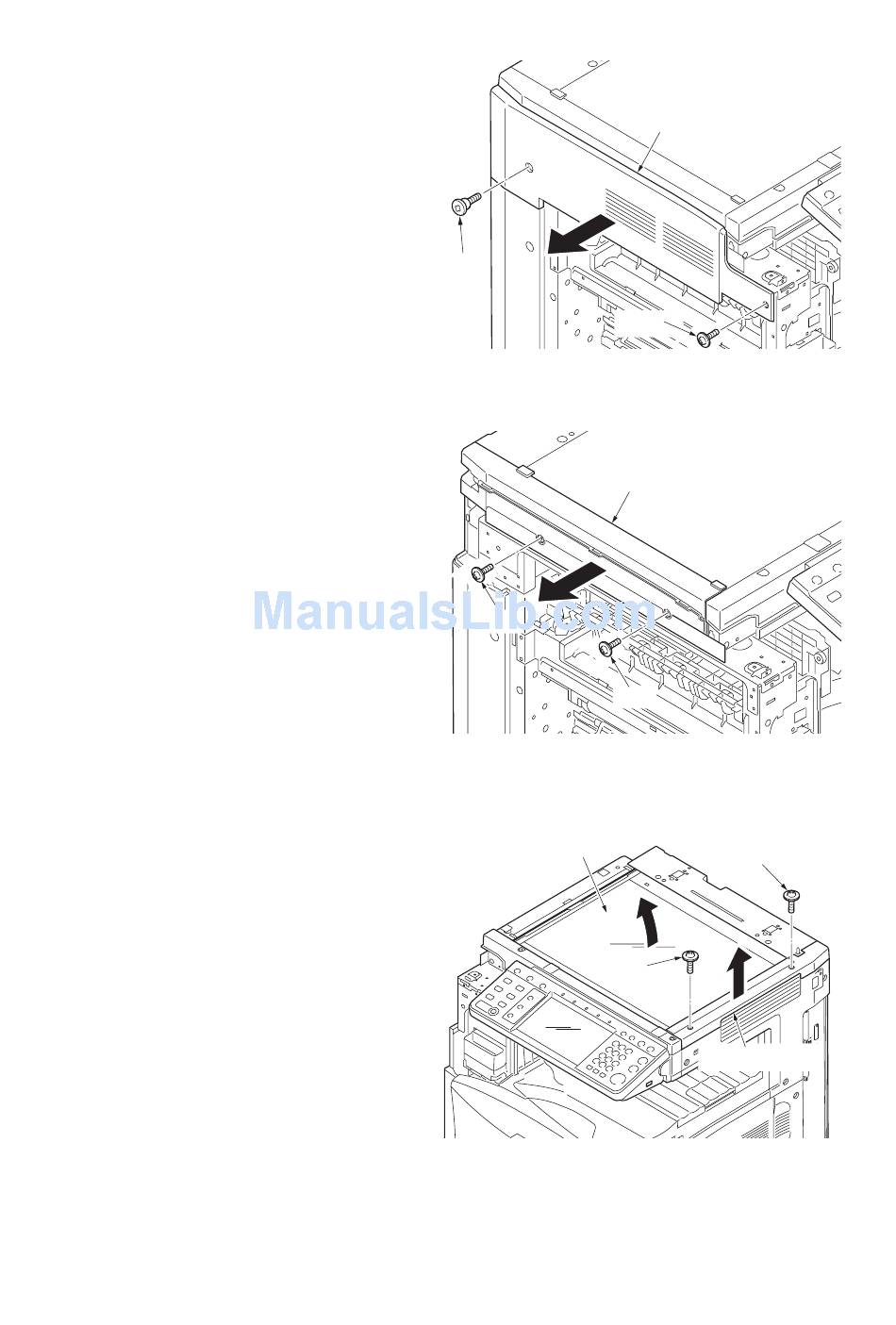

7. Remove the screw and pin.
8. Remove the left upper cover.
9. Remove two screws and then remove the
scanner left cover.
10. Remove two screws and then remove the
scanner right cover.
11. Remove the contact glass.
Pin
Screw
Figure 1-5-28
Scanner left cover
Screw
Screw
Figure 1-5-29
Contact glass
Screw
Figure 1-5-30
Left upper cover
Screw
Scanner right cover
2KR/2KS
D P
A 2
B 1
T 1
O P
1-5-13
