4. Click the Apply button to save and exit the interface.

9.2.6 Configuring Multicast

Purpose:
The multicast can be configured to realize live view for more than the maximum number of cameras through network.
A multicast address spans the Class-D IP range of 224.0.0.0 to 239.255.255.255. It is recommended to use the IP address ranging
from 239.252.0.0 to 239.255.255.255.
Steps:
1. Enter the Network Settings interface.
Menu > Configuration > Network
2. Select the More Settings tab to enter the More Settings interface.
3. Set Multicast IP. When adding a device to the CMS (Client Management System) software, the multicast address must be
the same as the device's multicast IP.
Click the Apply button to save and exit the interface.
4.

9.2.7 Configuring RTSP

Purpose:
The RTSP (Real Time Streaming Protocol) is
systems to control streaming media servers.
Steps:
1. Enter the Network Settings menu by clicking Menu > Configuration > Network.
2. Select the More Settings tab to enter the More Settings men.
3. Enter the RTSP port in the text field of RTSP Service Port. The default RTSP port is 554, and you can change it according to
different requirements.
4. Click the Apply button to save and exit the menu.
92

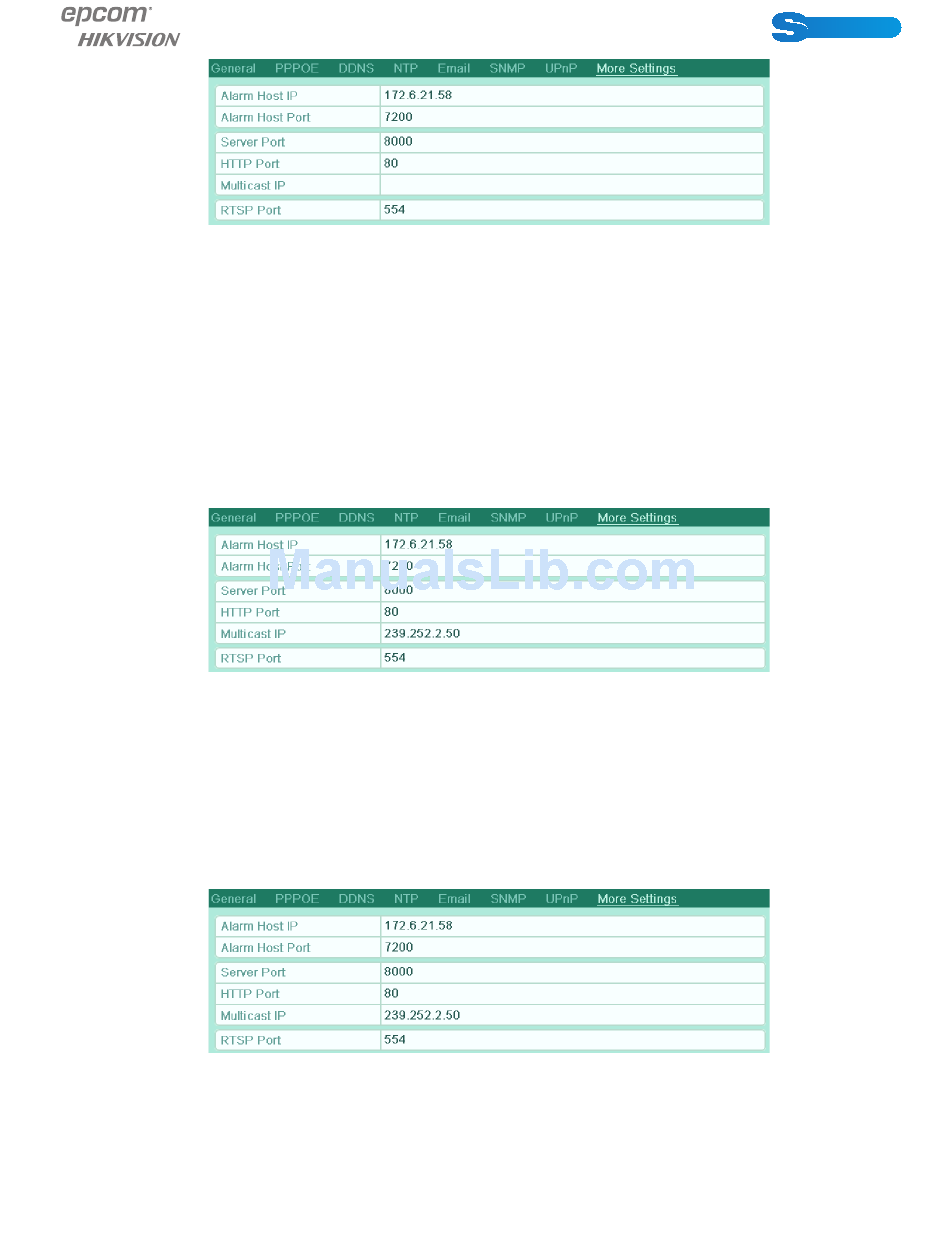

Figure 9.17 Configure Alarm Host
Figure 9.18 Configure Multicast
a
network control protocol designed for use in entertainment and communications
Figure 9.19 RTSP Settings Interface
