Configuring More Settings

Steps:
1. Enter the General Settings interface.
Menu > Configuration > General
2. Click the More Settings tab to enter the More Settings interface.
3. Configure the following settings:
•
Device Name: Edit the name of device.
•
Device No.: Edit the serial number of device. The Device No. can be set in the range of 1~255, and the default No.
is 255.
•
CVBS Output Brightness: Adjust the video output brightness.
•
Operation Timeout: Set timeout time for menu inactivity. E.g., when the timeout time is set to 5 Minutes, the sys-
tem will exit from the current operation menu to live view screen after 5 minutes of menu inactivity.
•
Menu Output Mode: Select the menu output mode to Auto, HDMI/VGA or Main CVBS.
 When you select Auto, the device can automatically detect the HDMI/VGA output as the main output and the
CVBS output as the auxiliary output when it starts up.
 After you have changed the output mode, you should restart the device to activate the new settings.
•
Main CVBS Scaling: Enable/disable video output scaling for main CVBS video output.
4. Click the Apply button to save the settings.
1.4
123

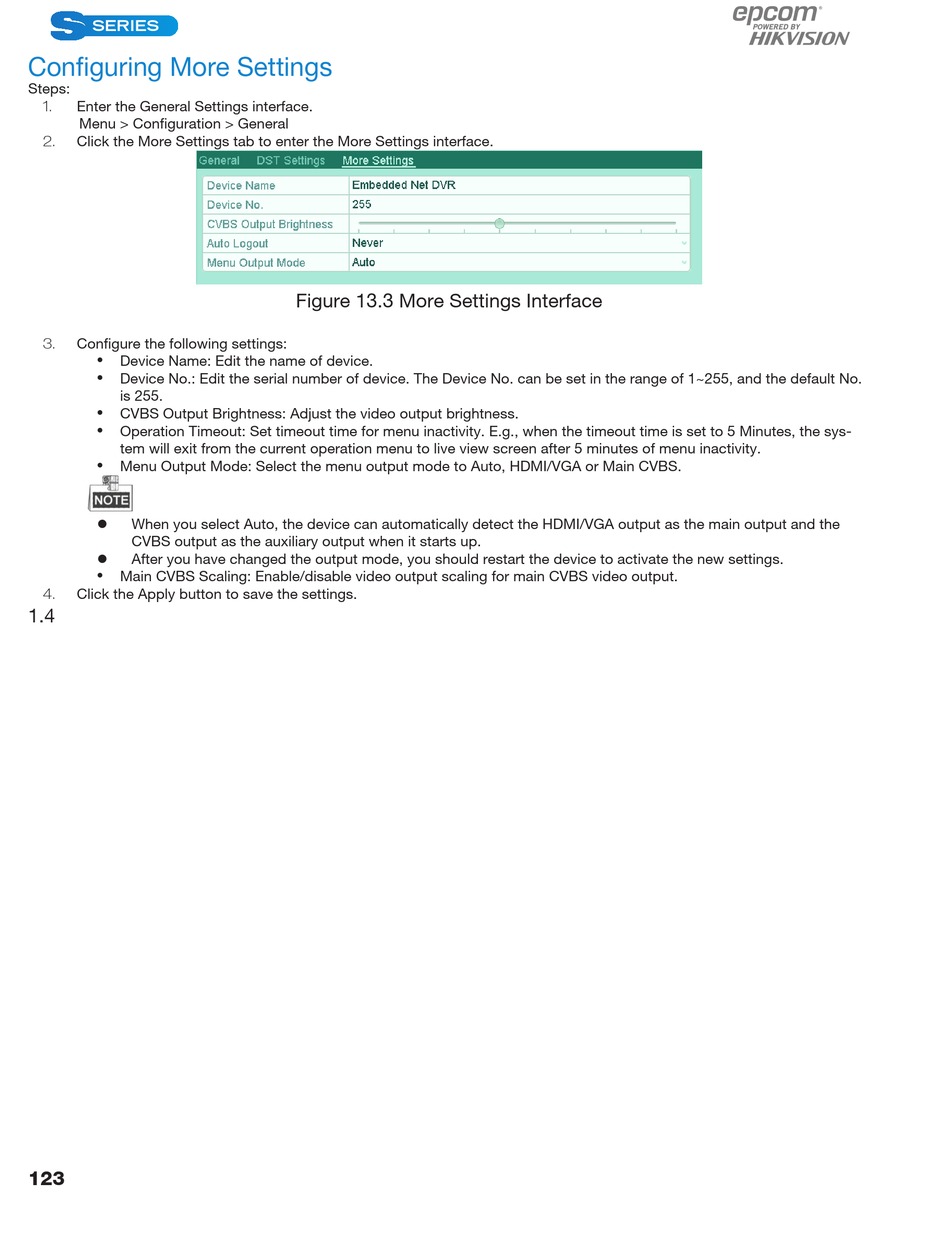

Figure 13.3 More Settings Interface
