3.3 Adjusting Live View Settings

Purpose:
Live View settings can be customized according to different needs. You can confi gure the output interface, dwell time for screen
to be shown, mute or turning on the audio, the screen number for each channel, etc.
Steps:
1. Enter the Live View Settings interface.
Menu> Confi guration> Live View
The settings available in this menu include:
 Video Output Interface: Select the output to confi gure the settings for. Two output interfaces are selectable:
VGA/HDMI and Main CVBS.
 Live View Mode: Select different window-division mode from the drop-down list.
 Dwell Time: The time in seconds to dwell between switching of channels when enabling auto-switch in Live
View.
 Enable Audio Output: Enable/disable audio output for the selected video output.
When the HDMI/VGA output interface is used as the main video output and the Audio Output for the HDMI/

VGA output interface is enabled, the VGA audio and AUDIO OUT can be used for live view, playback and
two-way audio.
When the HDMI/VGA output is used as the main video output and the Audio Output for the HDMI/VGA ou-

tput interface is disabled, the VGA output provides no audio and the AUDIO OUT is used for two-way audio.
When the CVBS output is used as the main video output, the HDMI/VGA audio is provided for Aux video

output in live view, and the AUDIO OUT is used as the main video output (for live view, playback or two-way
audio).
Event Output: Select the output to show event video.

Full Screen Monitoring Dwell Time: The time in seconds to show alarm event screen.

2. Setting Came ra Order
To set the camera order:
1) Click the View tab to enter the camera order settings interface.
2) Select an output interface and select a screen layout.
27

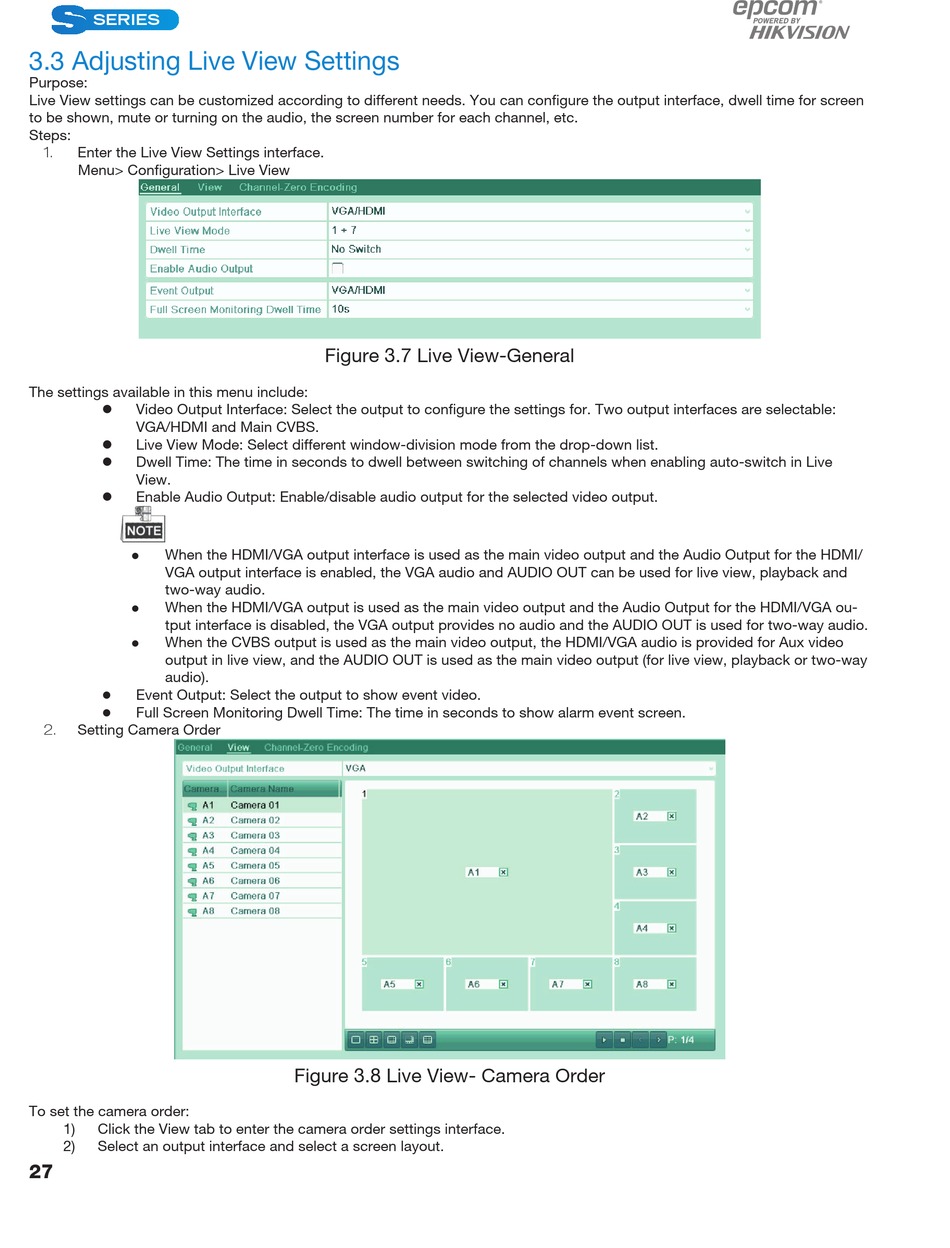

Figure 3.7 Live View-General
Figure 3.8 Live View- Camera Order
