5.1 Confi guring Encoding Parameters
Purpose:
By confi guring the encoding parameters you can defi ne the transmission stream type, the reso-
lution and so on.
Before you start:
1. Make sure that the HDD has already been installed. If not, please install a HDD and initialize it. (Menu>HDD>General)
2. Check the storage mode of the HDD
1) Click Advanced to check the storage mode of the HDD.
2) For Quota storage mode, please set the maximum record capacity. For detailed informa-
tion, see Chapter 10.2 Confi guring Quota Mode. tion, see Chapter 10.2 Confi guring Quota Mode.
S teps:
1. Enter the Record settings interface to confi gure the encoding parameters:
Menu>Record>Encoding Menu>Record>Encoding
2. Set encoding parameters for main stream
1) Select Record to enter the main stream settings interface.
2) Select the camera for confi guration.
3) Confi gure the following parameters for the Main Stream (Normal) and the Main Stream (Event):
• Stream Type: Set the stream type to be Video or Video & Audio.
• Resolution: Set recording at resolution of WD1, 4CIF, 2CIF, CIF or QCIF.
• Bitrate Type: Set the bitrate type to be Variable or Constant.
Video Quality: Set the video quality of recording, with 6 levels confi gurable.
•
• Frame Rate: Set the frame rate of recording.
33

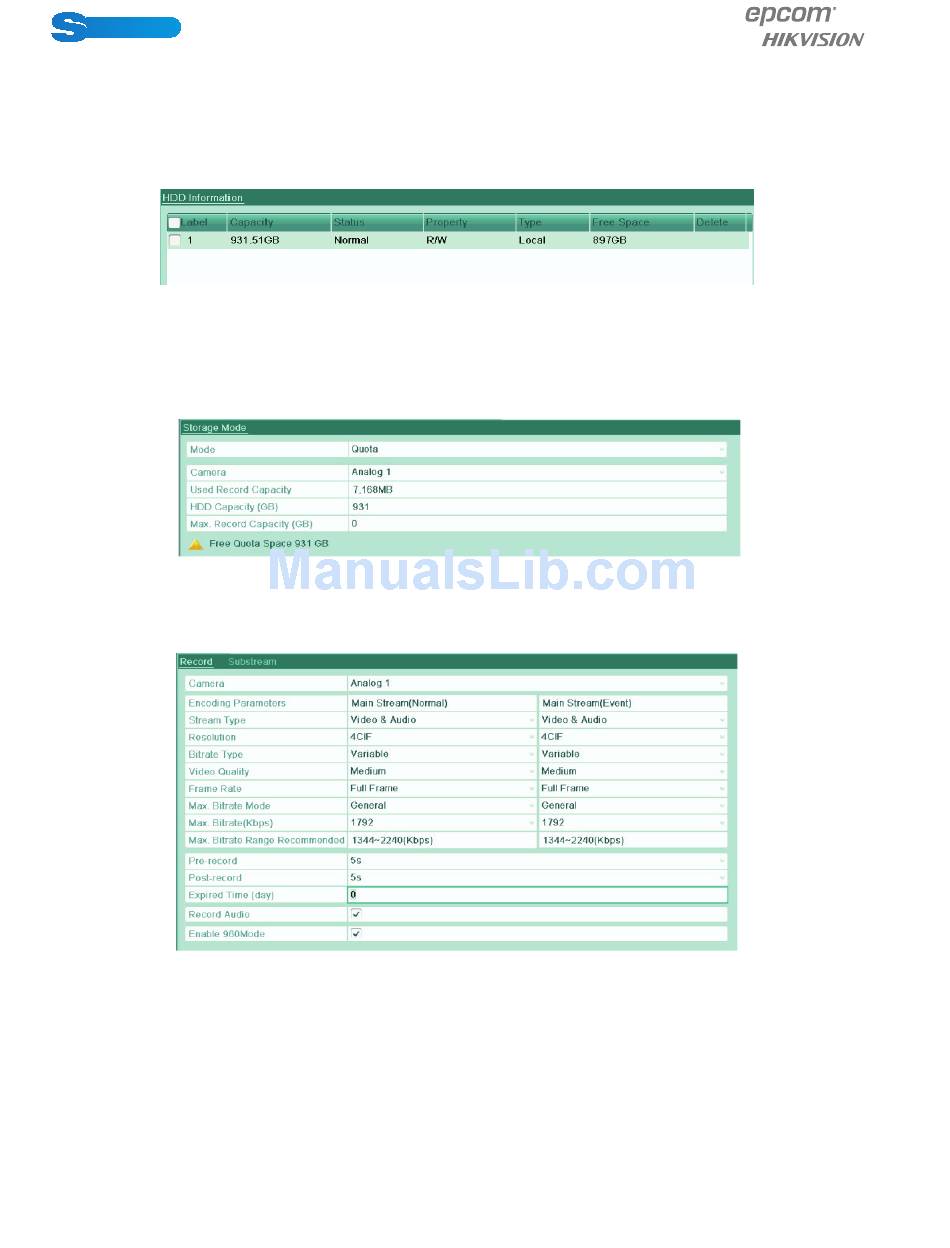

Figure 5.1 HDD- General
Figure 5.2 HDD- Advanced
Figure 5.3 Encoding Parameters-Main Stream
