5.3 Configuring Motion Detection Record

Purpose:
Follow the steps to set the motion detection parameters. In the live view mode, once a motion detection event takes place, the de-
vice can analyze it and perform some response actions to handle it. Enabling motion detection function can trigger certain channels
to start recording, or trigger full screen monitoring, audio warning, notify the surveillance center and so on. In this chapter, you can
follow the steps to schedule a record which triggered by the detected motion.
Steps:
1. Enter the Motion Detection interface.
Menu>Camera>Motion
2. Configure Motion Detection:
1) Choose camera you want to configure.
2) Check the checkbox after Enable Motion Detection.
3) Drag and draw the area for motion detection by mouse. If you want to set the motion detection for all the area shot by
the camera, click Full Screen. To clear the motion detection area, click Clear.
By default, the motion detection is configured in full screen.
4) Click Handling, and the message box for channel information will pop up.
38

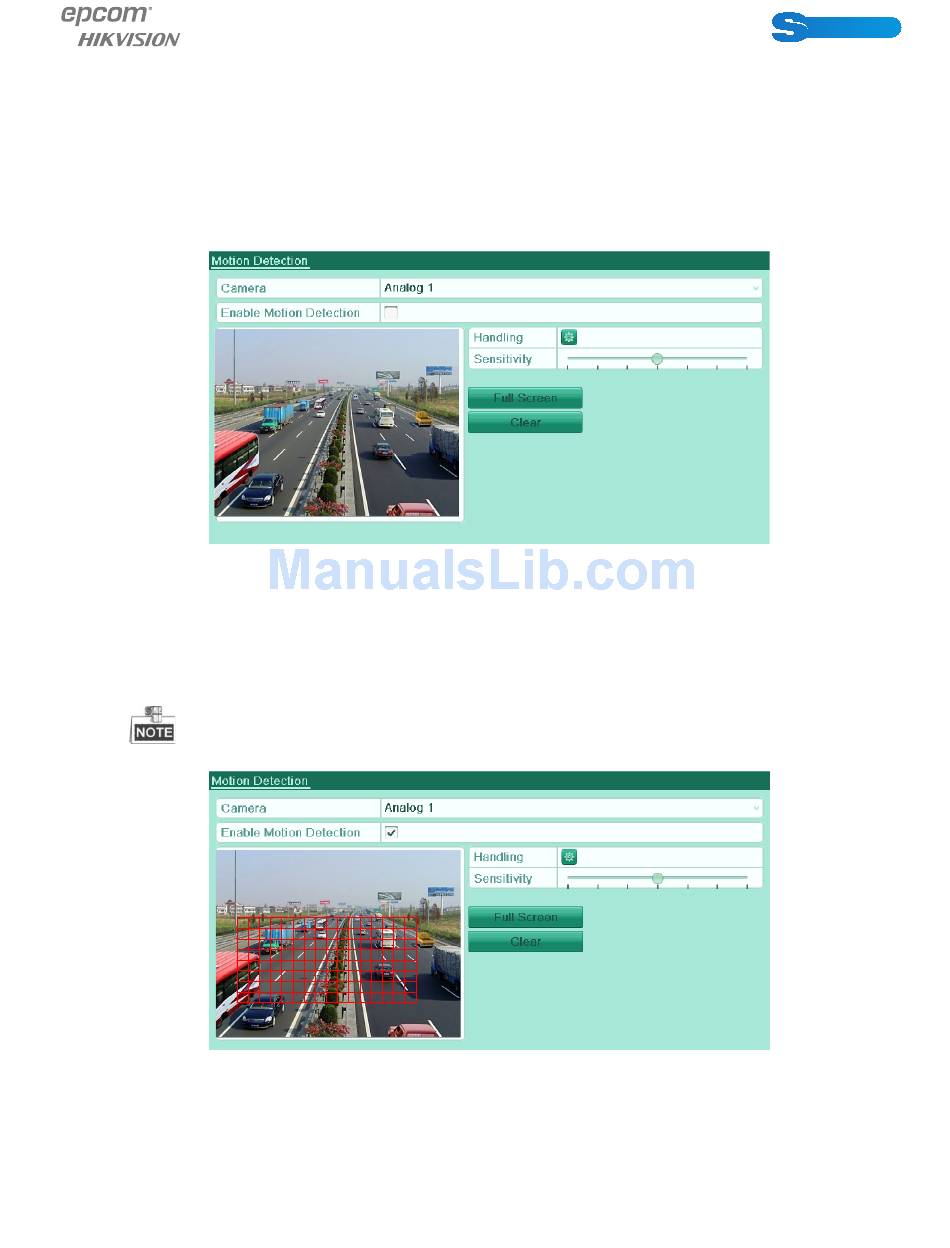

Figure 5.12 Motion Detection
Figure 5.13 Motion Detection- Area Settings
