9 .4.3 Checking Network Status

Purpose:
You can also c heck the network status and quick set the network parameters in this interface.
Steps:
Click Status on the right bottom of the page.
If the network is normal, the following message box pops out.
If the message box pops out with other information instead of this one, you can click Network button to show the quick setting
interface of the network parameters.
98

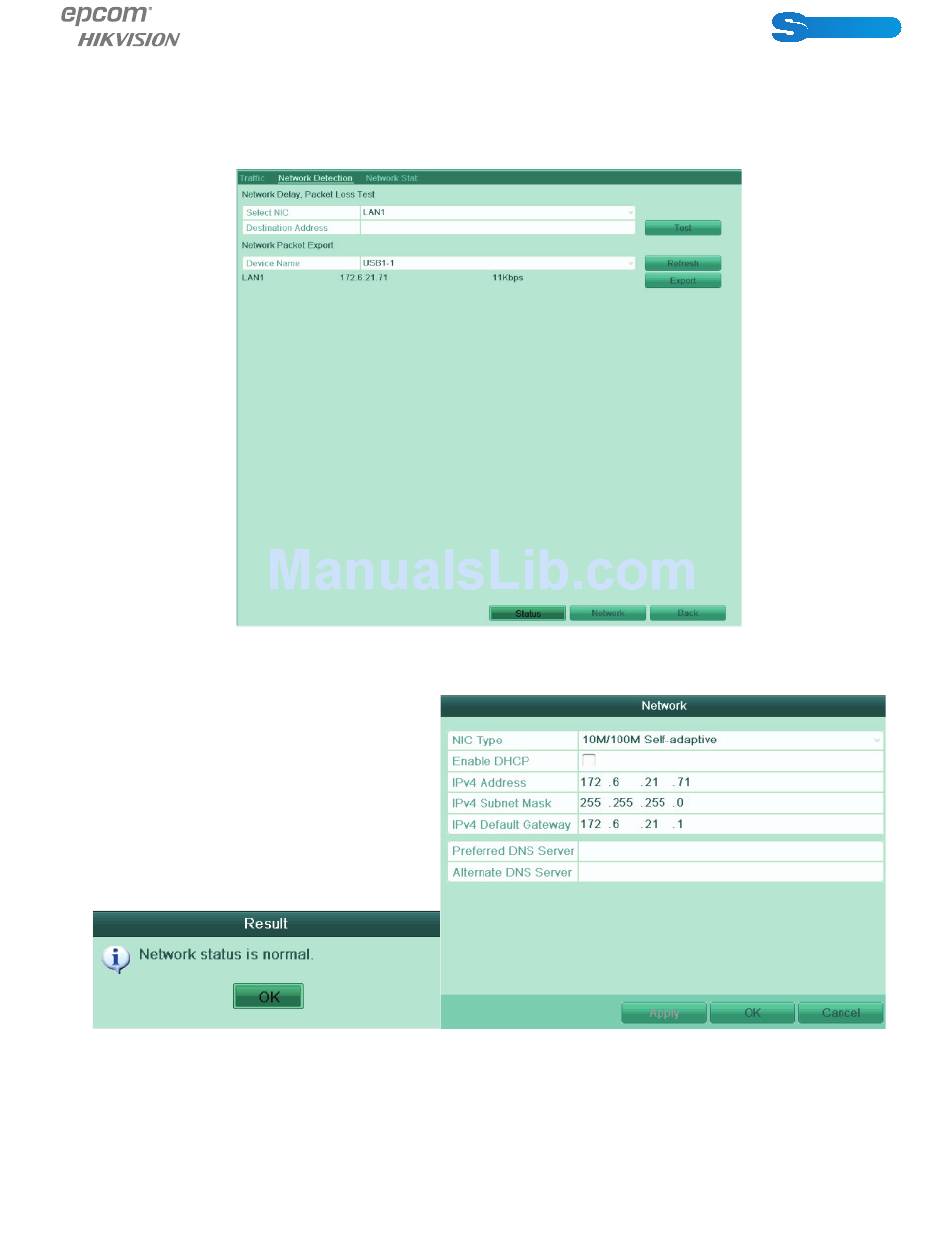

Figure 9.30 Checking Network Status
Figure 9.31 Network Status Checking Result
