6. Select record fi les to export.
You can enter the Export interface by the following two ways:
 Select motion detection event (s) from the list and click Quick Export button to enter the Export interface, as shown in
Figure 7.9.
 (1) Click the Details button to enter the interface with detailed information of the record fi le, e.g., start time, end time, fi le
size, etc. The size of the currently selected fi les is displayed in the lower-left corner of the window.
(2) Select record fi le (s) from the list and click Export button to enter the Export interface, as shown in Figure 7.10.
7. Export the selected record fi les.
Click the Export button and start backing up.
If the inserted USB device is not recognized:
•
Click the Refresh button.
•
Reconnect device.
•
Check for compatibility from vendor.
You can also format USB fl ash drive or USB HDDs via the device.
69

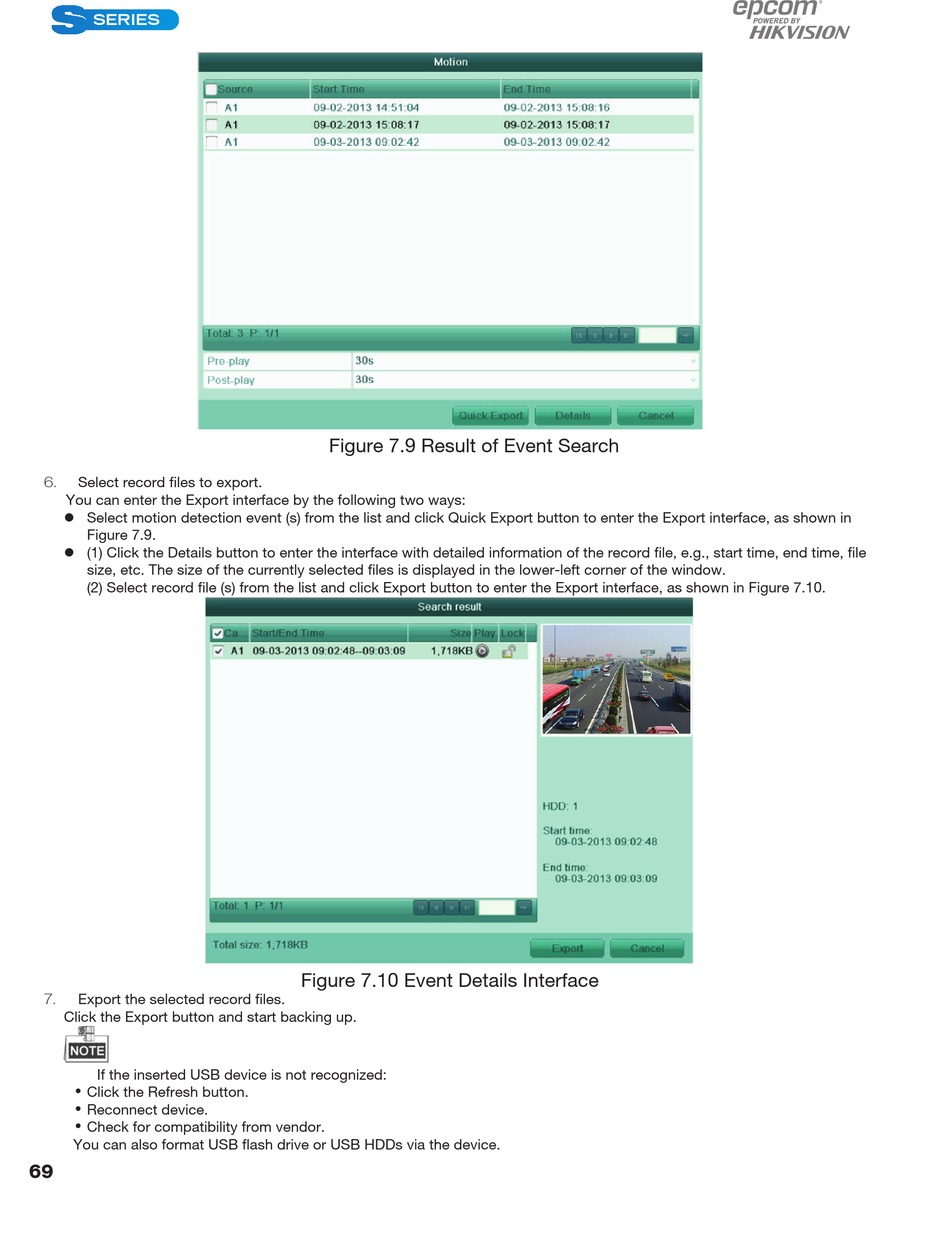

Figure 7.9 Result of Event Search
Figure 7.10 Event Details Interface
