5.
Click Next button to enter the HDD Management window, shown in Figure 2.6.
To initialize the HDD, click the Init button. Initialization removes all the data saved in the HDD.
6.
Click Next button to enter the Record Settings window, as shown in Figure 2.7.
1)
Select the camera to configure.
2)
Check the checkbox to enable Start Recording.
3) Select the recording mode to Normal or Motion Detection.
4)
Click Copy to copy the record settings of the current camera to other camera (s) if needed, as shown in Figure 2.8.
19

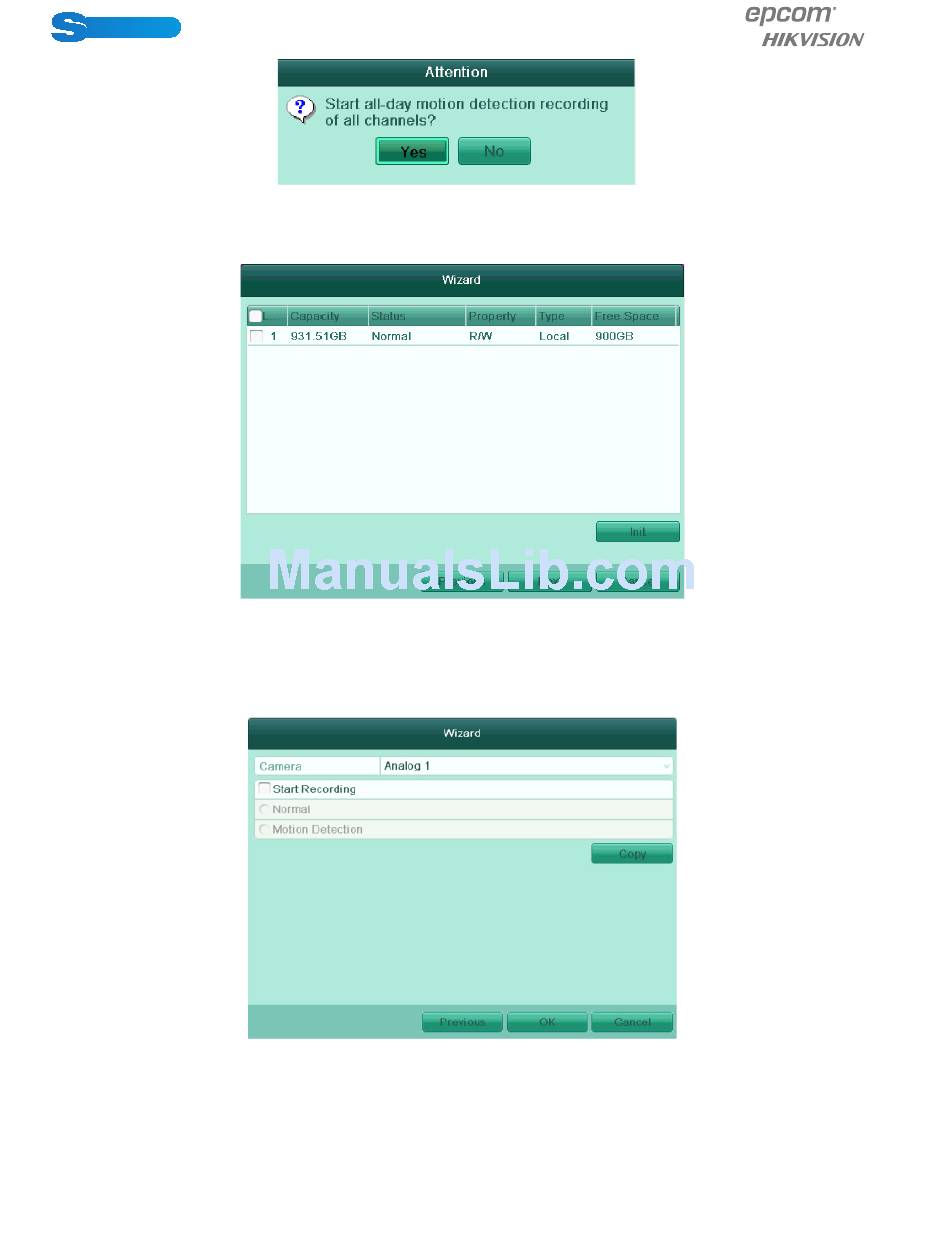

Figure 2.5 Network Configuration
Figure 2.6 HDD Management
Figure 2.7 Record Settings
