If the corresponding camera supports intelligent function, the Reboot Intelligence option is included when right-clicking mouse
on this camera.

3.2.2 Using an Auxiliary Monitor

Certain features of the Live View are also available while in an Aux monitor. These features include:
•
Single Screen: Switch to the single full screen by choosing channel number from the dropdown list.
•
Multi-screen: Adjust the screen layout by choosing from the dropdown list.
•
Previous Screen: Switch to the previous screen.
•
Next Screen: Switch to the next screen.
•
Menu Output Mode: Set the video output mode to Standard, Bright, Gentle or Vivid.
•
Main Monitor: Switch to the Main Output mode and the operation for the auxiliary output is disabled.
In the live view mode of the main output monitor, the menu operation is not available while Aux output mode is enabled.

3.2.3 Main/Aux Output Switching

When the HDMI/VGA output is configured as the main output, you can select Aux Monitor option from the right-click menu or per-
form the following way to switch to CVBS output as the main output.
Steps:
1. Use the mouse wheel to double-click on the HDMI/VGA output screen, and the following message box pops up:
2. Use the mouse wheel to double-click on the screen again to switch to the Aux output, or click Cancel to cancel the operation.
3. On the aux output monitor, you can do some basic operation on the live view mode for the Aux output, including recording, live
view, image settings, switch to main monitor, and no operation is allowed for the main output.
4. To switch to the main vide output, click the Main Monitor icon on the toolbar or use the mouse wheel to double-click on the
screen and then click Yes on the pop-up message box.
You can select the Menu Output Mode under Menu > Configuration > General > More Settings to Auto or HDMI/VGA and then
restart the device to switch the main output back to VGA output.

3.2.4 Quick Setting Toolbar in Live View Mode

On the screen of each channel, there is a quick setting toolbar which shows when you left-click mouse on the camera.
Icons Description
Enable Manual
/ Record
PTZ Control
Close
24

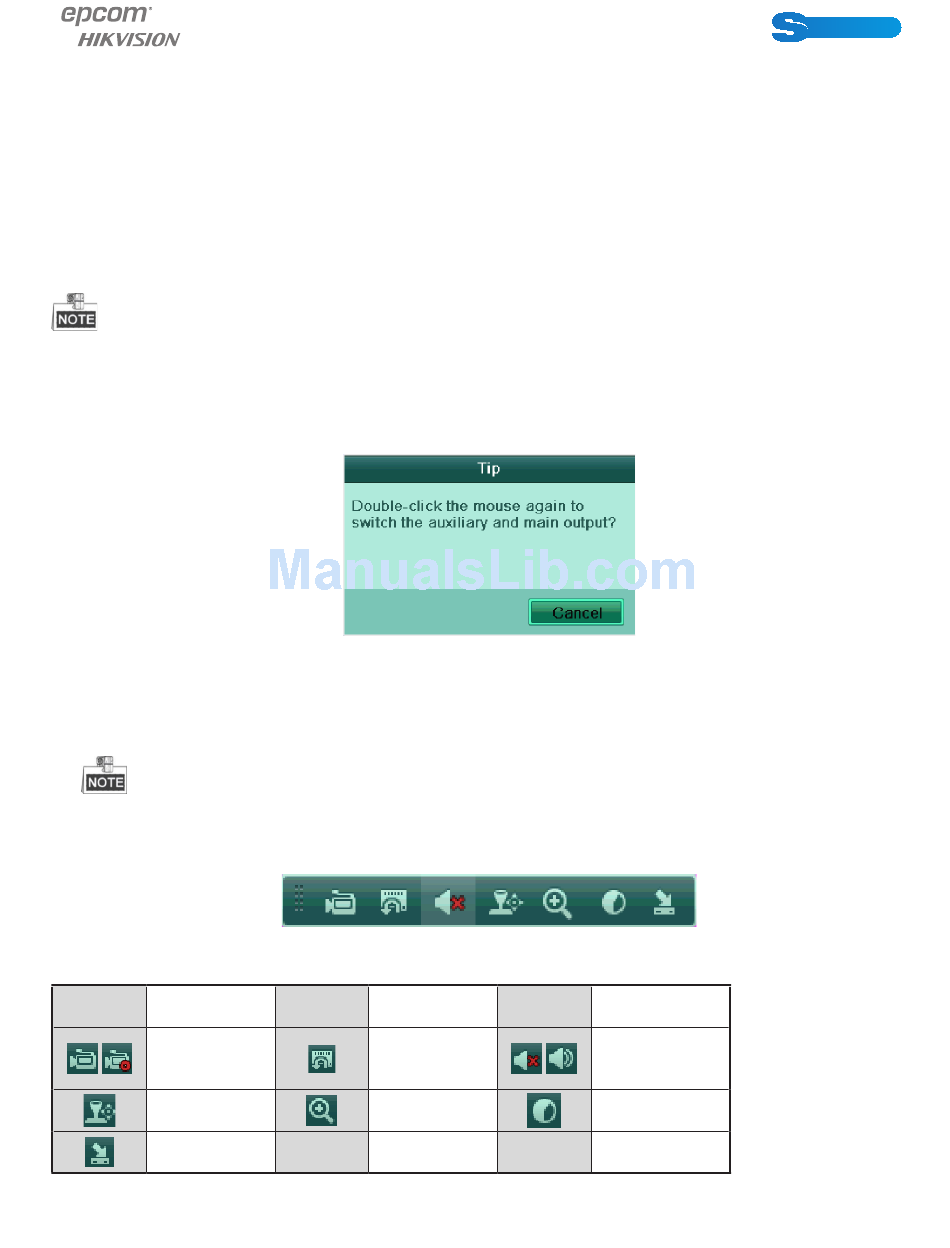

Figure 3.2 Switch Main and Aux Output
Figure 3.3 Quick Settings Toolbar
Table 3.3 Description of Quick Setting Toolbar Icons
Icons Description
Instant Playback
Digital Zoom
Icons Description
Mute/Audio on
/
Image Settings
