3.2 Operations in Live View Mode

In live view mode, the following functions can be realized:
•
Single Screen: showing only one screen on the monitor.
•
Multi-screen: showing multiple screens on the monitor simultaneously.
•
Auto-switch: the screen is auto switched to the next one. And you must set the dwell time for each screen on the configura-
tion menu before enabling the auto-switch.
Menu>Configuration>Live View>Dwell Time.
•
All-day Playback: play back the recorded videos for current day.
•
Start Recording: start all-day normal recording or motion detection recording for all channels.
•
Aux/Main Monitor switch: the DVR will check the connection of the output interfaces to define the main and auxiliary output
interfaces. When both HDMI and VGA are connected, , or either one is connected, the CVBS is used as the auxiliary video
output for live view, recording and PTZ controls; When both HDMI and VGA are not connected, the CVBS is used as the
main video output for live view playback, recording, PTZ control and menu operations.
When the aux output is enabled, you can do some basic operation on the live view mode for the Aux output, while no operation
is allowed for the main output.

3.2.1 Using the Mouse in Live View

In the live view mode, right click on the screen or move the mouse to the bottom of the screen, the main menu button and the
live view toolbar appears:
Icon Name
Main Menu
Single Screen
Multi-screen
Normal Record
Motion Detection
Record
All-day Playback
Aux Monitor
Output Mode
Previous Screen
Next Screen
Start/Stop Au-
/
to-switch
Lock/Unlock
/
23

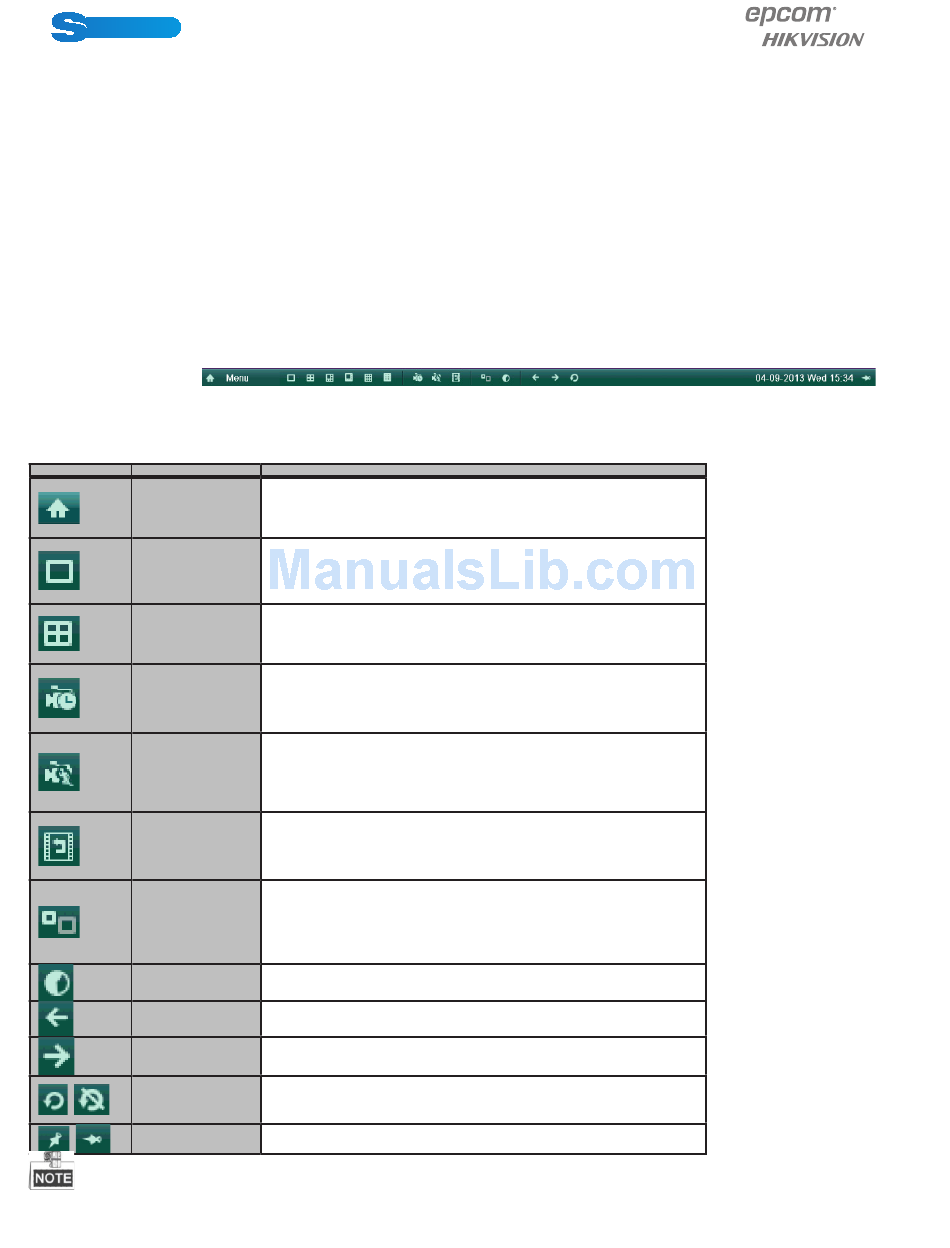

Figure 3.1 Menu under Live View Mode
Table 3.2 Mouse Operation in Live View
Description
Enter the main menu of the system.
Switch to the single full screen live view mode.
Switch to multi-screen live view mode.
The multi-screen icon varies according to the device models.
Start all-day normal recording for all channels
Start motion detection recording for all channels
Play back the record video.
Switch to the auxiliary output mode and the operation for the main
output is disabled.
If you enter Aux monitor mode and the Aux monitor is not connected,
the mouse operation is disabled. You can use the mouse wheel to dou-
ble-click for three times to switch back to the main video output.
Set the video output mode to Standard, Bright, Gentle or Vivid.
Switch to the previous screen.
Switch to the next screen.
Enable/disable the auto-switch of the screens.
The dwell time of the live view configuration must be set before using
Start Auto-switch.
Lock/unlock the toolbar.
.
.
