Configuring OSD Settings

Purpose:
You can configure the OSD (On-screen Display) settings for the camera, including date /time, camera name, etc.
Steps:
1.
Enter the OSD Configuration interface.
Menu > Camera > OSD
2.
Select the camera to configure OSD settings.
3.
Edit the Camera Name in the text field.
4.
Configure the Display Name, Display Date and Display Week by clicking the checkbox.
5.
Select the Date Format, Time Format and Display Mode.
6.
You can use the mouse to click and drag the text frame on the preview window to adjust the OSD position.
7.
Copy Camera Settings
1) If you want to copy the OSD settings of the current camera to other cameras, click the Copy button to enter the Copy
Camera interface.
2) Select the camera (s) to be configured with the same OSD settings. You can also click the checkbox of Analog to select
all cameras.
3) Click the OK button to finish the Copy settings and back to the OSD Configuration interface.
8.
Click the Apply button to apply the settings.
You can also click the Restore to restore the current OSD settings to the default parameters.

Configuring Privacy Mask

Purpose:
You are allowed to configure the four-sided privacy mask zones that cannot be viewed by the operator.
Steps:
1. Enter the Privacy Mask Settings interface.
Menu > Camera > Privacy Mask
2. Select the camera to set privacy mask.
108

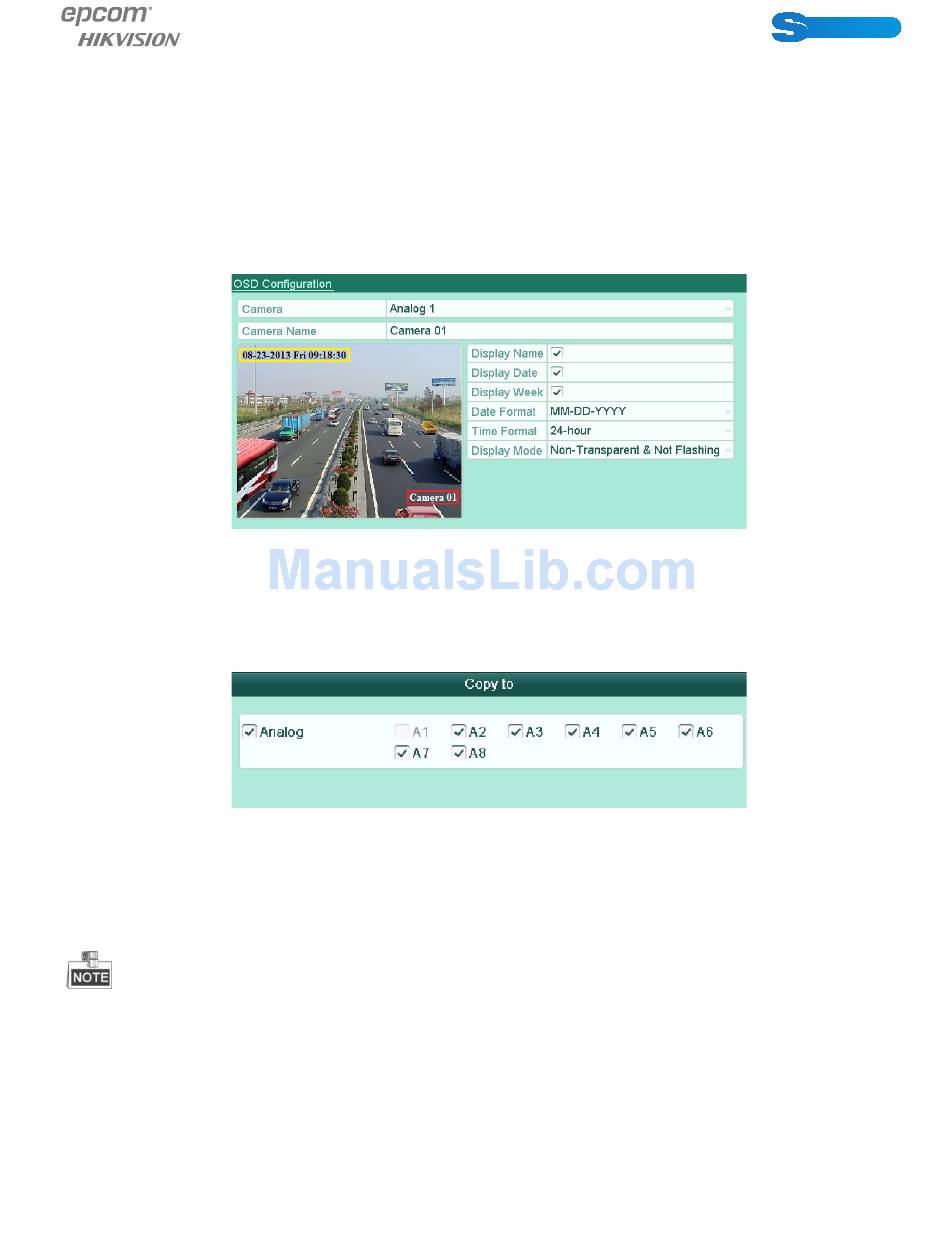

Figure 11.1 OSD Configuration Interface
Figure 11.2 Copy Settings to Other Cameras
